AutoMeter 1302-M Arctic White 5-Gauge Kit with Electric KM/H Speedometer

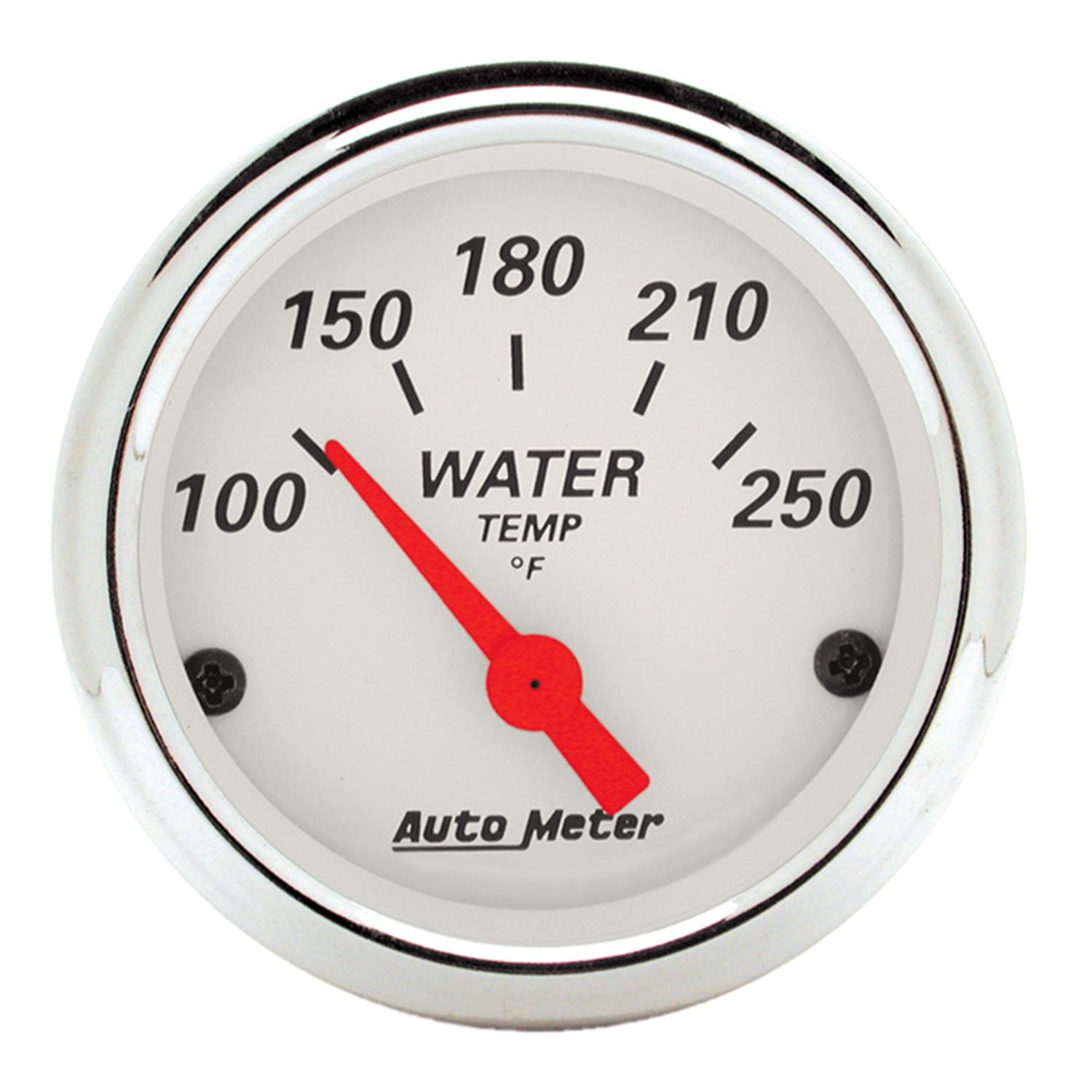

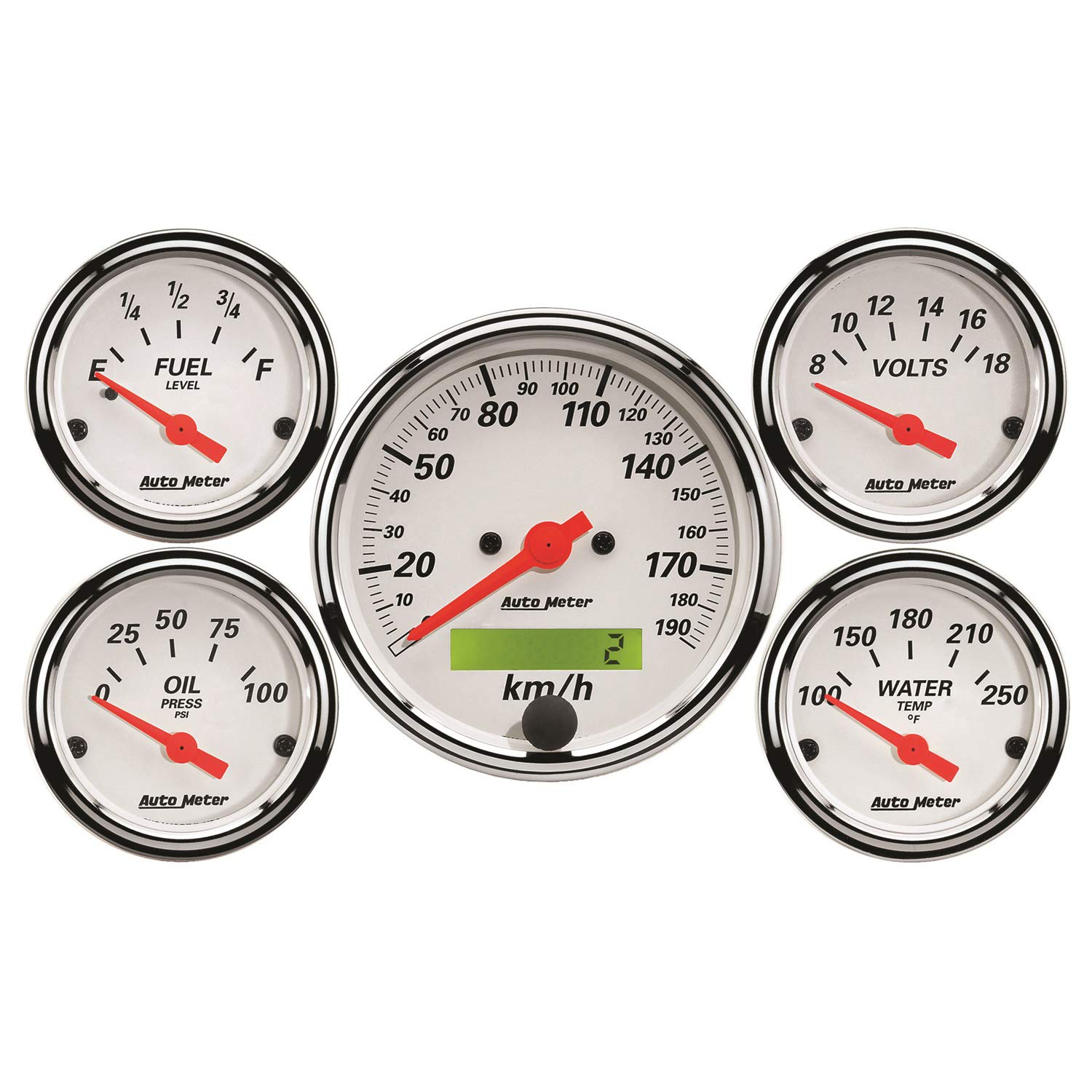

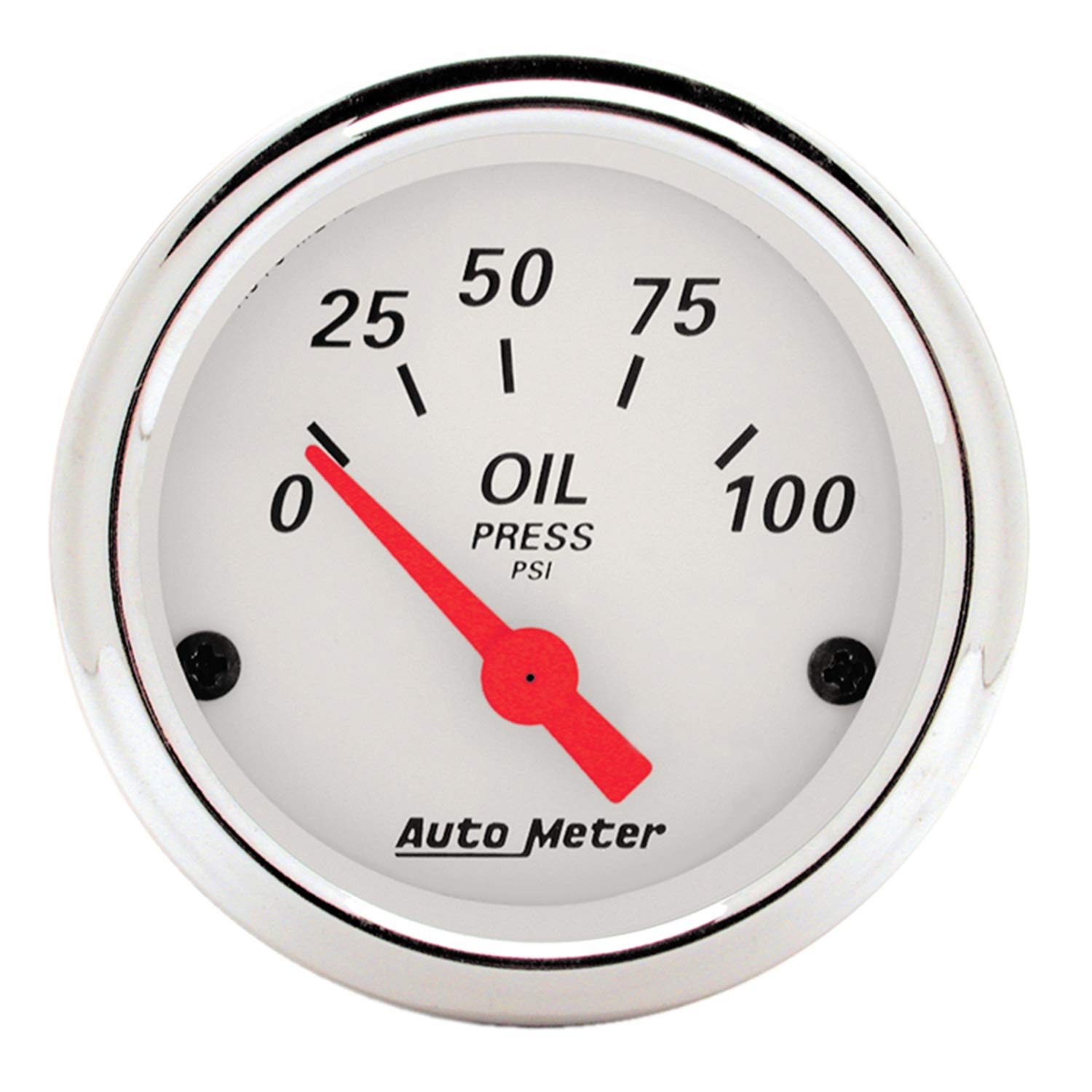

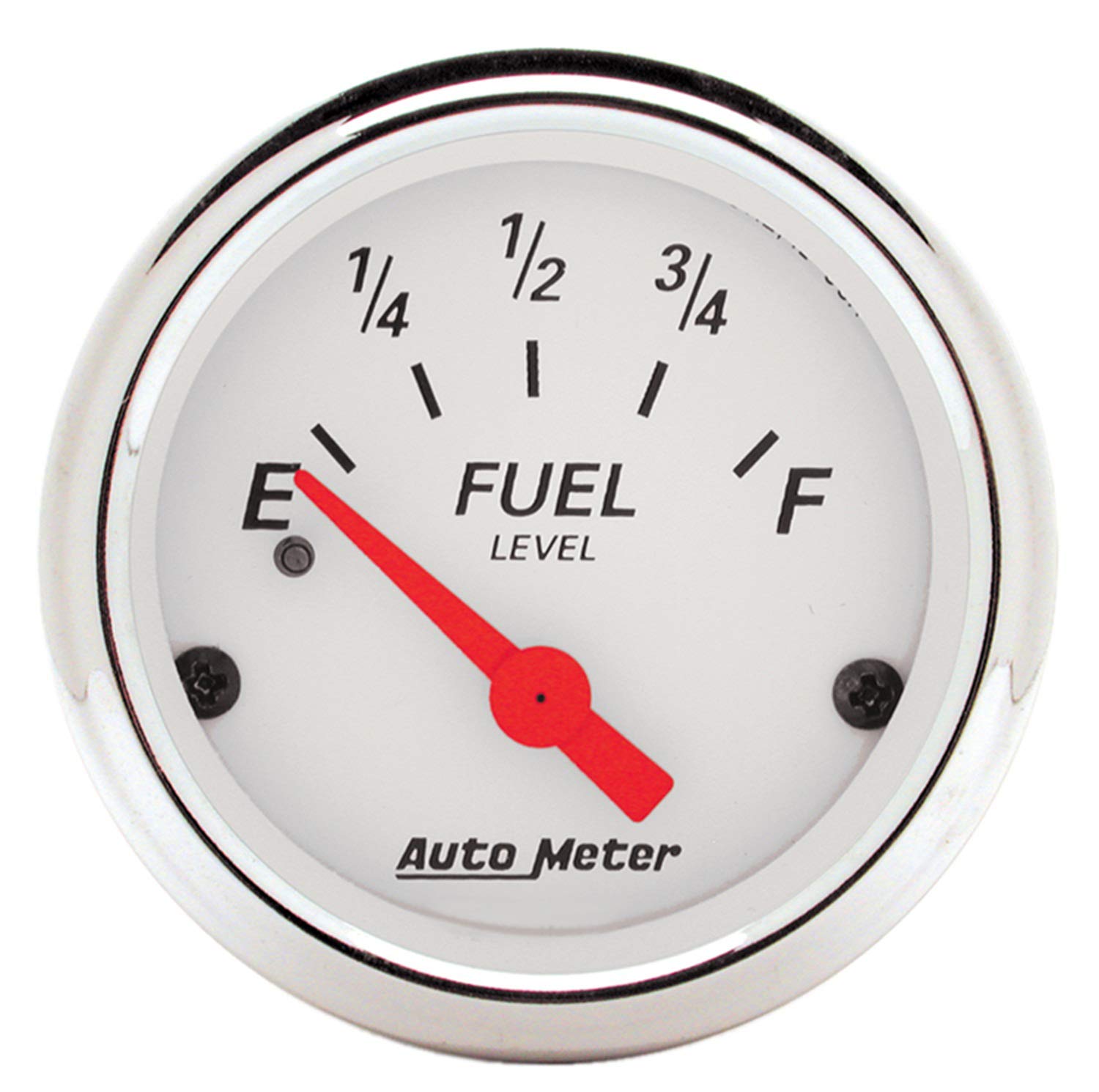

The AutoMeter 1302-M Arctic White 5-piece gauge kit delivers comprehensive vehicle monitoring in a classic street rod style. This complete kit includes a 3 1/8-inch electric speedometer (KM/H), plus four 2 1/16-inch gauges: water temperature, oil pressure, fuel level, and voltmeter. All necessary senders are included for immediate installation.

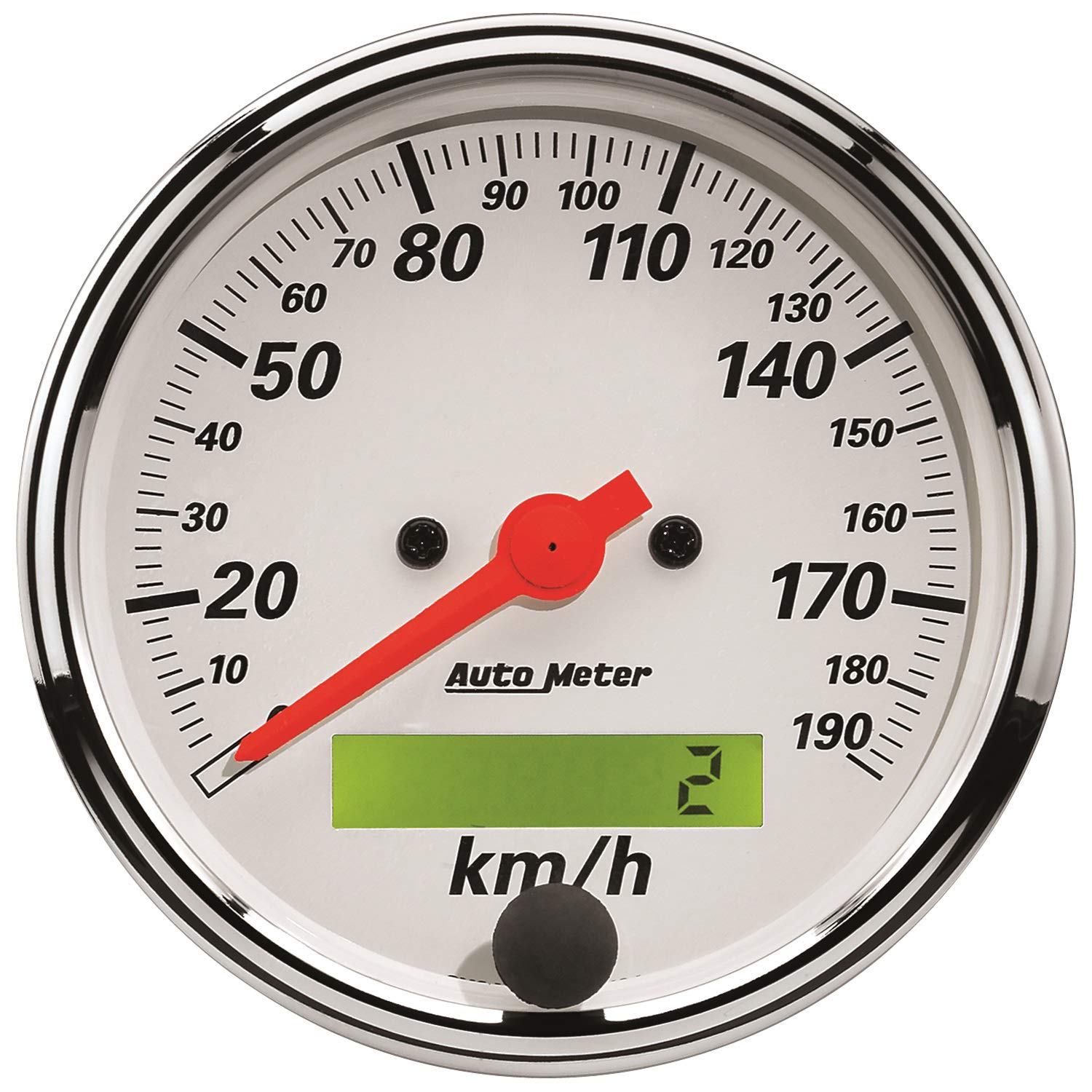

Speedometer Features:

• Electric speedometer reads in kilometers per hour (KM/H) with 190 KPH range
• Simple push-button calibration with 2-mile drive programming
• Compatible with most 2-wire sine wave and 3-wire hall-effect vehicle speed sensors
• Backlit LCD odometer registers up to one million miles with dual resettable trip meters
• No dip switches required—easily reprogrammable for gear ratio or tire size changes

Gauge Construction:

• Air-core electric instruments provide fast, accurate readings while keeping fluids outside the vehicle
• Arctic White dial faces with fluorescent red pointers
• Chrome street rod style bezels with domed clear lenses
• Traditional incandescent lighting illuminates around dial perimeter
• 12 and 16-volt compatible for versatile electrical system integration

Complete Kit Includes:

• Fuel level sender (240Ω empty/33Ω full)
• Oil pressure sender (0-100 PSI range)
• Water temperature sender (100-250°F range)
• 2-wire hall-effect speed sender with 7/8-18 thread, compatible with GM/Chrysler applications
• Sending unit adapters (1/4", 3/8", and 1/2" NPT)
• Bulb and socket assemblies with red and green bulb covers
• Mounting hardware and detailed installation instructions

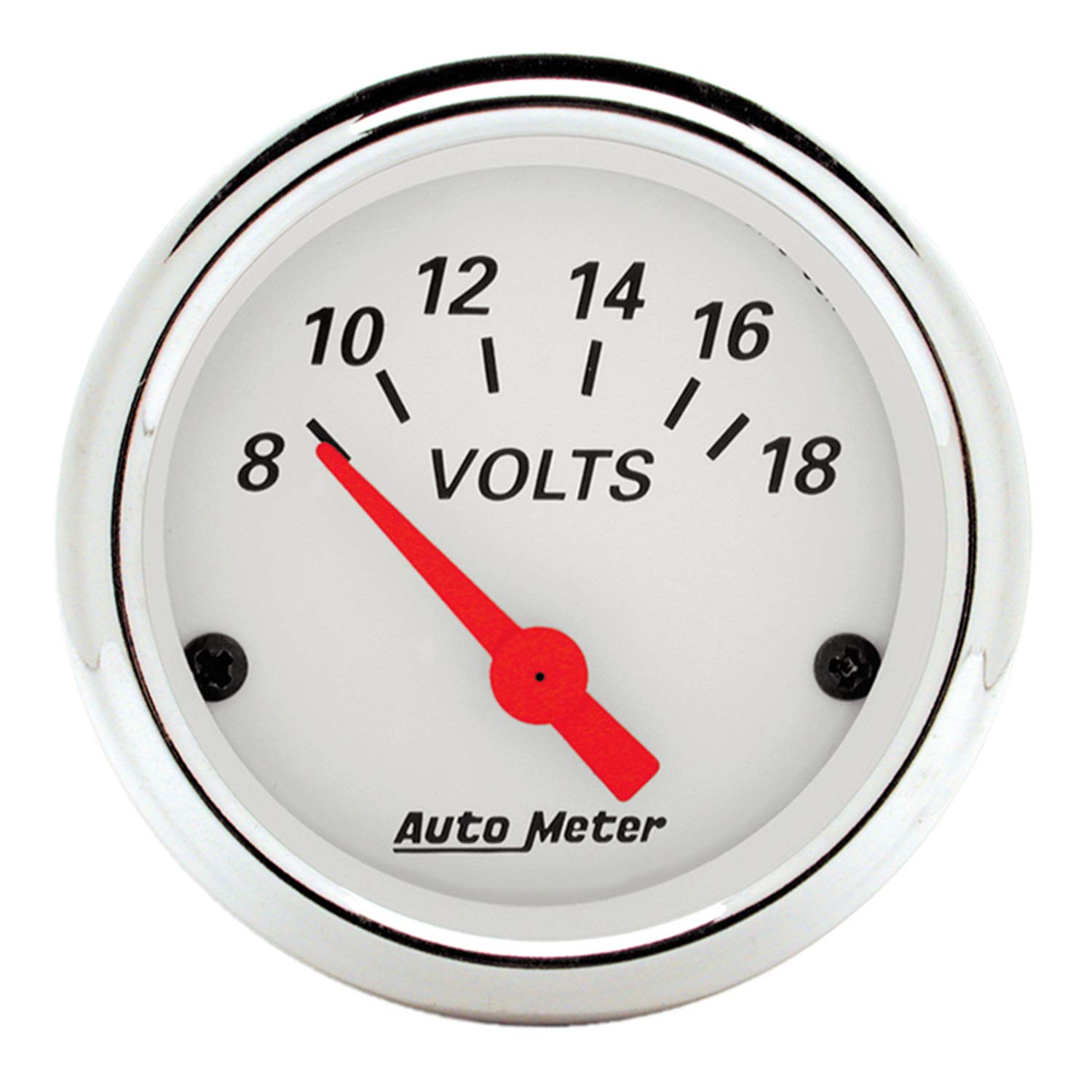

Voltmeter range: 8-18V. Backed by AutoMeter's 1-year limited warranty. Race-proven reliability meets nostalgic styling for street rods, custom builds, and classic restorations.
