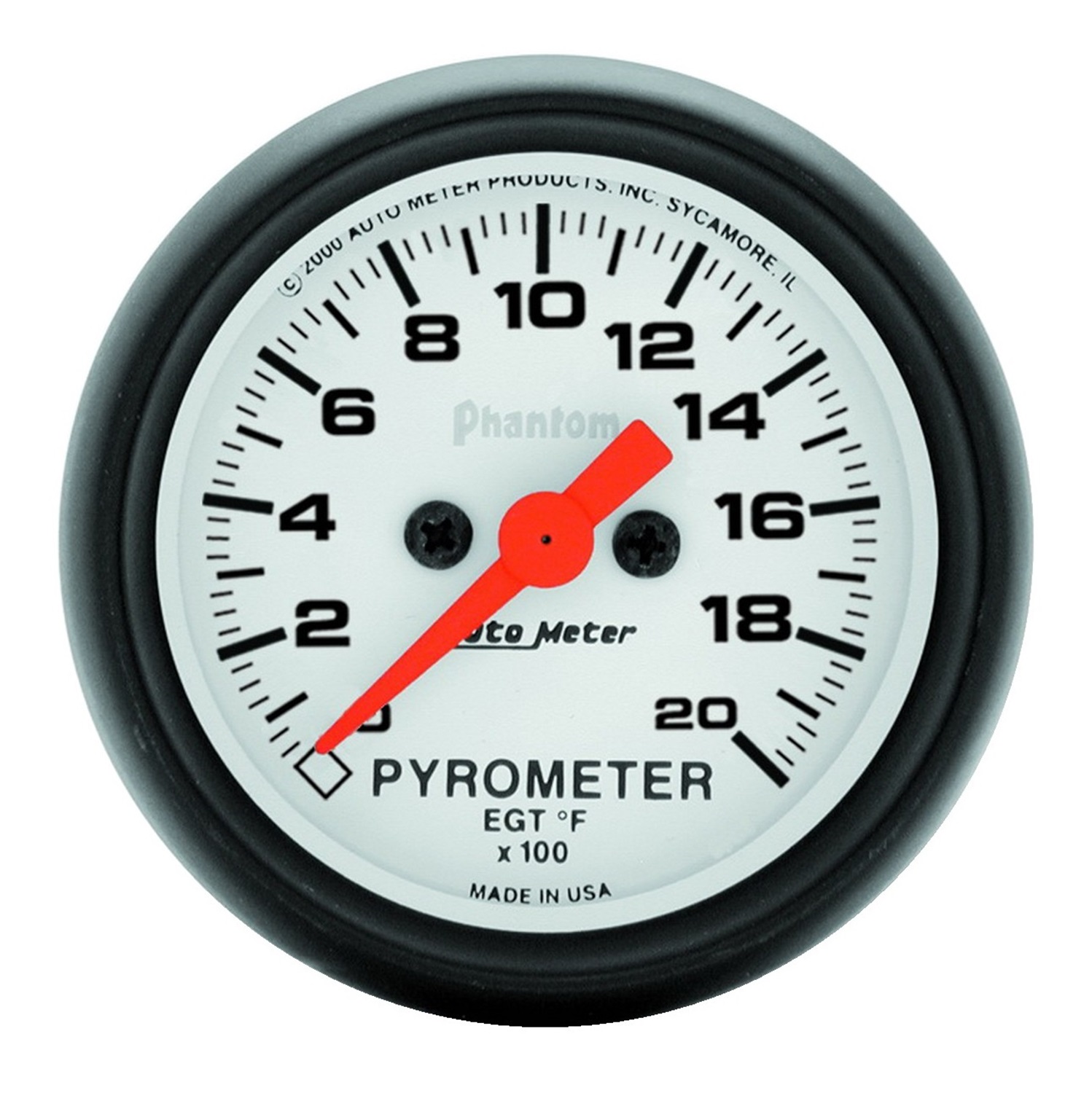

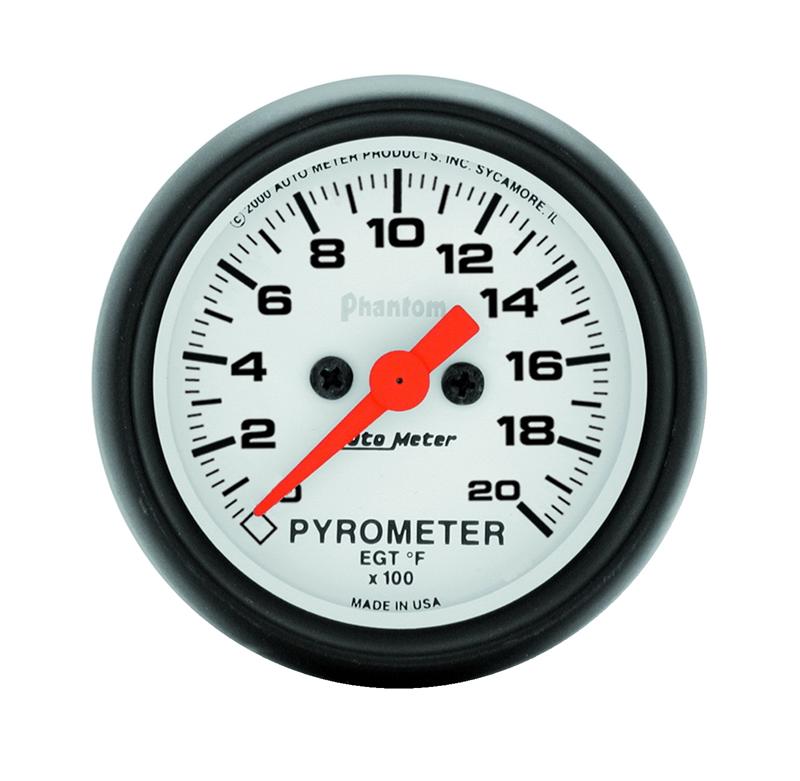

AutoMeter 5745 Phantom 2-1/16" Digital Pyrometer EGT Gauge 0-2000°F

Manufacturer

Part Number

5745
Sale Price

$238.01

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The AutoMeter Phantom 5745 Pyrometer (EGT) gauge delivers precision exhaust gas temperature monitoring critical for high-output diesel and forced induction applications. Featuring AutoMeter's race-proven digital stepper motor technology, this 2-1/16" gauge provides unmatched accuracy through a self-calibration sequence during power-up, ensuring you have the exact data needed to maximize performance while avoiding catastrophic engine damage.

Key Features:

  • Digital stepper motor movement for superior accuracy and smooth needle operation
  • 0-2000°F temperature range ideal for diesel and turbocharged applications
  • Included Type-K thermocouple ensures maximum accuracy and minimum response time
  • Traditional incandescent lighting illuminates around the perimeter with white dial and fluorescent red pointer
  • 12V and 16V compatible for versatile installation in street or race vehicles
  • Phantom series styling with black chrome bezel, white dial, and flat clear lens

Complete Installation Kit Includes:

  • Type-K thermocouple probe
  • Wiring harness with direct plug-in connection
  • Multiple thermocouple installation methods
  • Bulb and socket assembly with red and green bulb covers
  • Mounting hardware and detailed instructions

With a 2-1/4" outer bezel diameter and standard 2-1/16" cup size, this gauge installs easily in any standard gauge pod or panel. The digital stepper motor technology provides the most reliable measurement of exhaust gas temperature available, making it an essential tool for tuning and protecting high-performance engines.

Products specifications

Bezel Color

Black

Size

2.3125 in.

Bezel Style

Super Bezel

Lighting Color

White Incandescent

Lighting Type

Incandescent

Temperature

0-2000° F

Pointer Color

Fluorescent Red

Face Color

White

Prop 65

Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
