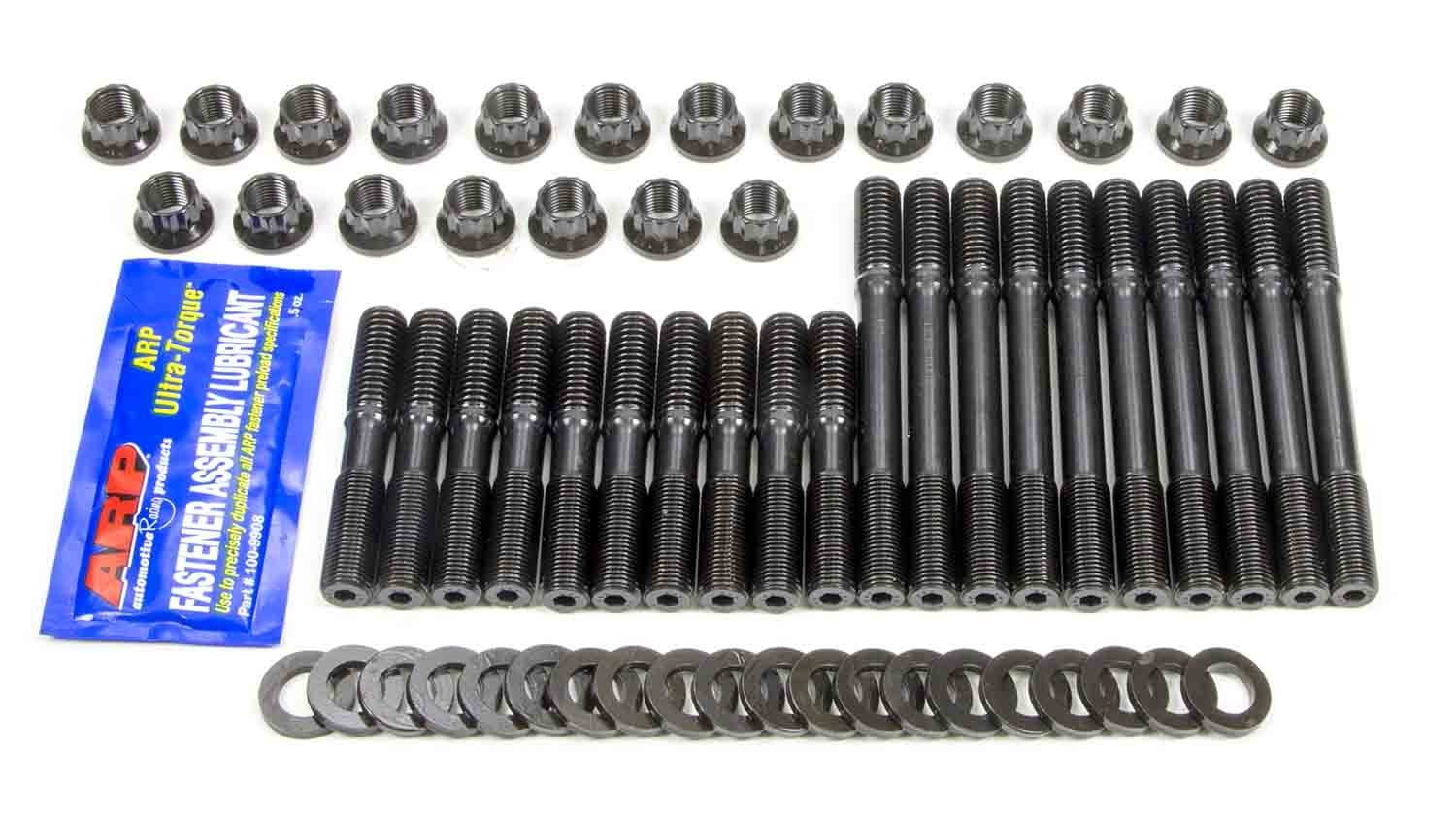

ARP 254-4703 Cylinder Head Stud Kit Chrome Moly - 8740 12-Point

The ARP 254-4703 is a professional-grade cylinder head stud kit engineered for high-performance and competition engines. Manufactured from premium 8740 chrome moly alloy rated at 200,000 psi, these studs deliver superior clamping force and durability far exceeding standard fasteners.

Advanced Manufacturing Process:

• Precision heat-treated vertically in racks to ensure complete and consistent heat penetration throughout each stud
• Centerless ground after heat-treat for exceptional concentricity and straightness, allowing cylinder heads and gaskets to align perfectly during installation
• Thread rolled after heat-treatment for approximately 1000% better fatigue strength compared to pre-heat-treat threading
• Undercut design on shorter studs equalizes stretch characteristics for more consistent clamping force across all fasteners

Key Features:

• 12-point head design for improved accessibility and torque application
• Includes hardened parallel-ground washers for even load distribution and accurate torque readings
• Undercut studs help prevent head gasket failure by compensating for gasket compression
• Superior to aircraft-quality materials with zero defect, zero failure quality standard

ARP Pro Series head studs provide easier engine assembly compared to bolts, with guaranteed proper alignment of cylinder heads and gaskets. Studs also eliminate the twisting forces present when torquing bolts, providing more accurate and consistent clamping force along the vertical axis only. Each stud is individually marked with the ARP stamp as assurance of authenticity and quality.

Note: Studs should be installed finger-tight in a relaxed mode. Re-torque all fasteners after initial engine run-in to compensate for head gasket compression.
