Raybestos 96682R Brake Hardware Kit

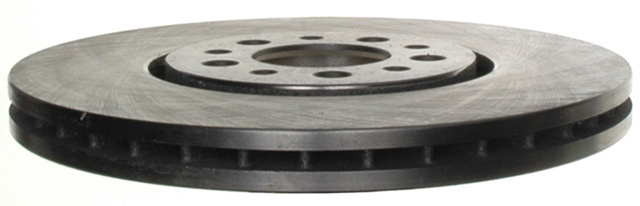

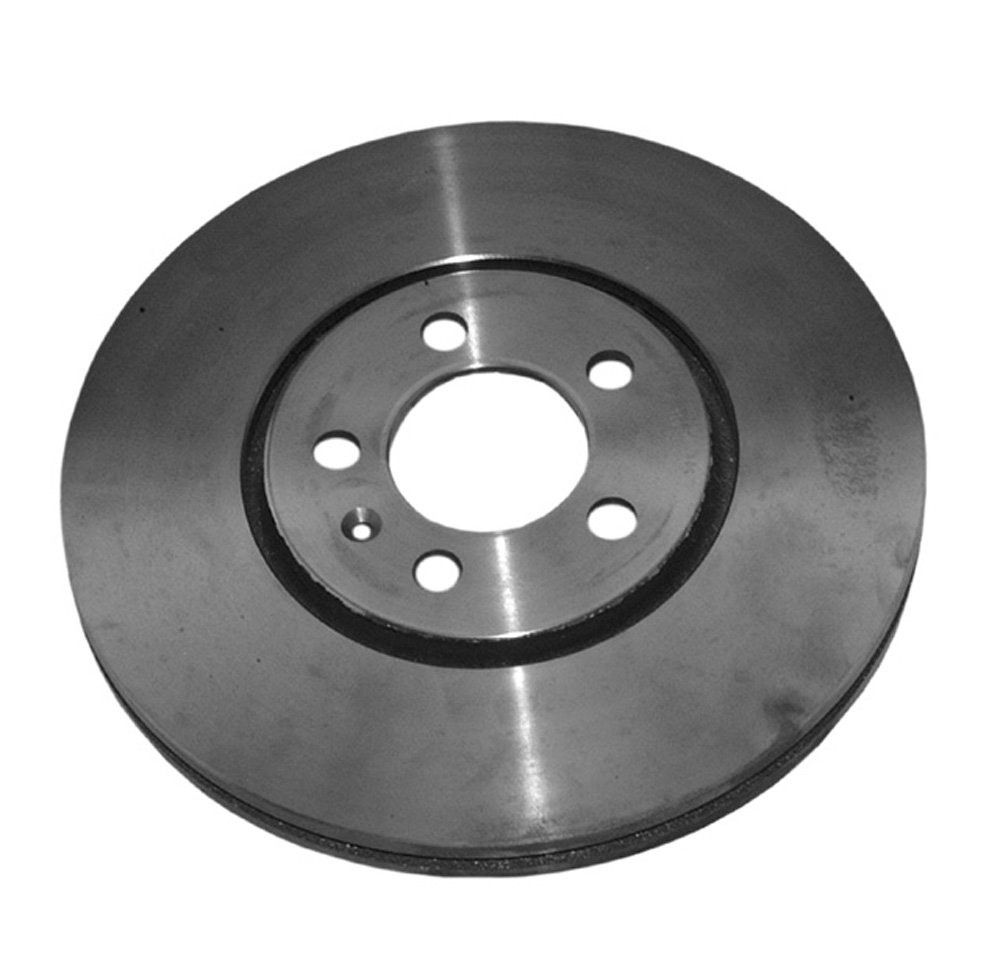

The Raybestos 96682R R-Line disc brake rotor delivers professional-grade braking performance engineered for everyday driving conditions. This vented front rotor features a plain surface design with a 287.53 mm (11.32 inch) diameter and 5-lug bolt pattern, providing reliable stopping power for passenger vehicles.

Key Features:

• Made with G3000-qualified material for OE fit, form, and function
• Meets SAE standard for tensile strength ensuring structural integrity and maximum service life
• Vented design promotes superior heat dissipation to reduce brake fade
• Non-directional ground finish - ready to install right out of the box
• Tight lateral runout of 0.004 inch or less for reduced pedal pulsation
• Minimal thickness variation (less than 0.0005 inch) for quieter braking and extended pad life
• Mill balanced and 100% validated to minimize vibration
• OE-matched vane configuration, weight, and design

Part of the Raybestos R-Line series, this rotor is developed from OE samples and validated to meet TS16949 quality system standards. The precision engineering ensures dependable braking with less noise and longer pad life. Crossreferences to OEM part number Volkswagen 3A0615301A and multiple aftermarket equivalents including Beck/Arnley 083-2691, Brembo 09.6747.10, and Wagner BD125614.
