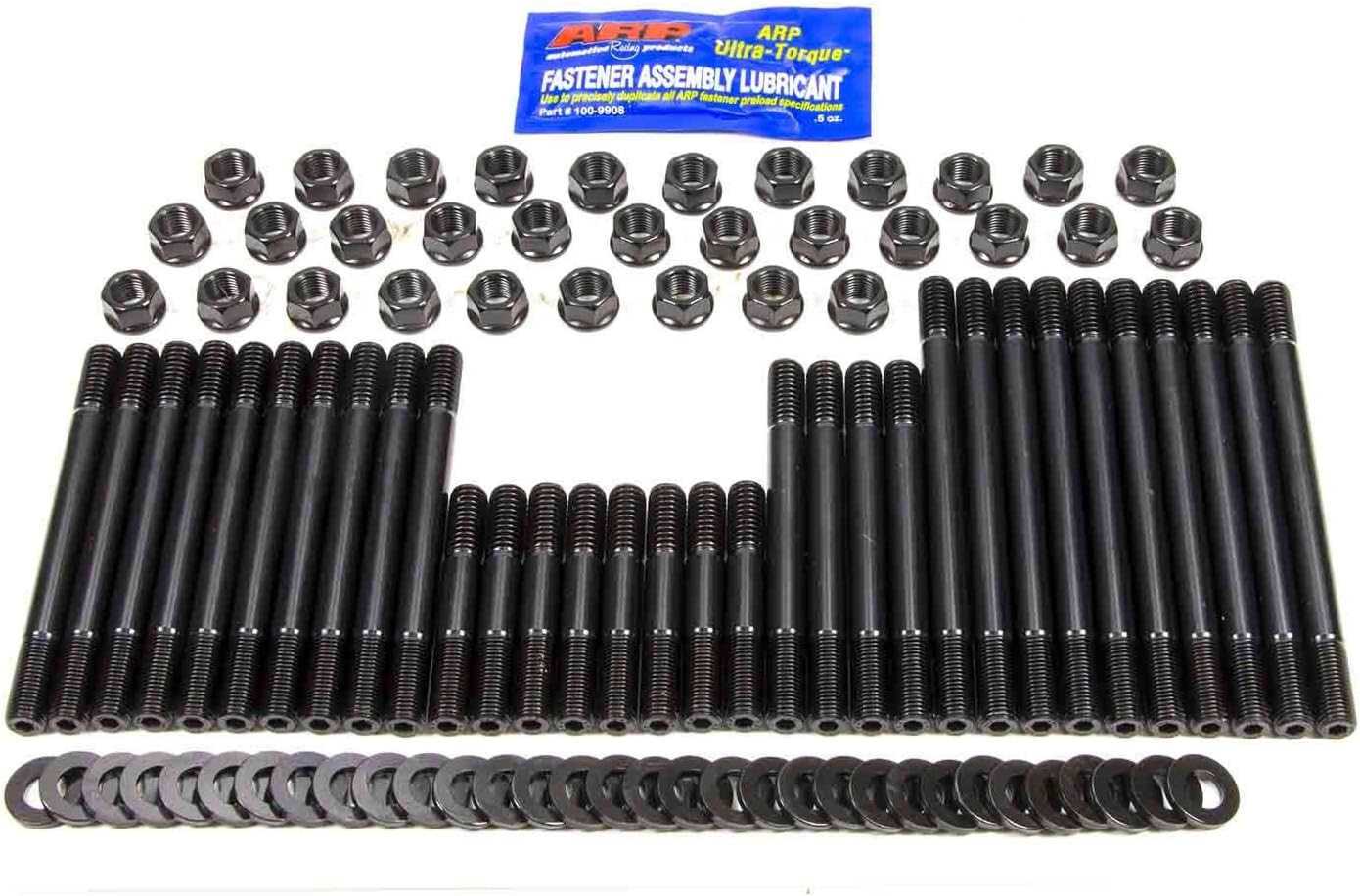

ARP 235-4102 Cylinder Head Stud Kit High Performance Chrome Moly - 8740

The ARP 235-4102 is a premium high-performance cylinder head stud kit engineered for serious engine builders who demand the highest quality fasteners. Part of ARP's renowned Pro Series lineup, this kit utilizes premium grade 8740 chrome moly steel studs rated at 200,000 psi tensile strength—far exceeding aircraft quality standards and 15% stronger than Grade 8 bolts.

Advanced Manufacturing Process:

• Studs are vertically rack heat-treated to ensure complete heat penetration and uniform strength throughout each fastener
• Centerless ground after heat treatment for exceptional concentricity and straightness, ensuring perfect alignment of cylinder heads and gaskets
• Thread rolling performed after heat-treat for approximately 1000% better fatigue strength compared to pre-heat-treat threading
• Undercut design on shorter studs equalizes stretch for more consistent clamping force and helps prevent head gasket failure

Key Features:

• 8740 chrome moly steel construction rated at 200,000 psi
• Hex head design for reliable wrenching
• Includes hardened parallel-ground washers for even load distribution and accurate torque readings
• Wide area flanged head eliminates need for valve train removal during retorquing
• Each stud is stamped with ARP marking as assurance of quality

Advantages of Studs Over Bolts: Head studs provide superior clamping consistency because they stretch only along the vertical axis when torqued, unlike bolts which experience both torsional and tensile loads simultaneously. This results in more accurate torque readings and more uniform clamping pressure across the cylinder head. Studs also simplify engine assembly by allowing the cylinder head and gasket to glide into perfect alignment. For racing applications and frequent engine servicing, studs are the preferred choice of professional engine builders.

Installation Note: Studs should be installed finger-tight in a relaxed mode—never cranked in tightly with a jammed nut. After initial engine operation, re-torque all fasteners to compensate for head gasket compression.
