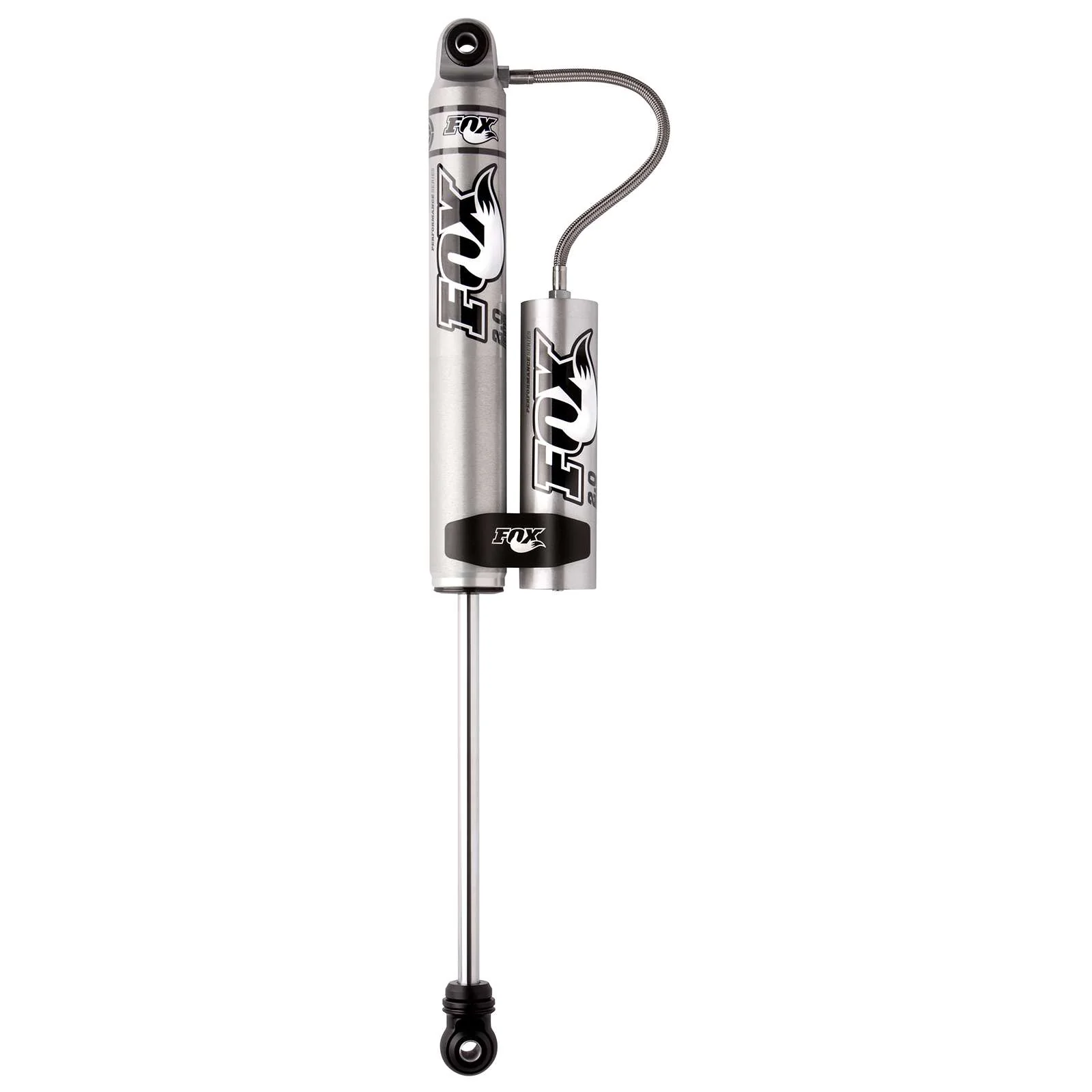

Fox Racing Shocks 985-24-025 Performance Series Reservoir Shock Absorber - 2.0

The Fox Racing Shocks 985-24-025 is a 2.0 Performance Series smooth body reservoir shock absorber engineered to deliver race-proven performance in a bolt-on package. Built with over 35 years of off-road racing technology, this shock transforms ride quality and handling for lifted trucks operating in demanding conditions.

Advanced Heat Dissipation Design:

The one-piece 2.0-inch metal-impacted 6061-T6 aluminum shock body dissipates heat significantly faster than conventional steel body shocks, maintaining consistent damping performance. The clear anodized finish resists corrosion and provides long-lasting durability. The external 2.0-inch aluminum reservoir increases oil and nitrogen capacity while adding a distinctive race-inspired appearance.

Race-Developed Damping Technology:

• High-flow damping piston with application-specific valving for predictable ride quality
• Extended length of 28.8 inches, collapsed length of 17.2 inches, with 11.6 inches of stroke travel
• 5/8-inch hard chrome-plated heat-treated alloy steel shaft for durability
• JM92 Advanced Suspension Fluid optimized for variable temperature performance
• Internal Floating Piston (IFP) design separates oil from high-pressure nitrogen gas
• Redundant sealing system with main seal, wiper seal, and scraper seal

Premium Construction:

All components including the reservoir mounting clamp are CNC-machined from black anodized 6061-T6 billet aluminum. Quiet nitrile rubber bushings allow increased suspension articulation while reducing noise. Top mount features SM3 configuration (0.500-inch hole), bottom mount uses ES7 configuration (0.560-inch hole).

What's Included:

This shock absorber is sold individually and includes all necessary mounting hardware, bushings, washers, nuts, and the billet aluminum reservoir clamp. Factory shock mounting bolts are reused during installation. Designed for vehicles with 4-6 inch lift applications.
