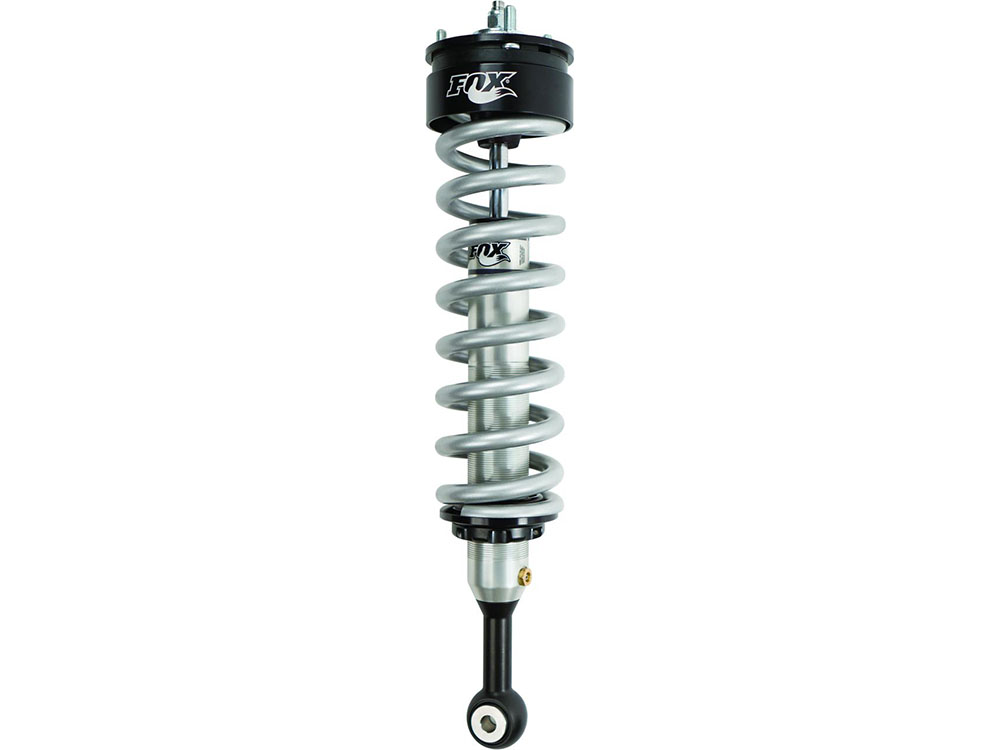

Fox Racing Shocks 985-02-002 Performance Series Coilover IFP Shock - 2.0

The Fox Racing Shox 2.0 Performance Series Coilover IFP Shock delivers race-proven suspension technology in a bolt-on package designed for trucks and SUVs. This high-performance shock features an internal floating piston (IFP) monotube design that separates shock oil from the nitrogen-charged gas chamber, ensuring consistent damping performance and fade-free operation even under the most demanding conditions.

Construction and Materials:

• 2.0-inch diameter impact-extruded and CNC-machined 6061-T6 aluminum body dissipates heat three times faster than steel and resists rust
• 5/8-inch hard chrome-plated heat-treated alloy steel shaft for exceptional durability
• Clear-anodized body finish with black-anodized CNC-machined billet aluminum components
• Large diameter heavy-duty spherical bearings for smooth articulation
• Redundant sealing pack system with main seal, wiper seal, and scraper seal

Performance Features:

• Race-developed high-flow piston design with vehicle-specific valving maximizes on-road comfort and off-road handling
• JM92 Advanced Suspension Fluid provides optimal performance across variable temperatures
• Adjustable locking preload rings allow precise ride height and spring preload adjustment
• Includes coilover spring with vehicle-specific rate for optimal performance
• Extended length: 22.23 inches; Collapsed length: 17.60 inches; Shock travel: 4.625 inches
• Single-adjustable design with 0.0 to 2.0 inch height adjustment range

Mounting:

• Upper mount: Stud style
• Lower mount: Eyelet with spherical bearing
• Direct bolt-on installation to factory mounting locations
• Includes necessary hardware for installation

This shock is 100 percent rebuildable and re-valveable, allowing for nitrogen pressure adjustment, compression valving changes, and rebound valving modifications when factory serviced. The Fox 2.0 Performance Series represents the perfect balance of race-proven technology and everyday drivability, transforming your truck or SUV's suspension performance both on the highway and off-road.
