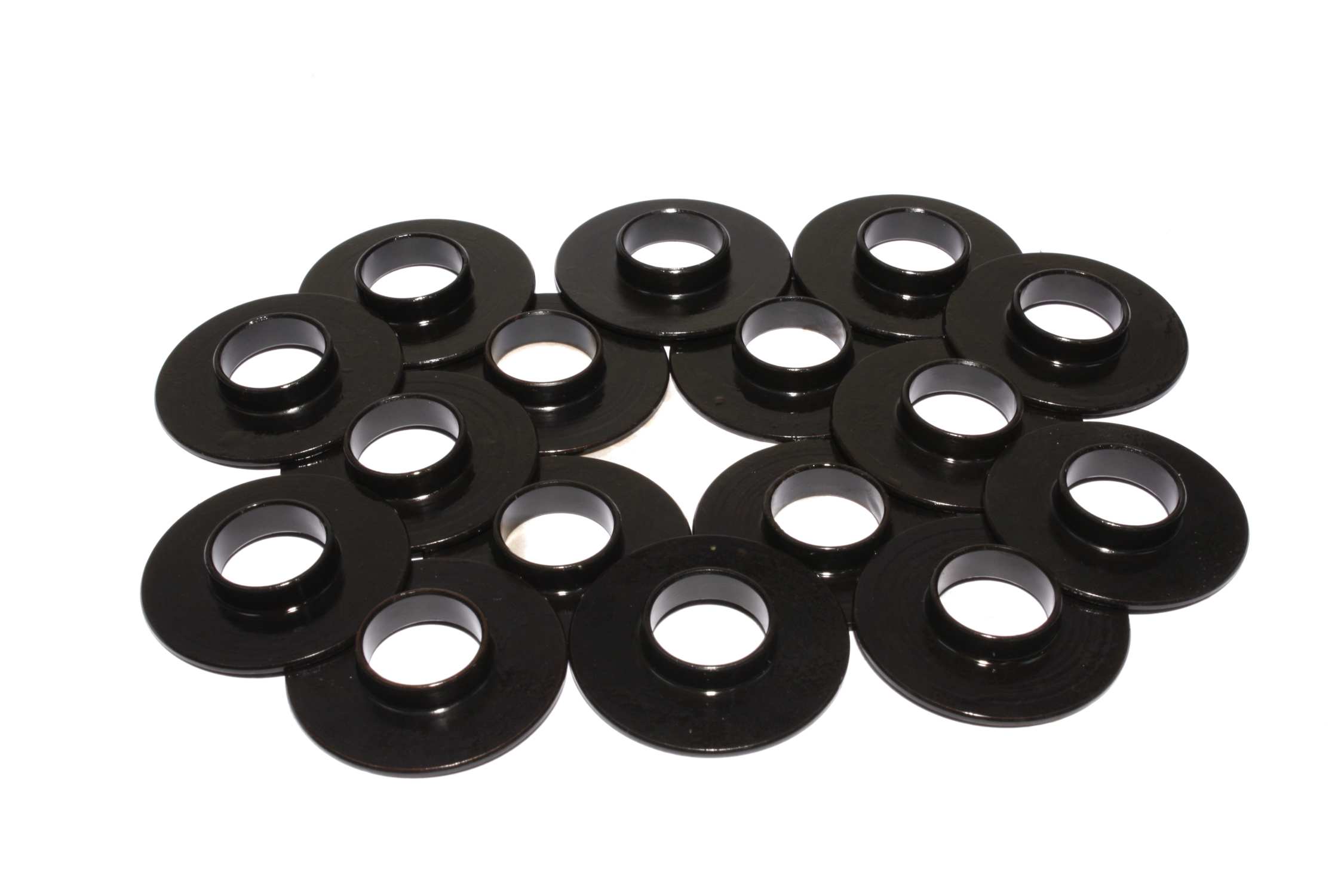

COMP Cams 4712-16 Valve Spring Locator Set - 1.400" OD .520" ID .060" Thick (16pc)

Part of: COMP Cams Valve Spring Locator OD ID Thick

Other options in this family: COMP Cams 4772-16 COMP Cams 4700-16 COMP Cams 4771-16 COMP Cams 4705-16 COMP Cams 4702-16

Manufacturer

Picture for manufacturer COMP Cams

Part Number

4712-16
7 reviews
Sale Price

$83.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 4712-16 valve spring locator set provides precise spring positioning for high-performance engine builds. These precision-machined steel locators ensure proper valve spring alignment and prevent spring walk during high-RPM operation.

Specifications:

  • Outside Diameter (OD): 1.400 inches
  • Inside Diameter (ID): 0.520 inches
  • Thickness: 0.060 inches
  • Quantity: 16 pieces per set
  • Material: Precision-machined steel

Key Features:

  • Maintains consistent valve spring position and centering
  • Reduces side loading on valve stems
  • Essential for engines with dual valve springs or high lift camshafts
  • Compatible with COMP Cams valve springs and most aftermarket applications

Spring locators are critical components in performance valve train assemblies, preventing coil bind and ensuring maximum valve spring life. This 16-piece set provides enough locators for a complete V8 engine build.

Products specifications

inside Diameter

.520"

Locator Inner Diameter

0.52

Spring Inner Diameter

0.69

Outside Diameter

1.4

Locator Outer Diameter

1.4

Locator Thickness

.060"

Spring Inside Diameter

.690"

AMAZON ASIN

B000N5OMI8

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
