Crane Cams 730-0091 Ps91 Performance Coil

Manufacturer

Crane Cams

Picture for manufacturer Crane Cams 11801C-1 Rocker Arms - Ch. 262-400 V8 Nitro-Carb Stamped 1.5 X-Long Pkg/1

Part Number

730-0091
9 reviews
04/25/2034 11:41 AM
Sale Price

$85.93

Out of Stock

Notify me when available
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

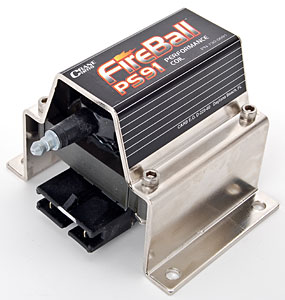

Crane Cams 730-0091 Ps91 Performance Coil

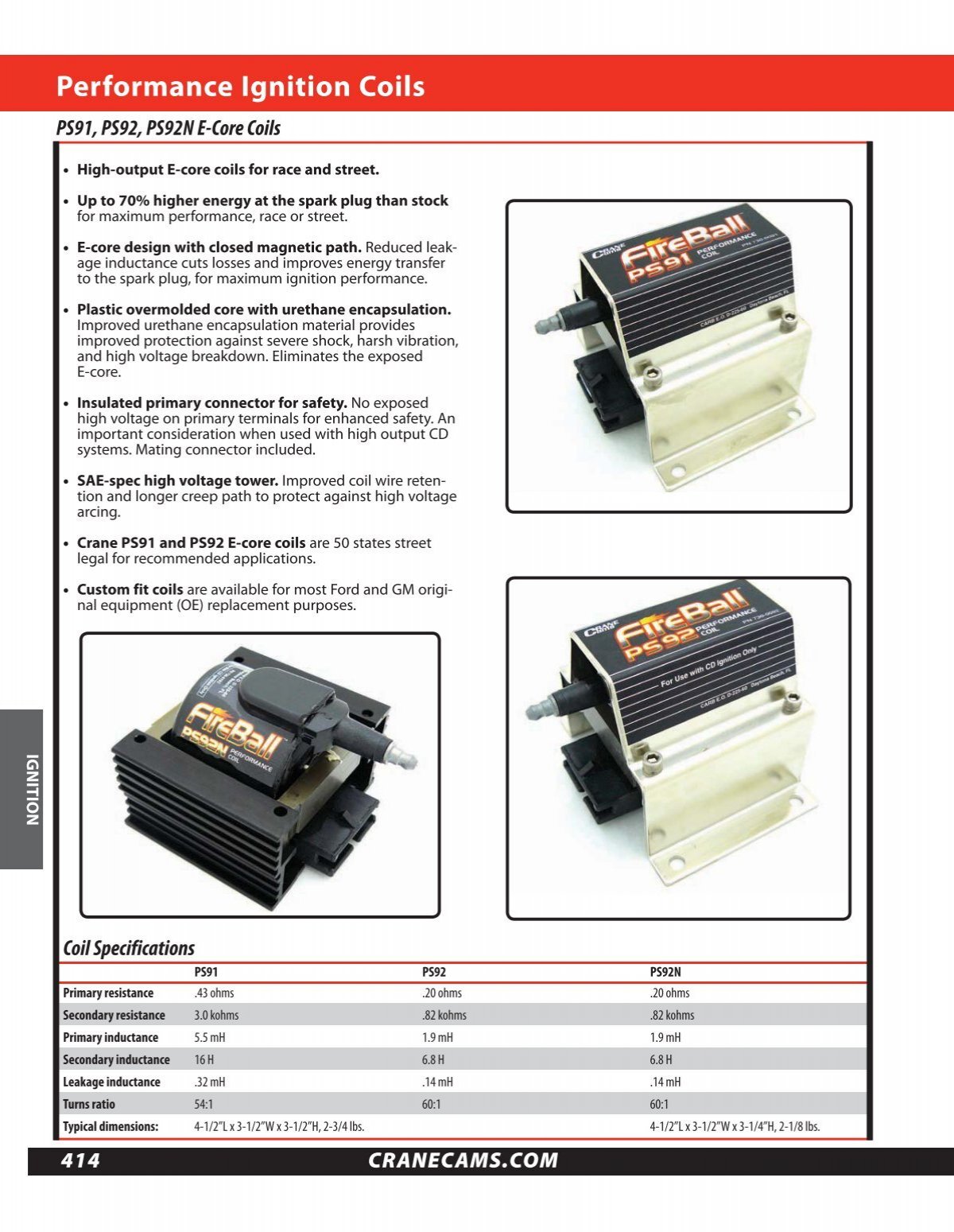

The Crane PS-91 Performance Ignition Coil features high output E-core designed coils with magnetic path for race and street applications. Reduced leakage inductance cuts losses and improves energy transfer to the spark plug, for maximum ignition performance. The coil has plastic overmolded core with urethane encapsulation. Improved urethane encapsulation material provides better protection against severe shock, harsh vibration, and high voltage breakdown. An insulated primary connector is included for safety and there is no exposed high voltage on primary terminals for enhanced safety. It's improved coil wire retention and longer creep path protect against high voltage arcing. PS-91 E-core coils are 50 states street legal for recommended applications.

  • Turns ratio of the coil is 54:1
  • Dimension of the coil is 4-1/2" length, 3-1/2" width and 3-1/2" height
  • Primary and secondary inductance is 5.5 mH, 16 H
  • Up to 70 percent higher energy at spark plug than stock coils
  • Primary and secondary resistance is 0.43 ohms, 3.0 kohms

Products specifications

Coil Color

Nickel plated

Coil Shape

Square

Coil Style

E-core

Coil Wire Attachment

Male/HEI

Coil Wire Included

No

Height (in)

3.500 in.

Inductance

5.5 mH

Length (in)

4.500 in.

Peak Current

100 mA

Primary Resistance

0.430 ohms

Quantity

Sold individually.

Secondary Resistance

3.0K ohms

Spark Duration

2,800 uS

Turns Ratio

54:1

Width (in)

3.500 in.
