COMP Cams 4702-1 OD Valve Spring Locator Cup 1.730" OD .640" ID .060" Thick

Part of: COMP Cams Valve Spring Locator OD ID Thick

Other options in this family: COMP Cams 4772-16 COMP Cams 4700-16 COMP Cams 4771-16 COMP Cams 4705-16 COMP Cams 4702-16

Manufacturer

Picture for manufacturer COMP Cams

Part Number

4702-1
9 reviews
Sale Price

$12.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

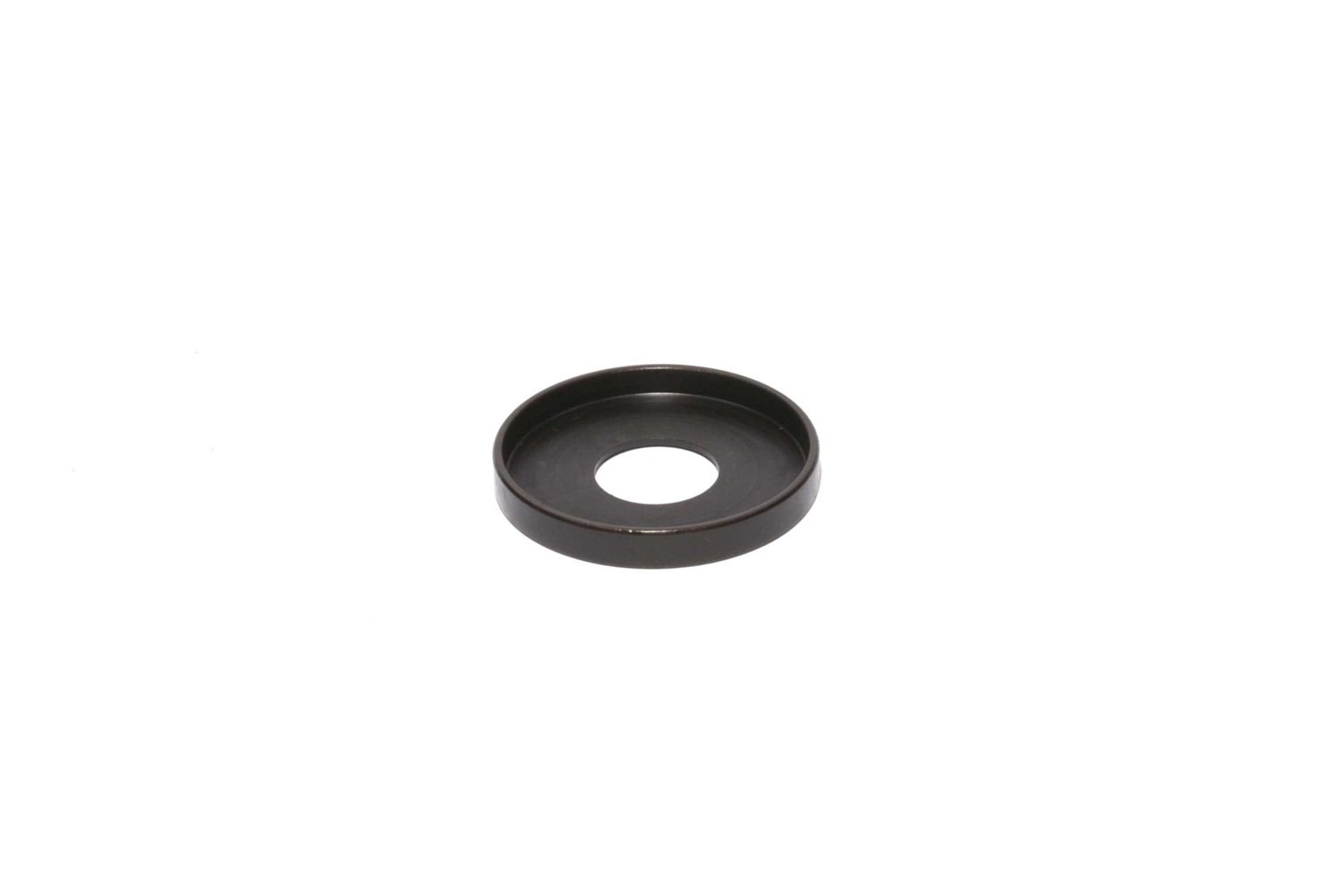

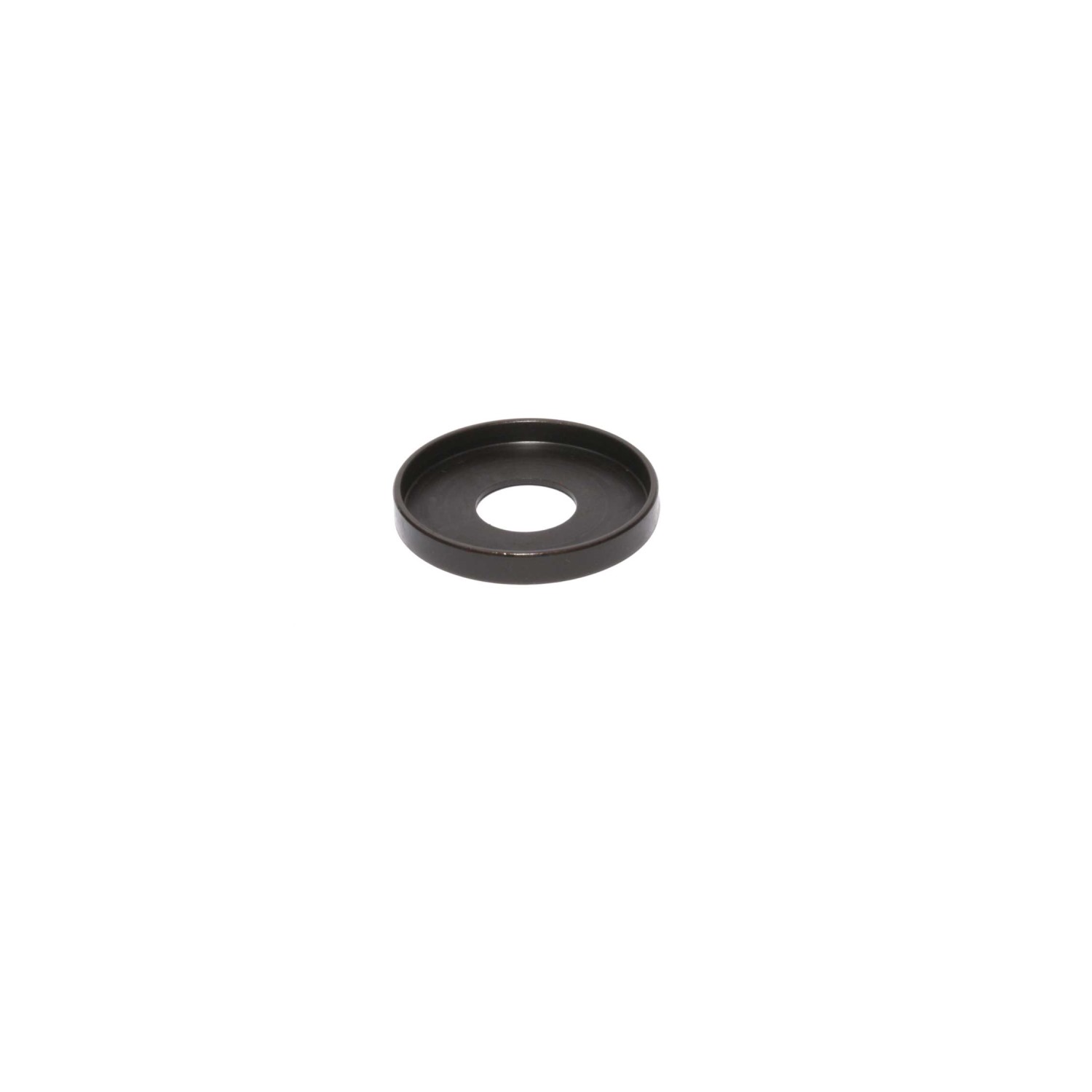

The COMP Cams 4702-1 is a hardened steel alloy OD (outside-diameter locating) valve spring locator cup designed to replace standard shims that cannot withstand the extreme spring pressures and high RPM demands of performance and race engines. This precision-machined locator cup seats and holds the valve spring in place while protecting the cylinder head and underlying shim from wear.

Key Features:

  • Construction: Hardened steel alloy for durability under high-RPM, high-pressure valvetrain conditions
  • Outside Diameter (OD): 1.730"
  • Inside Diameter (ID): 0.640"
  • Locator Thickness: 0.060"
  • Spring O.D. Fitment: 1.650" valve springs
  • Locating Style: Outside locating shoulder (OD cup style)
  • Precision machined in-house for consistent thickness and accurate inside/outside diameters
  • Compatible with factory and aftermarket cylinder head dimensions
  • Sold individually (quantity of 1)

These locators are part of COMP Cams' extensive valvetrain component lineup and are engineered to work seamlessly with their matching valve spring offerings.

Products specifications

inside Diameter

.640"

Locator Inner Diameter

0.64

Spring Outer Diameter

1.65

Locator Outer Diameter

1.73

Locator Thickness

.060"

Spring Inside Diameter

1.650"

Outside Diameter

1.73

AMAZON ASIN

B000P5GCKM

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
