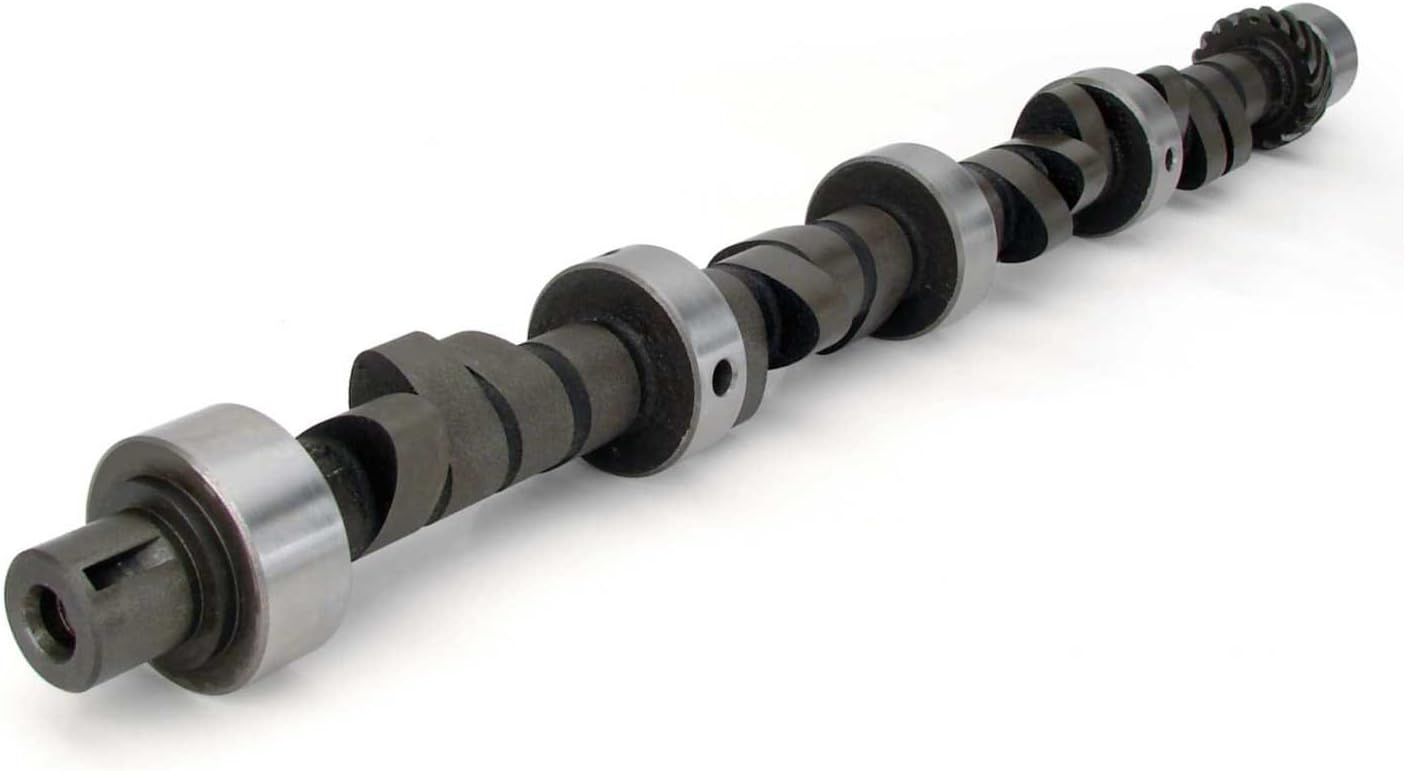

COMP Cams 20-230-4 Xtreme Energy Hydraulic Flat Tappet Camshaft Chrysler - 273-360

(Jeep Grand Cherokee 1993-98, Grand Wagoneer 1993; Dodge Durango 1998-2002, Ram 2500 1994-2002, Ram 1500 1994-2002, Dakota 1989-2002 + 134 more models)

Part of: COMP Cams Xtreme Energy Hydraulic Flat Tappet Camshaft Ford

Other options in this family: COMP Cams 31-238-3 COMP Cams 35-238-3 COMP Cams 35-242-3 COMP Cams 51-222-4 COMP Cams 31-242-3

Manufacturer

Picture for manufacturer COMP Cams

Part Number

20-230-4
5 reviews
Sale Price

$309.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams Xtreme Energy 20-230-4 camshaft delivers aggressive performance for small block Chrysler 273-360 cubic inch engines. This hydraulic flat tappet camshaft features a 236/242 duration split designed to maximize mid-range torque and top-end horsepower for street/strip applications.

Camshaft Specifications:

  • Advertised Duration: 280°/286° intake/exhaust
  • Duration at .050": 236°/242° intake/exhaust
  • Valve Lift: .507"/.510" intake/exhaust (with 1.5 rocker ratio)
  • Lobe Separation Angle: 110°
  • Recommended RPM Range: 2,000-6,000 RPM
  • Recommended Valve Springs: COMP Cams 26918 or equivalent

Key Features:

  • Xtreme Energy lobe profile for improved throttle response and power
  • Hydraulic flat tappet design for reliable street performance
  • Optimized for street/strip applications with manual or automatic transmissions
  • Works with stock or aftermarket cylinder heads
  • Requires 2,500+ stall converter for automatic transmissions
  • Computer-controlled lobe grinding for precision accuracy

This camshaft is ideal for enthusiasts seeking a noticeable performance upgrade with a lopey idle and strong acceleration. Recommended for engines with compression ratios of 9.5:1 or higher. Requires aftermarket valve springs and proper break-in procedures with COMP Cams break-in oil and assembly lube.

Products specifications

Fits

Jeep Grand Cherokee 1993-98, Grand Wagoneer 1993; Dodge Durango 1998-2002, Ram 2500 1994-2002, Ram 1500 1994-2002, Dakota 1989-2002, Charger 1966-78, Challenger 1970-74, Ram 3500 1994-2002, Dart 1964-77, 1980-82 + 130 more models

Advertised Exhaust Duration

280

Grind Number

XS274S

Lifter Type

Solid Flat Tappet

Engine Family

Chrysler 273-360 c.i. 8 Cylinder (1964-2002)

Intake Valve Lift

0.502

Exhaust Valve Lift

0.511

Camshaft Material

Cast Iron

Cam and Lifter Kit Upgrade

CL20-230-4

K-Kit Upgrade

K20-230-4

Cam Type

Solid Flat Tappet

AMAZON ASIN

B000P5952O

Usage

Street/Performance

Assembly Lubricant Included

Yes

Camshaft Gear Attachment

1-Bolt

Lifters Included

No

LOBE SEPARATION

110

Valve Springs Required

Yes

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Advertised Intake Duration

274

Basic Operating RPM Range

2,200-6,200

Exhaust Duration at .050 inch Lift

242

Intake Duration at .050 Inch Lift

236

Camshaft Series

Xtreme Energy
