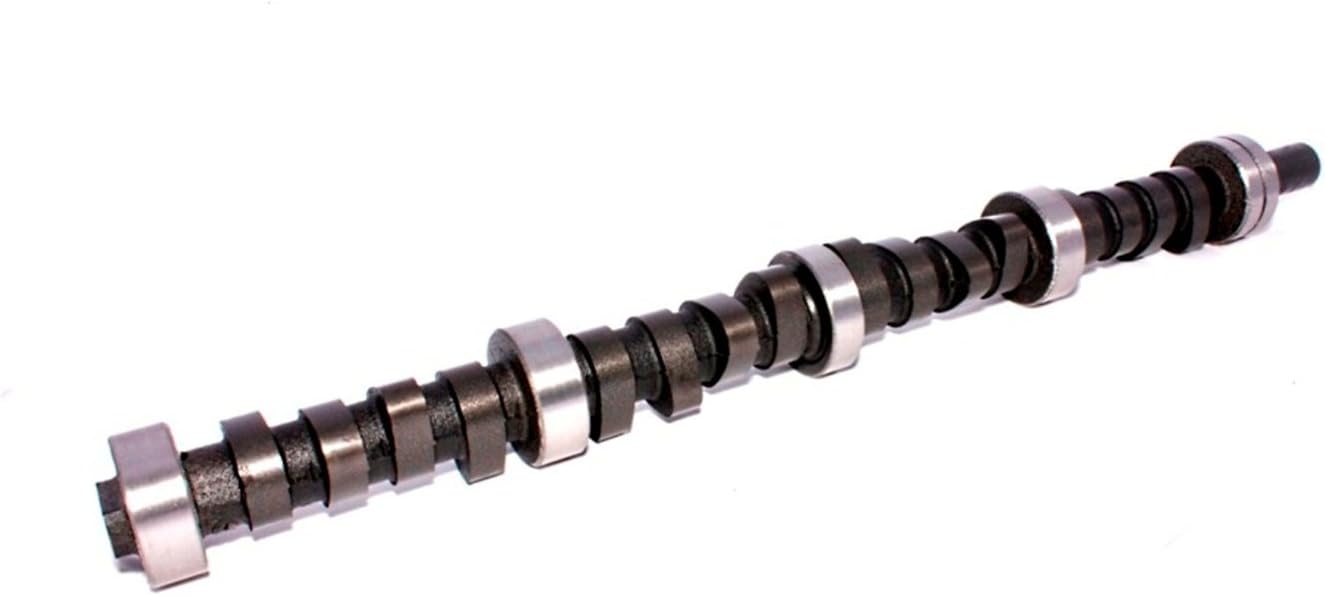

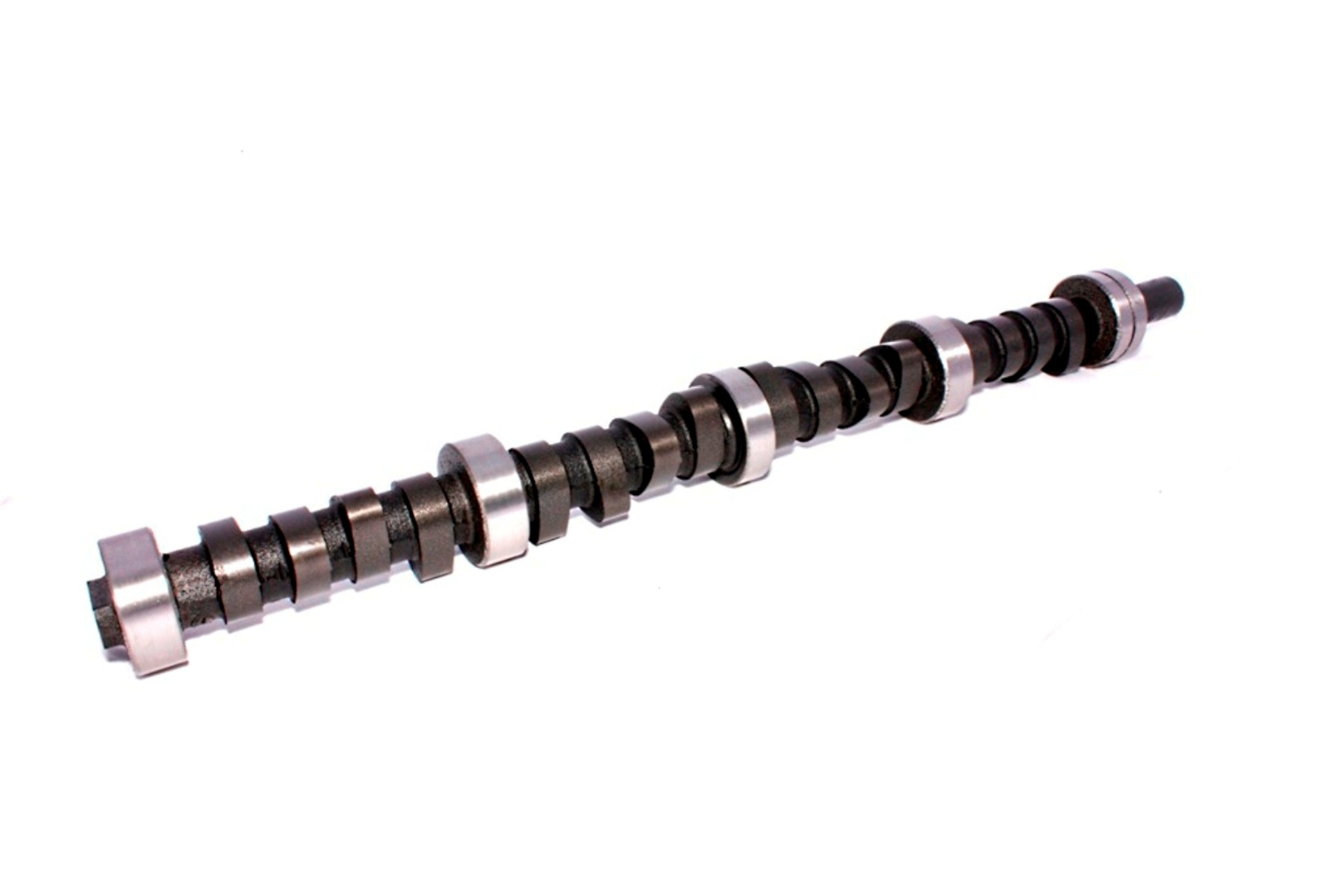

COMP Cams 10-203-4 Magnum 224/224 Hydraulic Flat Tappet Camshaft for AMC 290-401

(Jeep Cherokee 1974-83, CJ7 1976-81, CJ5 1971-81, Grand Wagoneer 1984-91, J10 1974-88, Wagoneer 1972-83, J20 1974-88, Commando 1972-73 + 28 more models)

Part of: COMP Cams Magnum Hydraulic Flat Tappet Camshaft Ford

Other options in this family: COMP Cams 12-212-2 COMP Cams 35-226-3 COMP Cams 20-232-4 COMP Cams 32-225-4 COMP Cams 12-211-2

Manufacturer

Picture for manufacturer COMP Cams

Part Number

10-203-4
4 reviews
Sale Price

$309.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 10-203-4 Magnum camshaft delivers a significant performance upgrade for AMC V8 engines ranging from 290 to 401 cubic inches. This hydraulic flat tappet camshaft features a symmetrical 224°/224° advertised duration profile designed to provide excellent mid-range torque and strong top-end power without sacrificing street manners.

Key Specifications:

  • Advertised Duration: 224° intake / 224° exhaust
  • Duration at .050": 224° intake / 224° exhaust
  • Valve Lift: .420" intake / .442" exhaust (with 1.6 rocker ratio)
  • Lobe Separation Angle: 110°
  • Hydraulic flat tappet design for reliable street performance
  • Compatible with AMC 290, 304, 343, 360, 390, and 401 V8 engines

This cam profile is ideal for street and street/strip applications where strong throttle response and a broad powerband are priorities. The hydraulic design eliminates the need for valve lash adjustments, making it an excellent choice for daily drivers and weekend performance vehicles. Recommended operating range is 1,500-5,500 RPM with peak power typically achieved between 4,500-5,000 RPM.

Installation Notes: Requires compatible hydraulic flat tappet lifters, timing set, and valve springs with appropriate seat pressure and coil bind clearance. Always verify piston-to-valve clearance during installation.

Products specifications

Fits

Jeep Cherokee 1974-83, CJ7 1976-81, CJ5 1971-81, Grand Wagoneer 1984-91, J10 1974-88, Wagoneer 1972-83, J20 1974-88, Commando 1972-73, CJ6 1971-75, Jeepster 1972-73, J-100 1971-73, J-2500 1970-73, J-4600 1971-73, J-4500 1971-73 + 22 more models

Grind Number

270H

Cam Type

Hydraulic Flat Tappet

Engine Family

American Motors 290-401 c.i. 8 Cylinder (1966-1991)

Intake Valve Lift

0.48

Camshaft Material

Cast Iron

Cam and Lifter Kit Upgrade

CL10-203-4

K-Kit Upgrade

K10-203-4

Camshaft Series

Magnum

SK-Kit Upgrade

SK10-203-4

Assembly Lubricant Included

Yes

Camshaft Gear Attachment

1-Bolt

Lifters Included

No

LOBE SEPARATION

110

Valve Springs Required

Yes

Lifter Type

Hydraulic Flat Tappet

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Advertised Intake Duration

270

Advertised Exhaust Duration

270

Usage

Street/Strip

Basic Operating RPM Range

1,800-5,800

Exhaust Valve Lift

0.48

Exhaust Duration at .050 inch Lift

224

Intake Duration at .050 Inch Lift

224
