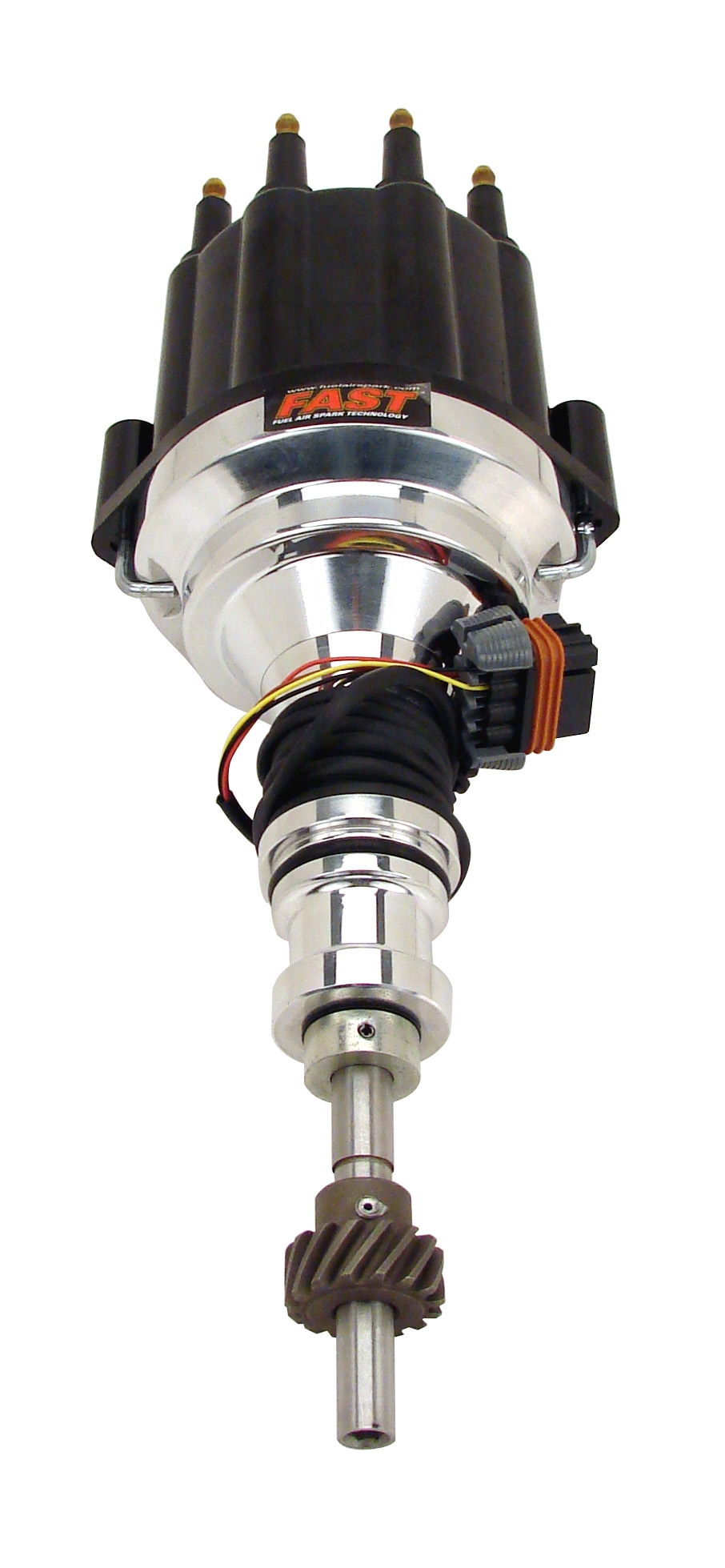

FAST 305007 Xdi Dual Sync Distributor For Small Block Ford

(Ford F-150 1975-96, Mustang 1969-73, 1979-95, F-250 1972-74, 1977-78, 1980-96, Bronco 1966-77, 1980-96, Thunderbird 1977-81, 1983-88, 1991-93 + 47 more models)

Manufacturer

Picture for manufacturer FAST

Part Number

305007
9 reviews
Sale Price

$340.95

3 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The FAST 305007 XDI Dual-Sync Distributor delivers a drop-in, plug-and-play solution for fully sequential high-performance V8 EFI engine applications on Small Block Ford engines. Engineered for seamless integration with FAST XFI 2.0 and EZ-EFI 2.0 Fuel + Ignition ECUs, this distributor eliminates the complexity of manual setup with factory-aligned reluctors and pick-ups that come properly phased right out of the box.

Key Features:

  • Pre-aligned reluctors and pick-ups eliminate the need to set crankshaft reference angles or rotor phasing
  • CNC-machined housing from premium 6061-T6 billet aluminum for exceptional durability
  • High-output magnetic pick-ups generate noise-resistant, discrete switching signals
  • Delivers extremely precise ignition timing for optimized engine performance
  • Designed specifically for Small Block Ford engines
  • Plug-and-play compatibility with FAST XFI 2.0 and EZ-EFI 2.0 systems
  • Extended service life through precision engineering and quality materials

This distributor is purpose-built for enthusiasts running sequential EFI systems who demand accurate timing control and reliable performance without the hassle of complicated installation procedures. The dual-sync design provides the critical engine position signals required for fully sequential fuel and spark control.

Products specifications

Fits

Ford F-150 1975-96, Mustang 1969-73, 1979-95, F-250 1972-74, 1977-78, 1980-96, Bronco 1966-77, 1980-96, Thunderbird 1977-81, 1983-88, 1991-93, F-350 1970-89, Maverick 1970-77, F-100 1965-83, Fairlane 1963-70, Ranchero 1977-79 + 42 more models

Shaft Material

Billet Steel

Shaft Diameter

0.467

Cap Diameter

5

Distributor Height

8.375

Cap Color

Black

Trigger Type

Hall-Effect

C.A.R.B. Exempt?

No

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

Mechanical Tach Drive

No

Housing Material

6061-T6 Aluminum

Slip Collar

No

Gear Material

Heat Treated Steel

Advance Type

None, Locked-Out

Housing Finish

Polished

Cap Style

Male/HEI

Ignition Box Required

Yes

Distributor Gear Rotation

CounterClockwise

Computer-Controlled Compatible

Yes
