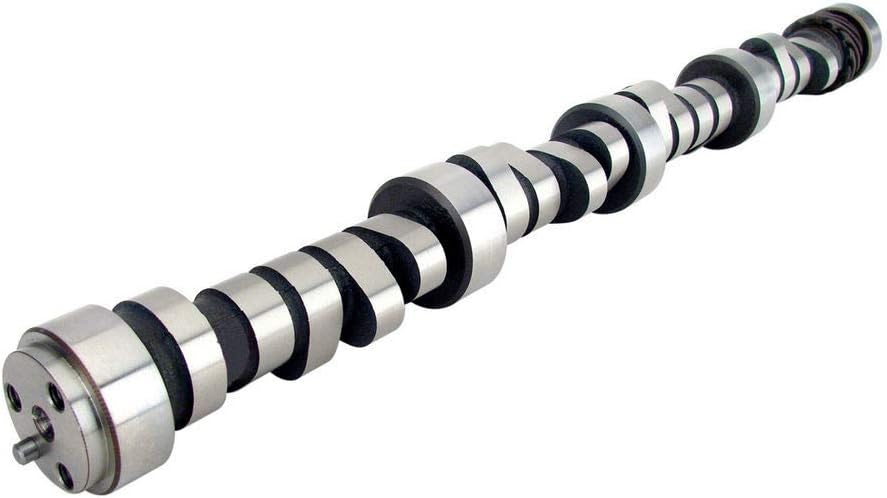

COMP Cams 01-418-8 Xtreme Energy Hydraulic Roller Camshaft Chevrolet Big Block Gen VI - 230/236

(Chevrolet K2500 1996-2000, Express 3500 1996-2000, C3500 1996-2000, C2500 1996-2000, K3500 1996-2000, K2500 Suburban 1996-99, P30 1996-99 + 11 more models)

Manufacturer

Part Number

01-418-8
Black Friday Price

$577.95

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams Xtreme Energy 01-418-8 hydraulic roller camshaft is engineered specifically for Chevrolet Big Block Gen VI engines, delivering aggressive performance characteristics with excellent drivability. This camshaft features 230° intake and 236° exhaust duration specifications, providing a noticeable increase in mid-range to upper RPM power while maintaining good vacuum for power brake operation.

Key Specifications:

  • Advertised Duration: 230° Intake / 236° Exhaust
  • Duration at .050": 218° Intake / 230° Exhaust
  • Valve Lift: .495" Intake / .510" Exhaust (with 1.7:1 rocker ratio)
  • Lobe Separation Angle: 112°
  • Hydraulic roller design for reduced friction and increased durability
  • Designed for street/strip applications with 9.5:1 to 10.5:1 compression ratio

Performance Features:

  • Xtreme Energy lobe profiles optimized for maximum power and torque
  • Hydraulic roller technology eliminates need for break-in procedures
  • Excellent power range from 1,500 to 6,000 RPM
  • Compatible with stock or aftermarket cylinder heads and intake manifolds
  • Requires compatible hydraulic roller lifters, timing set, and pushrods (sold separately)

This camshaft is ideal for street performance builds seeking improved throttle response, stronger acceleration, and an aggressive idle quality. COMP Cams manufactures each camshaft from premium materials with precision grinding to ensure consistent performance and long service life.

Products specifications

Fits

Chevrolet K2500 1996-2000, Express 3500 1996-2000, C3500 1996-2000, C2500 1996-2000, K3500 1996-2000, K2500 Suburban 1996-99, P30 1996-99, G30 1996, C2500 Suburban 1996-99; GMC K2500 1996-2000, Savana 3500 1996-2000, C3500 1996-2000 + 6 more models

Advertised Exhaust Duration

288

Advertised Intake Duration

282

Basic Operating RPM Range

2,200-5,800

Grind Number

XR282HR

Exhaust Valve Lift

0.51

Intake Valve Lift

0.51

Camshaft Material

Austempered Ductile Iron

Engine Family

Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)

Cam and Lifter Kit Upgrade

CL01-418-8

K-Kit Upgrade

K01-418-8

SK-Kit Upgrade

SK01-418-8

Usage

Street/Performance

Assembly Lubricant Included

No

Lifters Included

No

LOBE SEPARATION

110

Valve Springs Required

Yes

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Camshaft Gear Attachment

3-Bolt

Lifter Type

Hydraulic Roller

Exhaust Duration at .050 inch Lift

230

Intake Duration at .050 Inch Lift

230

Cam Type

Hydraulic Roller

AMAZON ASIN

B000VU0FPE

Camshaft Series

Xtreme Energy

Title

Xtreme Energy 230/236 Hydraulic Roller Cam for Chevrolet Big Block GEN VI
