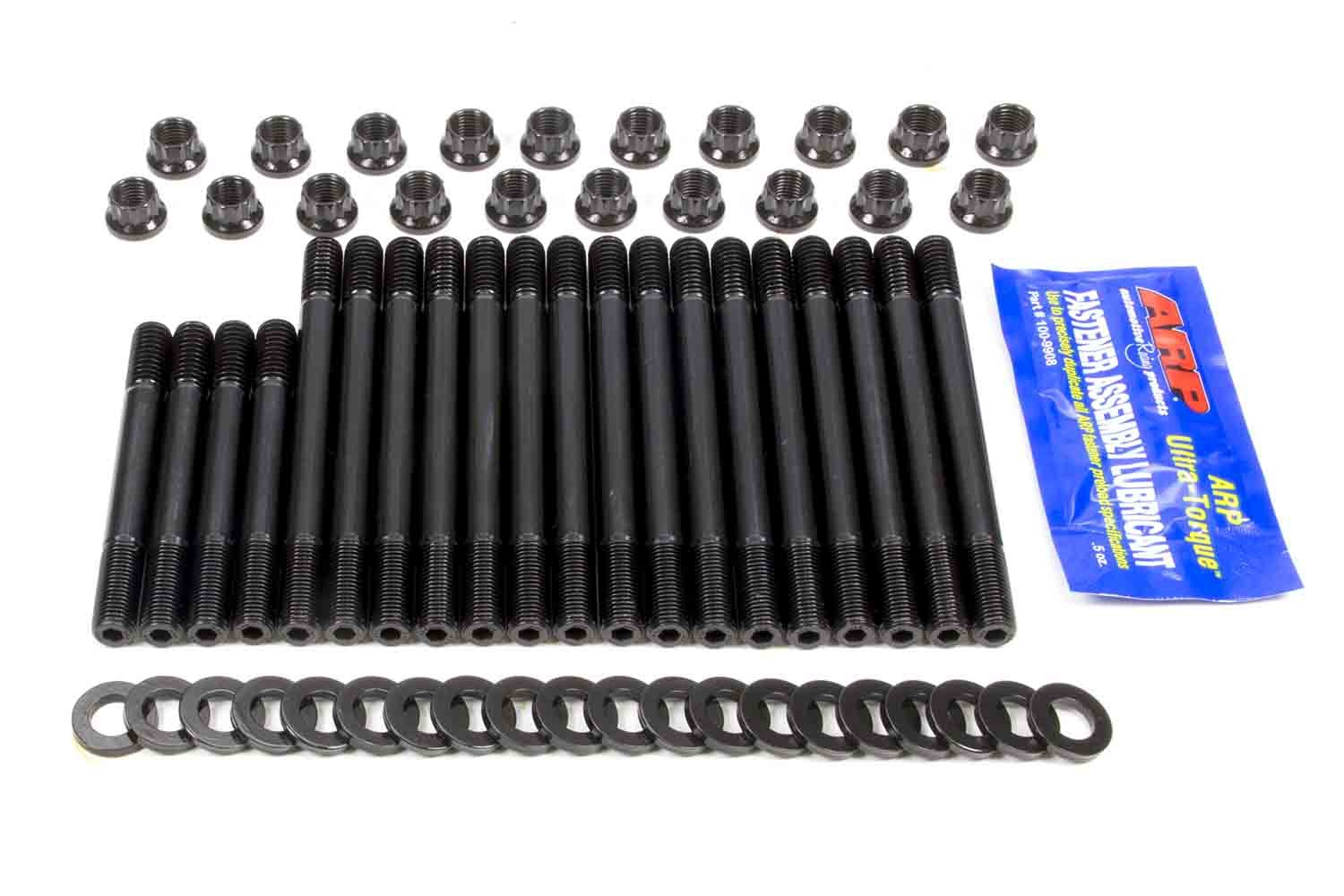

ARP 185-4201 High Performance Cylinder Head Stud Kit Chrome Moly - 8740

The ARP 185-4201 cylinder head stud kit delivers professional-grade fastening performance for high-performance and competition engines. Manufactured from premium 8740 chrome moly steel, these studs are precision-engineered to provide superior clamping force and reliability in demanding applications.

Key Features:

• Premium 8740 chrome moly alloy steel rated at 200,000 psi tensile strength
• 12-point head design for secure engagement and easy installation
• Vertical rack heat-treatment process ensures complete and uniform heat penetration
• Centerless ground for exceptional straightness and concentricity
• Thread rolled after heat-treat for 10x better fatigue strength
• Undercut studs equalize stretch for consistent clamping force
• Includes hardened parallel-ground washers for even load distribution
• Each stud is ARP-stamped for authenticity

Why Choose Studs Over Bolts:

Head studs offer significant advantages over conventional head bolts. Studs install finger-tight without twisting forces, then stretch only along the vertical axis when torqued. This provides more accurate and consistent torque loading compared to bolts, which experience both torsional and tensile stress simultaneously. Studs also simplify engine assembly by ensuring perfect alignment of cylinder heads and gaskets—critical for racing engines that require frequent servicing.

Manufacturing Excellence:

ARP's manufacturing process sets the industry standard. Each stud undergoes precision heat-treatment in vertical racks (not basket-dumped like inferior products), followed by multiple centerless grinding passes for exceptional straightness. The thread rolling is performed after heat-treatment, a costly process that dramatically improves fatigue resistance. The result is a fastener manufactured to exacting tolerances that allows gaskets and cylinder heads to glide into perfect position.

Trusted by top professional engine builders across all forms of motorsports, ARP Pro Series head studs represent the pinnacle of fastener technology for competition powerplants. Remember to re-torque after initial engine run-in to compensate for head gasket compression.
