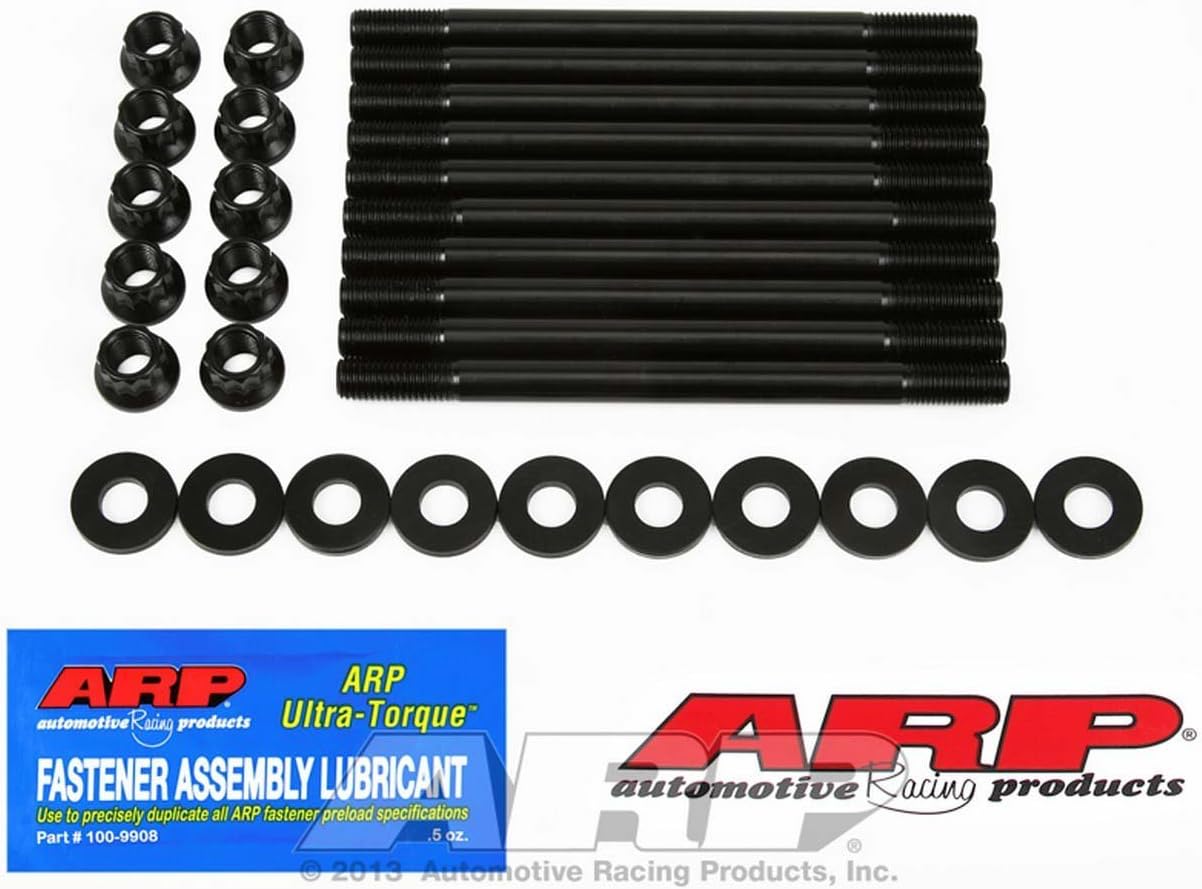

ARP 141-4204 Cylinder Head Stud Kit Chrome Moly - 8740 12-Point

The ARP 141-4204 is a high-performance cylinder head stud kit engineered for serious engine builders who demand the ultimate in clamping force and reliability. Built from premium 8740 chrome moly steel and rated at 200,000 psi tensile strength, these studs deliver exceptional strength and durability for high-performance and racing applications.

Key Features:

• Premium 8740 chrome moly alloy construction rated at 200,000 psi
• 12-point head design for superior grip and torque application
• Vertical rack heat-treating ensures complete and uniform heat penetration
• Centerless ground for precise concentricity and perfect alignment
• Thread rolled after heat-treat for 10x better fatigue strength
• Undercut shorter studs equalize stretch for consistent clamping force
• Includes hardened parallel-ground washers for even load distribution

Why Head Studs Over Bolts:

Head studs provide superior performance compared to bolts because they stretch only along the vertical axis during torque application, whereas bolts experience both torsional and tensile stress simultaneously. This results in more accurate and consistent torque loading. Studs also simplify engine assembly by ensuring proper cylinder head and gasket alignment. The relaxed installation of studs (finger-tight before torquing the nut) eliminates the twisting forces that compromise bolt accuracy.

ARP Manufacturing Excellence:

Each ARP stud undergoes precision manufacturing that sets the industry standard. The vertical heat-treat process, centerless grinding, and post-heat-treat thread rolling create a fastener with exceptional straightness, strength, and fatigue resistance. These exacting tolerances allow cylinder heads and gaskets to glide smoothly into perfect alignment during assembly.

Professional engine builders across all racing disciplines trust ARP Pro Series studs for competition powerplants where failure is not an option. Every stud is marked with the ARP stamp as assurance of quality and adherence to ARP's zero-defect, zero-failure standard.

Note: Re-torque studs after initial engine run-in to compensate for head gasket compression.
