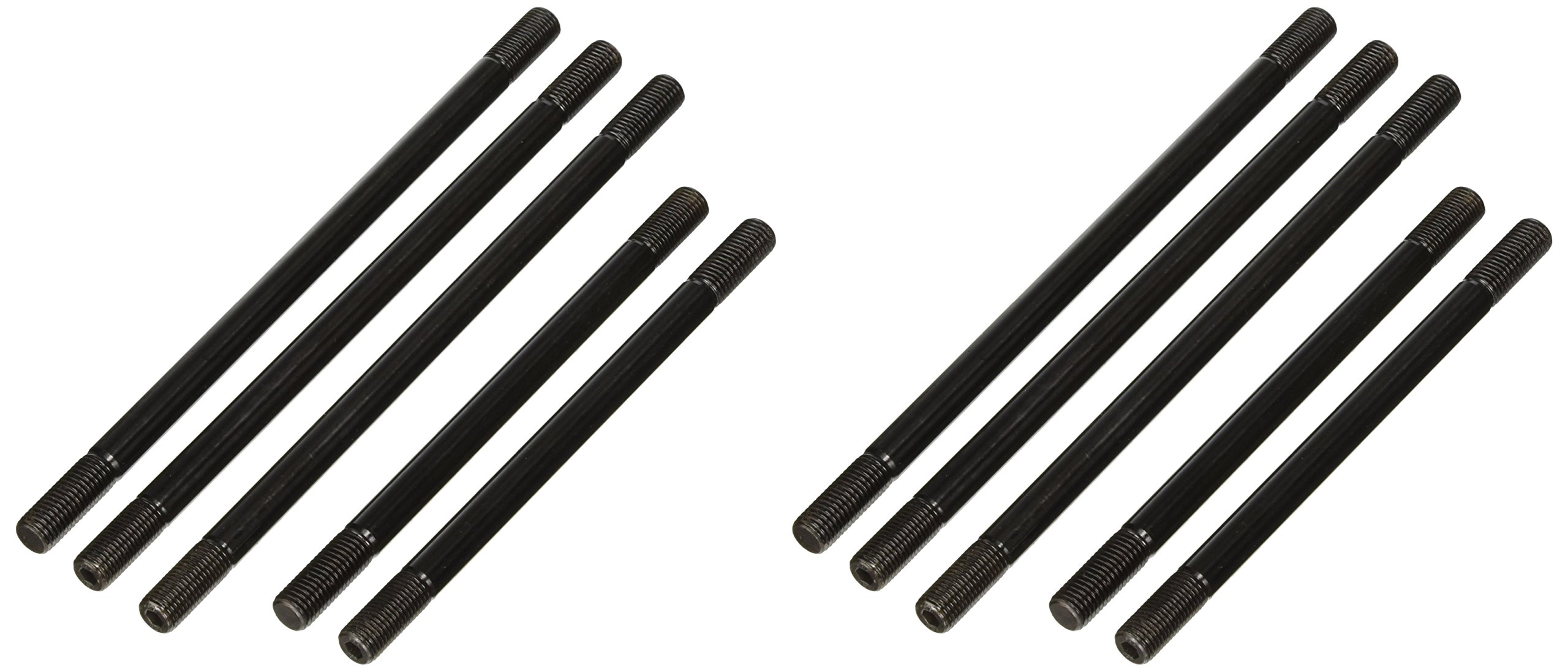

ARP 141-4203 Cylinder Head Stud Kit Chrome Moly Steel - 8740 12-Point

The ARP 141-4203 cylinder head stud kit represents the gold standard in high-performance engine fasteners, trusted by professional engine builders across all forms of motorsport. These premium studs deliver uncompromising reliability and precision for competition and high-performance street applications.

Premium 8740 Chrome Moly Construction:

Each stud is manufactured from premium grade 8740 chrome moly steel, rated at 200,000 psi tensile strength—far superior to aircraft quality materials. ARP's proprietary vertical rack heat-treatment process ensures complete and uniform heat penetration throughout each fastener, resulting in consistent mechanical properties that inferior basket-treated studs simply cannot match.

Precision Manufacturing Process:

• Centerless ground after heat-treat for exceptional concentricity and straightness
• Thread rolled after heat-treatment for approximately 1000% better fatigue strength versus pre-heat-treat threading
• 12-point head design for secure engagement and easy installation
• Includes hardened parallel-ground washers for even load distribution and accurate torque readings
• Each stud is individually inspected and stamped with the ARP logo as assurance of quality

Performance Advantages:

The precision manufacturing tolerances ensure cylinder heads and gaskets align perfectly during assembly, eliminating the frustrating fitment issues common with lesser quality fasteners. Studs provide superior clamping force consistency compared to bolts because they stretch only on the vertical axis during torquing, without the torsional loading that occurs when bolts are simultaneously twisted and tensioned.

Select applications feature specially undercut studs that equalize stretch characteristics between long and short fasteners, providing more consistent clamping force across the entire head surface. This helps prevent head gasket failures and ensures optimal engine sealing under extreme cylinder pressures.

Installation Notes:

Studs should be installed finger-tight in a relaxed state—never cranked down using a jammed nut. This allows the fastener to stretch purely along its vertical axis when the nut is torqued. Always re-torque after initial engine operation to compensate for head gasket compression. The 12-point head design and wide-area flange eliminate the need for valve train removal when retorquing cylinder heads.

Complete kit includes all necessary studs, nuts, and hardened washers for proper installation.
