Part number: C4252-030
Product Details

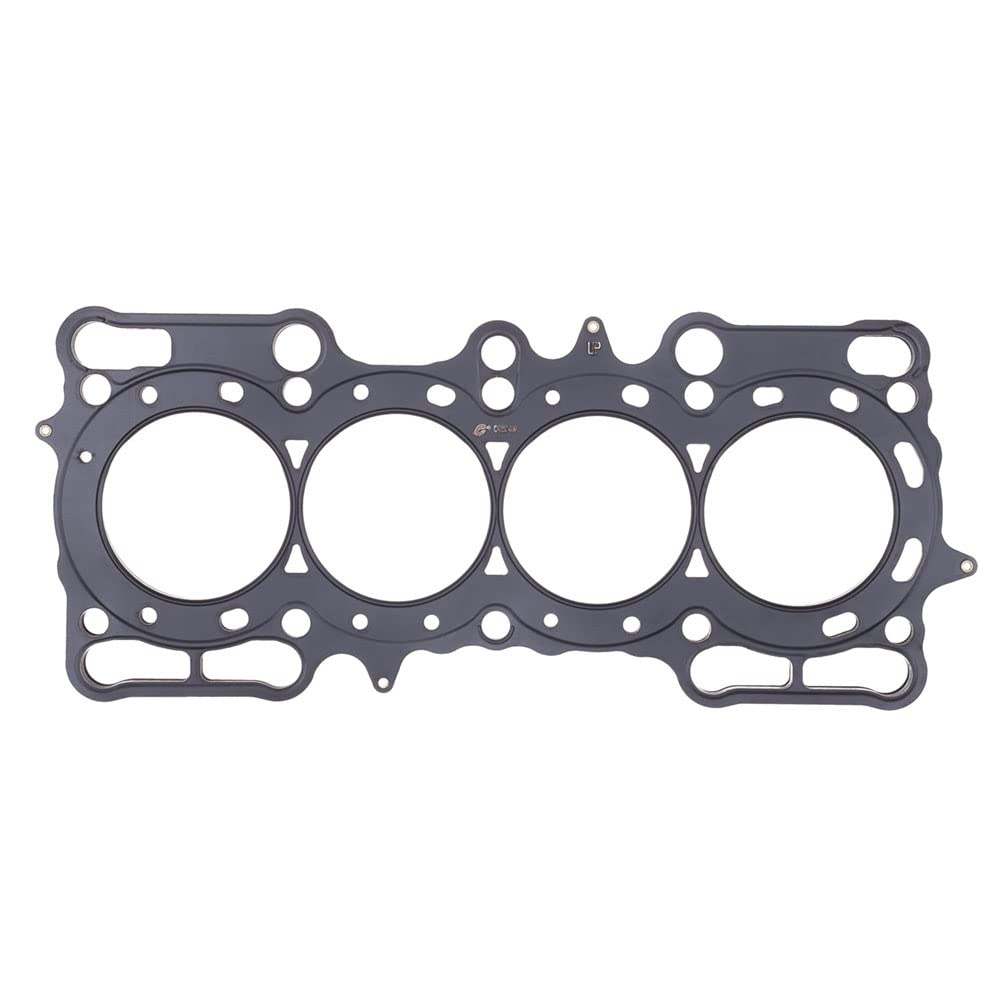

Cometic C4252-030 Head Gaskets
Products specifications
Bore 87mm
Bore (in) 3.425 in.
Bore (mm) 87.000mm
Calculator Compression Calculator
Compressed Thickness (in) 0.030 in.
Compressed Volume (cc) 4.530cc
Gasket Material Multi-layer steel
Lock Wire No
Material MLS
Notes VTEC-DOHC. 2T/2TC/3TC/3T-EU.
Quantity Sold individually.
Thickness .030in
Bore Diameter 87mm
Engine Honda/Acura H22A4/H22A7 2.2L DOHC 4 Cylinder

(H22A4 - 87MM Bore - MLS .030") Built for the (97 and up) Honda Prelude... The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, its ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.

  • Honda Prelude (97 and up)
  • H22A4 - 87MM Bore - MLS .030"
Add your review
I had not shopped at Autoplicity before this purchase.   Everything worked out great - product was delivered very quickly and exactly what I ordered.   Thank you Autoplicity.
Order 11001 was placed on Thurday and was shipped out on Monday. The item was cheaper than anywhere else on the web. I look forward to getting my new side steps. Thanks Autoplicity.
Easy ordering and the best price I could find on the internet. However, I wouldn't have found this part by looking on the Autoplicity web site! The only way it showed up was doing a google search for that specific part.
Show All Reviews
Honda Prelude
2001 Honda Prelude Base / Type SH
2000 Honda Prelude Base / Type SH
1999 Honda Prelude Base / Type SH
1998 Honda Prelude Base / Type SH
1997 Honda Prelude Base / Type SH
