Part number: C5317-051
Product Details

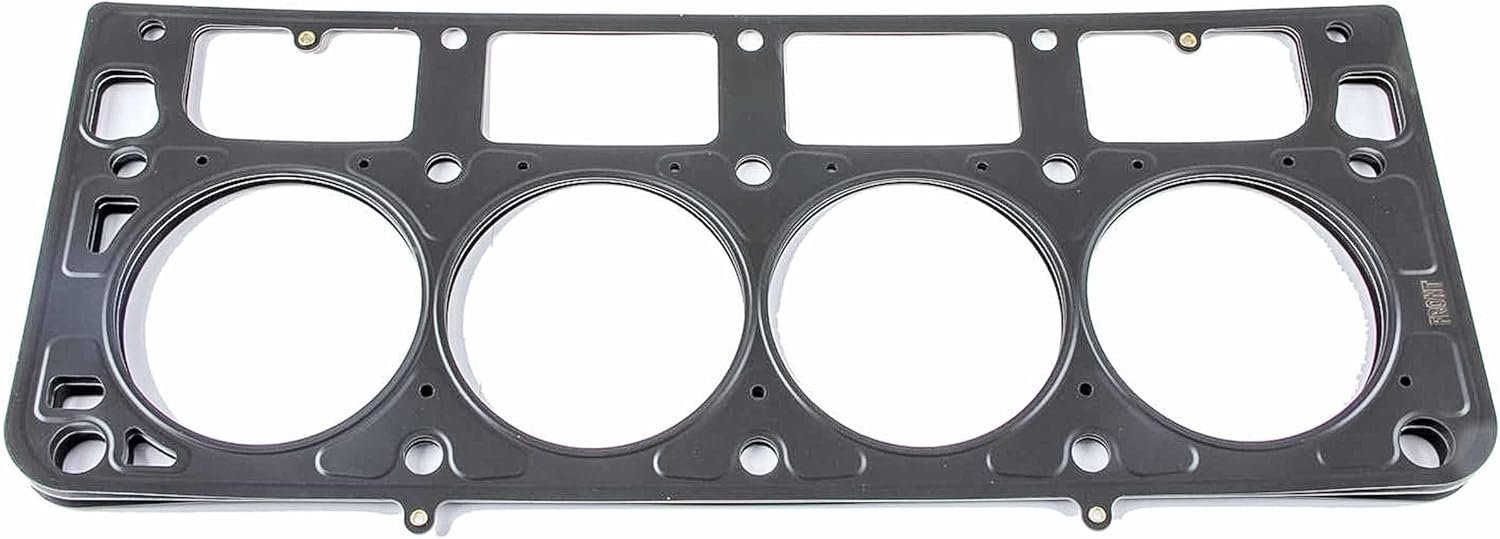

Cometic C5317-051 Head Gaskets
Products specifications
Bore 4.130in
Bore (in) 4.130 in.
Bore (mm) 104.902mm
Calculator Compression Calculator
Compressed Thickness (in) 0.051 in.
Compressed Volume (cc) 11.196cc
Gasket Material Multi-layer steel
Lock Wire No
Material MLS
Quantity Sold individually.
Thickness .051in
Bore Diameter 4.130"
Engine GM Gen III/IV Small Block V8 LS Series
Head Gasket
3-Layer

Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.

MLS
The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, its ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.

The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.

The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.

CFM-20
A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.

COPPER

Reviews
Add your review
R
EASY TO NAVIGATE THE PAGE, FAST SHIPPING, OVERALL WONDERFULL TO DEAL WITH!!!!  WILL SHOP THERE AGAIN!!!!  THANK YOU!!!
J
Great company to do business with!  Ordered a Thule 916XTR bike rack for my car and their prices blew away everyone else on the 'net!  Ordered on Sunday, they shipped on Monday and sent me a tracking number that night.  Super fast shipping and great communication! I'll definitely be coming back to Autoplicity again!
S
found what i wanted , hoping there the right one ..
K
Super fast shipping, easy to use site, would buy again from site
Show All Reviews
Fitment
Avanti II
2004 Avanti II Base
2003 Avanti II Base
2002 Avanti II Base
2001 Avanti II Base
Chevrolet Avalanche
2013 Chevrolet Avalanche ALL / Base / Black Diamond LS / Black Diamond LT / Black Diamond LTZ
2012 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2011 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2010 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2009 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2008 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2007 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
Chevrolet Avalanche 1500
2006 Chevrolet Avalanche 1500 Base / LS / LT / Z66 / Z71
2005 Chevrolet Avalanche 1500 Base / LS / LT / Z66 / Z71
2004 Chevrolet Avalanche 1500 Base / LS / LT / Z66 / Z71
2003 Chevrolet Avalanche 1500 Base / LS / LT / North Face / On Road Edition / WBH / WHB / Z71
2002 Chevrolet Avalanche 1500 Base / LS / LT / On Road Edition / Z71
Chevrolet Camaro
2002 Chevrolet Camaro Base / Z28 / Z28 SS
2001 Chevrolet Camaro Base / Z28 / Z28 SS
2000 Chevrolet Camaro Base / Z28 / Z28 SS
1999 Chevrolet Camaro Base / Z28 / Z28 SS
1998 Chevrolet Camaro Base / Lujo / Z28 / Z28 SS
1997 Chevrolet Camaro Base / Lujo / RS / Z28 / Z28 30th Anniversary Edition / Z28 SS 30th Anniversary Edition
Chevrolet Cheyenne
2013 Chevrolet Cheyenne Cheyenne
2012 Chevrolet Cheyenne Cheyenne
2011 Chevrolet Cheyenne Cheyenne
2010 Chevrolet Cheyenne Cheyenne
Chevrolet Cheyenne 2500
2009 Chevrolet Cheyenne 2500 Base
2008 Chevrolet Cheyenne 2500 Base
2007 Chevrolet Cheyenne 2500 Base
Chevrolet Colorado
2012 Chevrolet Colorado LT
2011 Chevrolet Colorado LT
2010 Chevrolet Colorado LT
2009 Chevrolet Colorado LT
Show All Vehicle Fitments
