COMP Cams 11-655-47 Xtreme Energy 4/7 Swap Solid Flat Camshaft Big Block Chevy 396-454

(Chevrolet Camaro 1967-72, Corvette 1967-74, Impala 1967-76, Malibu 1967, 1973-75, C1500 1990-93, Chevelle 1967-73, Blazer 1973-74 + 104 more models)

Manufacturer

Part Number

11-655-47
Black Friday Price

$376.95

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

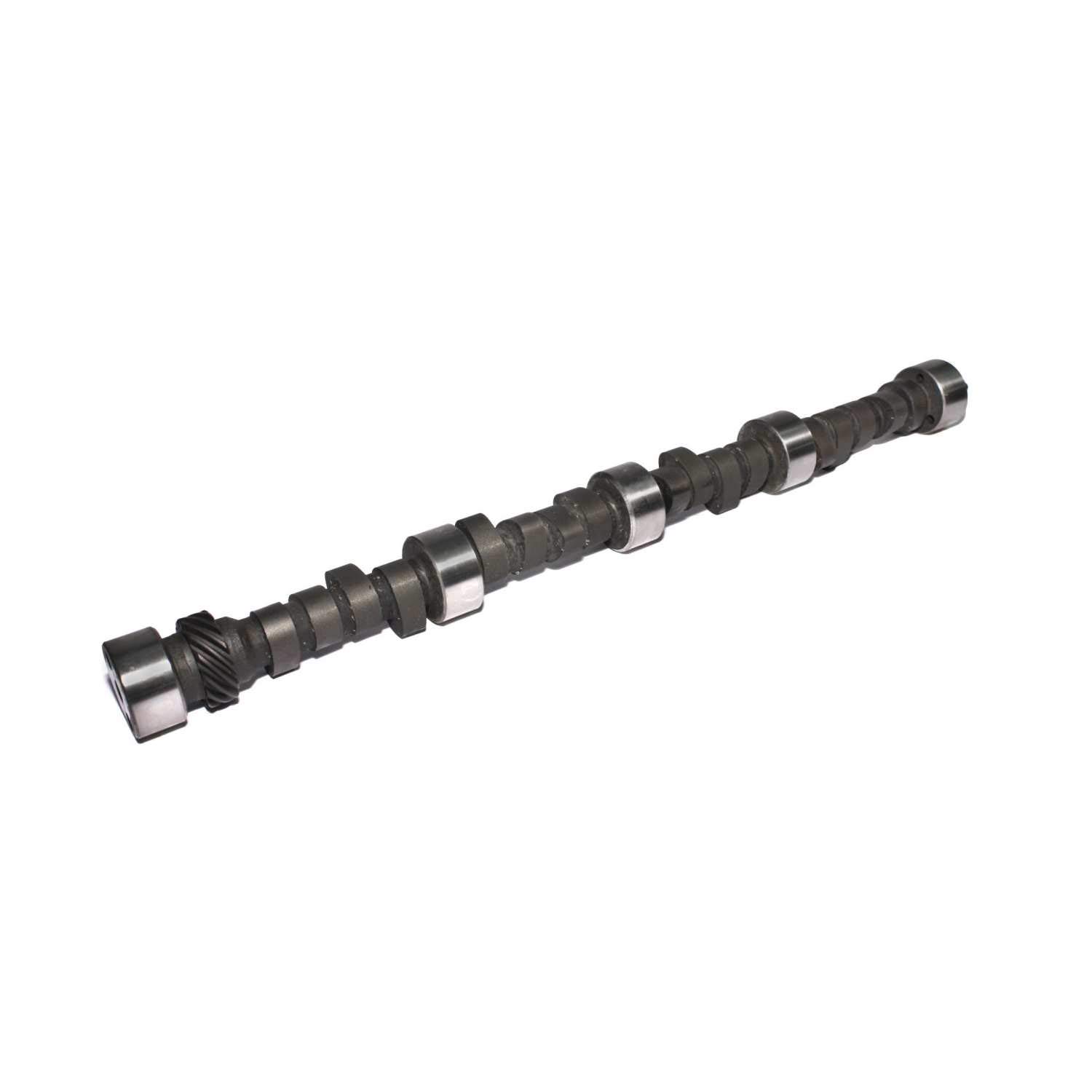

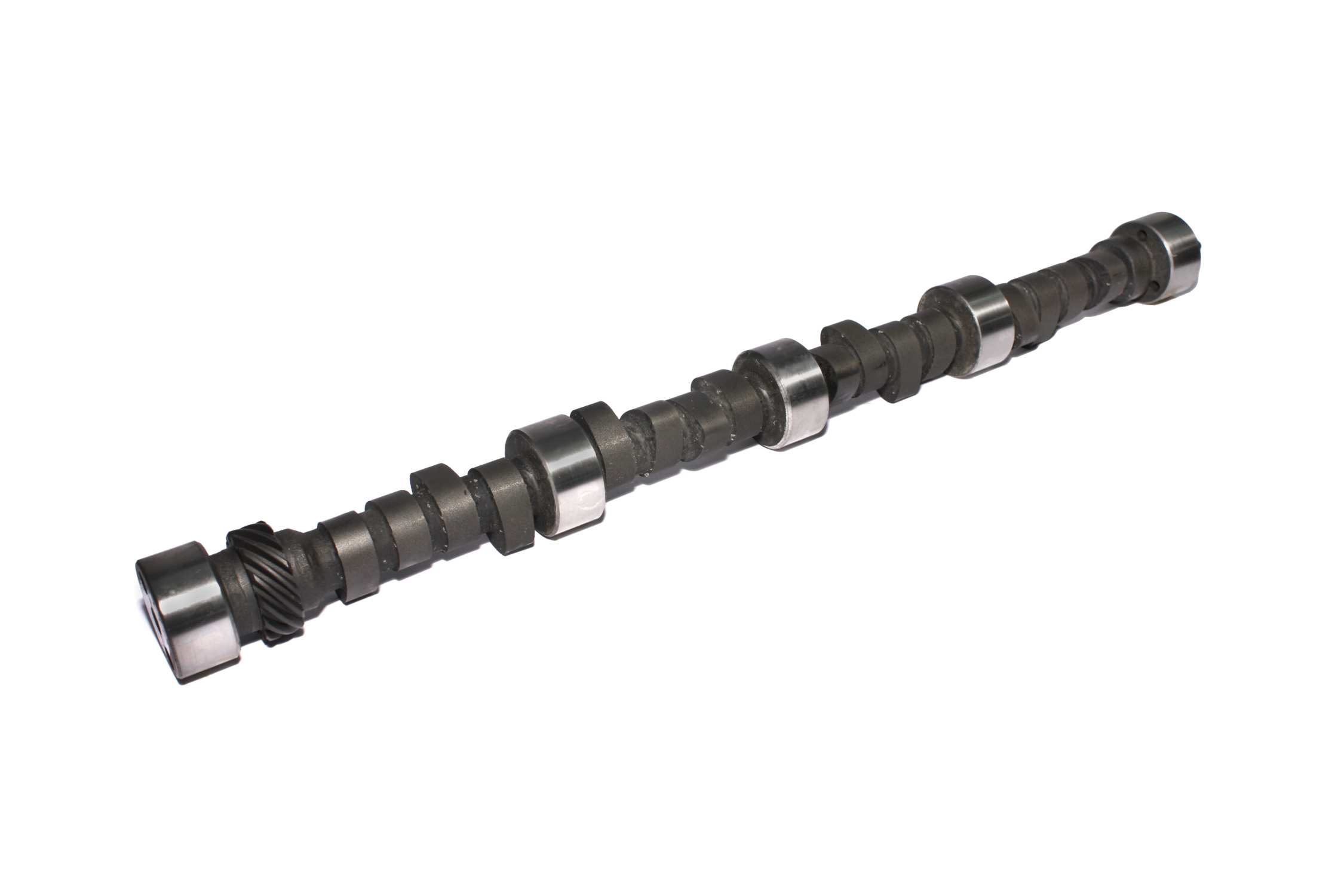

The COMP Cams Xtreme Energy 11-655-47 is a high-performance solid flat tappet camshaft designed specifically for Chevrolet Big Block engines (396-454 cubic inches). This specialized 4/7 swap camshaft features a 252/260 duration profile that delivers exceptional power gains while maintaining street-friendly drivability.

Key Features:

  • Quicker valve opening profile for increased throttle responsiveness and improved cylinder filling
  • 252/260 duration specification optimized for Big Block Chevrolet applications
  • Solid flat tappet design for reliable, high-performance operation
  • 4/7 cylinder swap configuration for optimized firing order and performance
  • Increased area under the lift curve compared to older camshaft grinds
  • Maintains adequate vacuum for power brakes and other vacuum-dependent accessories
  • Excellent torque and horsepower gains throughout the RPM range

Performance Applications:

  • Ideal for street/strip and aggressive street performance builds
  • Works with carbureted applications, best with aftermarket intake manifolds
  • Optimized performance with headers, free-flowing exhaust, and lower gear ratios
  • Balances performance gains with creature comforts for daily drivability

This camshaft is part of COMP Cams' proven Xtreme Energy series, engineered to deliver maximum performance without sacrificing the reliability and streetability that enthusiasts demand. The 4/7 swap configuration provides enhanced performance characteristics specific to Big Block Chevrolet engine architecture.

Products specifications

Fits

Chevrolet Camaro 1967-72, Corvette 1967-74, Impala 1967-76, Malibu 1967, 1973-75, C1500 1990-93, Chevelle 1967-73, Blazer 1973-74, C10 Pickup 1968-74, Caprice 1967-76, C10 1975-80, El Camino 1967-75, Monte Carlo 1970-75 + 99 more models

Advertised Intake Duration

290

Lifter Type

Solid Flat Tappet

Basic Operating RPM Range

2,800-7200

Intake Duration at .050 Inch Lift

252

Exhaust Duration at .050 inch Lift

260

Camshaft Material

Cast Iron

Cam Type

Solid Flat Tappet

Grind Number

XE290S

Camshaft Series

Xtreme Energy 4 and 7 Swap Firing Order

Usage

Street/Performance

Assembly Lubricant Included

Yes

Lifters Included

No

LOBE SEPARATION

110

Valve Springs Required

Yes

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Camshaft Gear Attachment

3-Bolt

AMAZON ASIN

B001G7ES0E

Advertised Exhaust Duration

298

Intake Valve Lift

0.598

Exhaust Valve Lift

0.598

Engine Family

Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
