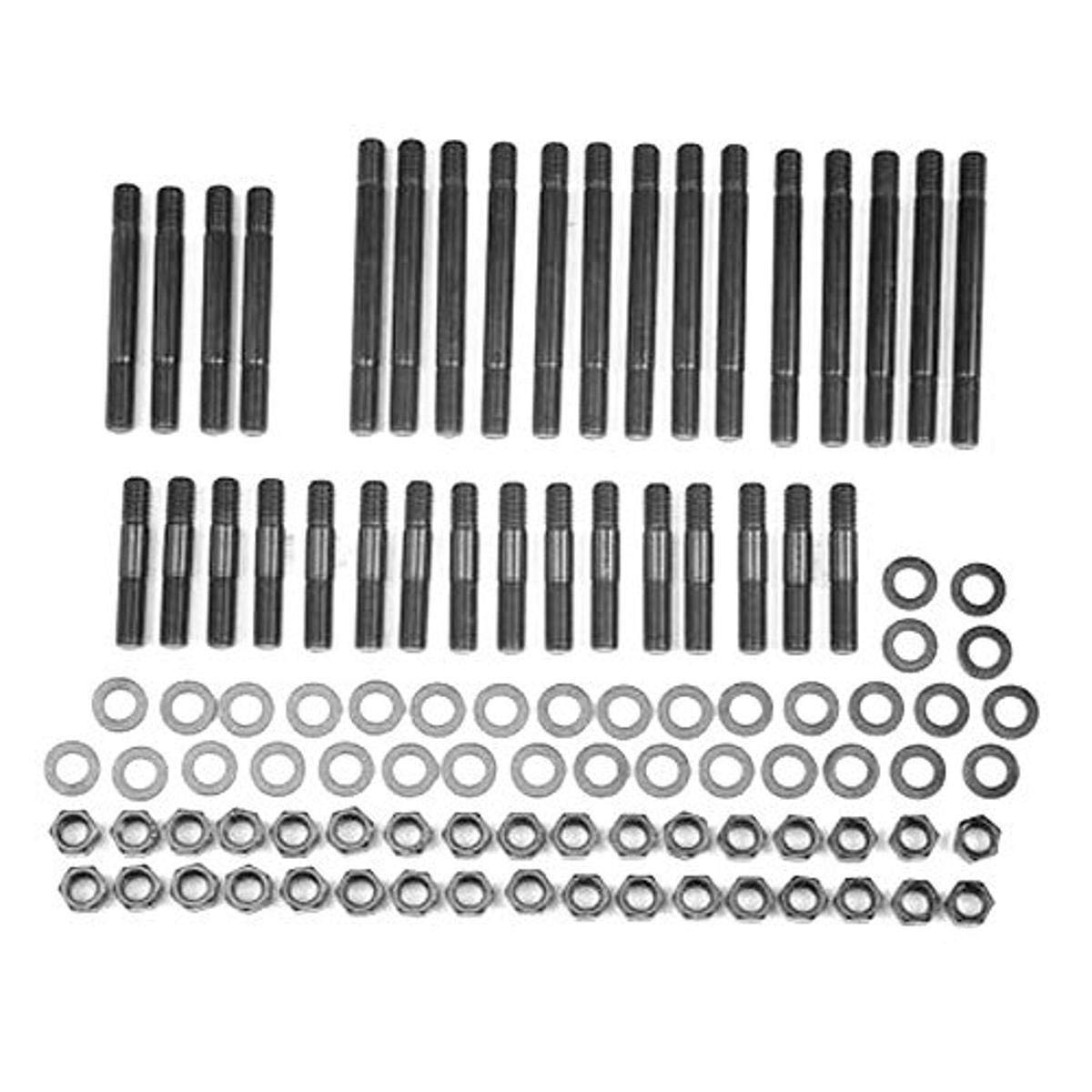

ARP 234-4213 High Performance Cylinder Head Stud Kit Chrome Moly - 8740

The ARP 234-4213 is a high-performance cylinder head stud kit engineered for demanding applications where reliability and precision are non-negotiable. Built from premium 8740 chrome moly steel and featuring 12-point heads, this kit delivers the strength and consistency that professional engine builders trust for competition and high-performance street engines.

Key Features:

• Premium 8740 chrome moly alloy rated at 200,000 psi tensile strength
• Precision heat-treated in vertical racks for complete, uniform heat penetration
• Centerless ground for exceptional concentricity and straight tolerance
• Thread rolled after heat-treat for 10x better fatigue strength than pre-threaded fasteners
• 12-point heads with wide-area flanges eliminate need for valve train removal during retorquing
• Undercut short studs equalize stretch for consistent clamping force
• Includes hardened, parallel-ground washers for even load distribution and accurate torque readings

Manufacturing Excellence:

ARP's exacting manufacturing process sets these studs apart from competing products. Each stud undergoes vertical rack heat-treating to ensure consistent metallurgical properties throughout, followed by approximately ten precision centerless grinding passes to achieve near-perfect concentricity. This level of precision allows cylinder heads and gaskets to align effortlessly during assembly—a critical advantage in racing applications where quick, accurate rebuilds are essential.

The thread rolling process is performed after heat treatment, which significantly increases fatigue resistance compared to conventional pre-heat-treat threading methods. While this approach is more demanding on tooling and increases manufacturing costs, it results in fasteners that can withstand the extreme loads of high-performance and racing applications.

Design Advantages:

The specially undercut shorter studs in this kit provide more equalized stretch between fasteners, compensating for head gasket compression and delivering more uniform clamping force across the entire head surface. This design helps prevent head gasket failures and ensures optimal combustion sealing under extreme cylinder pressures.

The 12-point head design with wide-area flange allows for cylinder head retorquing without removing valve train components, saving valuable time during engine maintenance and accommodating larger diameter valve springs in performance applications.

Installation Notes:

Studs should be installed finger-tight in a relaxed state—never torque them in using a jammed nut. This allows the stud to stretch only along its vertical axis when the nut is torqued, providing more accurate and consistent clamping force compared to bolts, which experience both torsional and tensile loads simultaneously. Always retorque fasteners after initial engine run-in to compensate for head gasket compression.

Each stud is stamped with the ARP logo as your assurance of quality and authenticity. This kit represents the same fastener technology relied upon by professional engine builders across all forms of motorsports competition.
