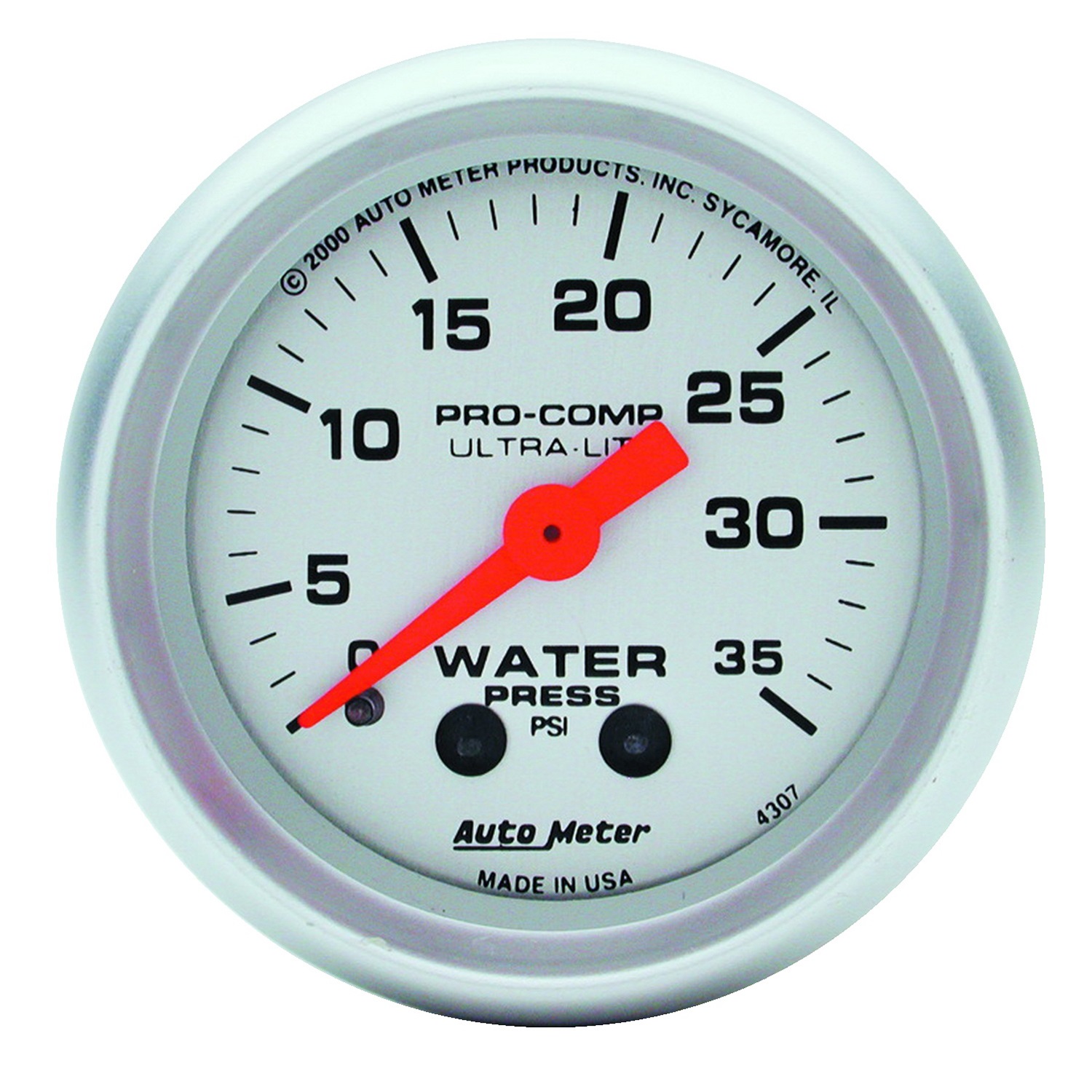

AutoMeter 4307 Ultra-Lite Mechanical Water Pressure Gauge 2-1/16" 0-35 PSI

Manufacturer

Part Number

4307
Black Friday Price

$98.37

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The AutoMeter 4307 Ultra-Lite Mechanical Water Pressure Gauge delivers race-proven accuracy for monitoring cooling system pressure in high-performance and racing applications. This 2-1/16 inch gauge features a precision bourdon tube meter movement that provides reliable readings from 0-35 PSI, ensuring you can detect cooling system issues before they become critical failures.

Key Features:

  • Mechanical operation requires no electrical connection - works on any vehicle
  • Precision bourdon tube movement delivers exceptional accuracy and durability
  • Traditional incandescent lighting illuminates around the dial perimeter
  • Silver dial with fluorescent red pointer for easy reading
  • Brushed aluminum super bezel with flat, clear lens
  • 1/8" NPT connection on back for straightforward installation

Complete Installation Kit Includes:

  • 1/8" nylon pressure line and compression fittings
  • 1/4" NPT adapter for versatile mounting options
  • Bulb and socket assembly with red and green bulb covers
  • Mounting hardware and detailed instructions

The Ultra-Lite series combines lightweight construction with professional-grade accuracy, making it ideal for racing applications where every ounce matters. The mechanical design ensures reliable operation even in harsh environments with extreme vibration and temperature fluctuations.

Specifications:

  • Gauge diameter: 2-1/16 inches (52mm)
  • Outer bezel diameter: 2-1/4 inches
  • Pressure range: 0-35 PSI
  • Connection: 1/8" NPT
  • Lighting: White incandescent

Products specifications

Bezel Color

Brushed aluminum

Gauge Type

Water pressure

Size

2.3125 in.

Face Color

Silver

Hole size

0.0625 in.

Bezel Style

Super Bezel

Lighting Color

White Incandescent

Lighting Type

Incandescent

Gauge Size

2.0625 in.

Hole size

52.4mm

Gauge Size

52.4mm

Pointer Color

Fluorescent Red

Outer Bezel Diameter

2.250 in.

Lens

Flat Clear

Movement Type

Mechanical

Prop 65

Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
