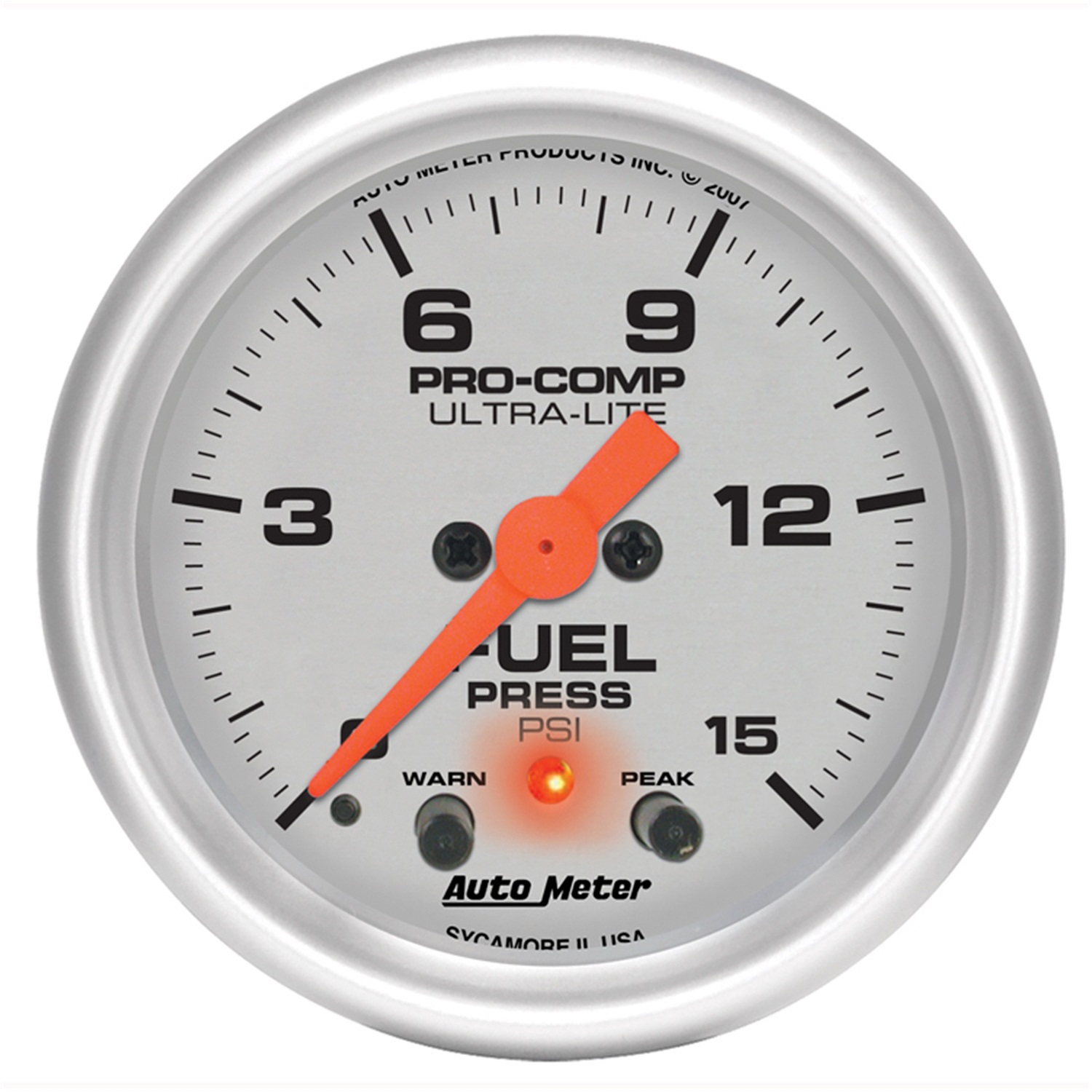

AutoMeter 4367 Ultra-Lite 2-1/16" Digital Fuel Pressure Gauge 0-15 PSI

Manufacturer

Part Number

4367
Sale Price

$296.91

Estimated ship date Saturday, November 28

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The AutoMeter Ultra-Lite 4367 digital stepper motor fuel pressure gauge delivers precise fuel pressure monitoring with exceptional accuracy for both fuel-injected and carbureted applications. This 2-1/16" gauge features advanced digital stepper motor technology that provides unmatched precision while keeping hazardous fluids safely outside the vehicle cabin.

Key Features:

  • Digital stepper motor movement with self-calibration sequence for superior accuracy
  • 0-15 PSI measurement range ideal for most street and performance applications
  • One-touch peak recall functionality for data acquisition and later review
  • Programmable warning alert system to notify driver of critical pressure conditions
  • Data logging capability via 0.5-4.5V analog output signal
  • Data acquisition grade solid-state pressure transducer with exceptional vibration and heat resistance
  • Traditional incandescent perimeter lighting with white illumination
  • 12V and 16V compatible for universal electrical system compatibility

Specifications:

  • Gauge diameter: 2-1/16" with 2-1/4" outer bezel diameter
  • Silver dial with fluorescent red pointer
  • Brushed aluminum bezel with flat clear lens
  • 1/8" NPT pressure transducer connection

Complete Kit Includes: 1/8" NPT stainless steel solid-state pressure transducer, plug-in wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed installation instructions.

This precision gauge provides the critical fuel pressure monitoring needed to maximize performance while protecting your engine investment from dangerous lean or rich conditions.

Products specifications

Bezel Color

Brushed aluminum

Illuminated

Yes

Number Color

Black

Size

2.3125 in.

Face Color

Silver

Hole size

0.0625 in.

Bezel Style

Super Bezel

Lighting Color

White Incandescent

Lighting Type

Incandescent

Gauge Size

2.0625 in.

Bulb and Socket Number

3220

Hole size

52.4mm

Gauge Size

52.4mm

Voltage

8-18 V

Analog Or Digital

Analog

Pointer Color

Fluorescent Red

Bulb Technology

Incandescent

Attachment Method

Panel

Measurement

US

Pressure

0-15 PSI

Gauge Type

Fuel Pressure

Liquid Filled

No

Outer Bezel Diameter

2.250 in.

Movement Type

Electric Digital Stepper Motor

Lens

Flat Clear

Sending Unit Number

2245

Mounting Bracket Number

2230

Electric Or Mechanical

Electric

Fuel Line Adapter Included

No

Wire Harness Number

5227

Gauge Adapter Included

No

Sweep

Full

Light Covers Number

3244/3215

Block Adapter Included

No

Prop 65

WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
