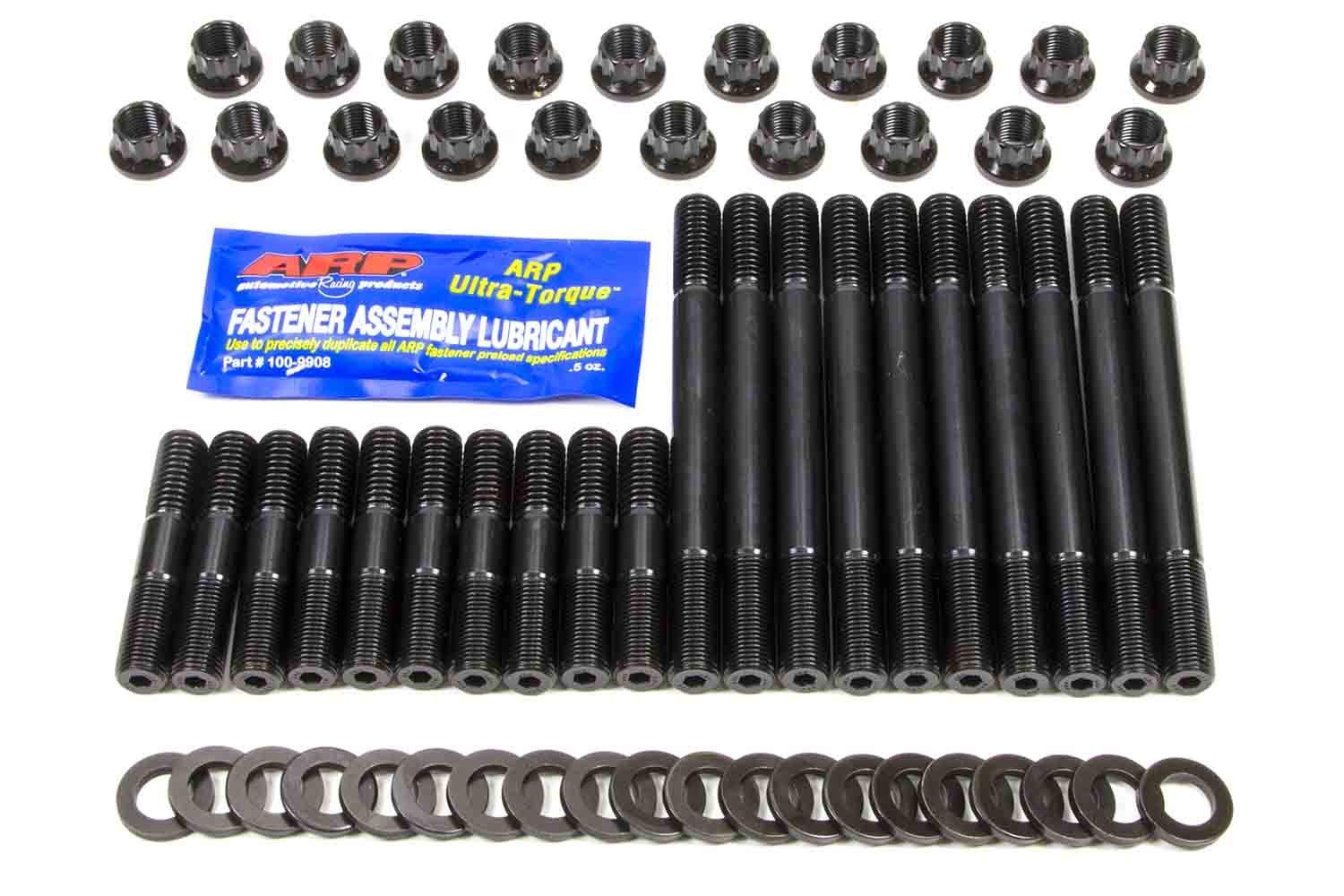

ARP 144-4203 Pro Series Cylinder Head Stud Kit Chrome Moly - 8740 12-Point

The ARP 144-4203 is a premium cylinder head fastener kit engineered for high-performance and competition engine builds. Manufactured from ARP's proprietary premium-grade 8740 chrome moly alloy steel — rated superior to aircraft-quality material — these studs deliver exceptional clamping force, fatigue resistance, and long-term reliability under extreme cylinder pressure.

Key Features:

• Manufactured from premium 8740 chrome moly alloy steel, heat-treated to 200,000 psi tensile strength
• Studs are heat-treated vertically in racks for complete, uniform heat penetration
• Centerless ground after heat-treat for near-perfect concentricity and precise alignment
• Thread rolled after heat-treat for up to 1,000% greater fatigue strength versus pre-heat-treat threading
• Undercut short studs equalize stretch between stud lengths for more consistent clamping force and improved head gasket sealing
• 12-point head with wide-area flange eliminates the need for valve train removal during cylinder head retorquing
• Wide flange also accommodates larger-diameter valve springs
• Hardened, parallel-ground washers included for even load distribution and accurate torque readings
• Each stud is individually stamped with the ARP mark as a guarantee of quality

Studs vs. Bolts — Why Studs Are Preferred:

Unlike head bolts, which are subjected to both torsional and tensile forces simultaneously during torquing, studs are installed in a relaxed state and stretch only on the vertical axis when the nut is torqued. This results in more accurate and consistent clamping force across the entire head. The undercut shorter studs in this kit are designed to stretch at a rate similar to the longer studs, providing uniform load distribution. Always re-torque fasteners after the initial engine run-in to account for head gasket compression.

The ARP 144-4203 meets ARP's ZERO defect, ZERO failure quality standard and is the choice of professional engine builders across all forms of motorsport competition.
