ARP 145-4012 High Performance Cylinder Head Stud Kit Chrome Moly - 8740

The ARP 145-4012 is a high-performance cylinder head stud kit engineered for demanding applications where superior clamping force and reliability are essential. Built from premium 8740 chrome moly steel, these studs are heat-treated to 200,000 psi tensile strength, far exceeding standard Grade 8 fasteners and providing the strength required for high-performance and racing engines.

Key Features:

• Premium 8740 chrome moly steel construction rated at 200,000 psi tensile strength
• Precision heat-treated using vertical rack method for complete and uniform heat penetration
• Centerless ground after heat-treat for exceptional concentricity and straightness
• Thread rolled after heat-treat for approximately 10 times better fatigue strength
• Hex head design with wide-area flange for easy installation and retorquing
• Undercut shorter studs equalize stretch for consistent clamping force
• Includes hardened parallel-ground washers for even load distribution
• Eliminates need for valve train removal during cylinder head retorquing

Why Choose Studs Over Bolts:

Head studs provide superior clamping accuracy compared to bolts because they stretch only on the vertical axis when torqued, rather than experiencing both torsional and tensile loads simultaneously. This results in more accurate torque readings and consistent clamping force. Studs also simplify engine assembly by allowing cylinder heads and gaskets to align properly and glide into position. The undercut design on shorter studs helps prevent head gasket failures by compensating for gasket compression.

Professional Quality:

Each ARP stud undergoes rigorous manufacturing processes that set them apart from competitors. The vertical heat-treat process, centerless grinding, and post-heat-treat thread rolling ensure every fastener meets ARP's zero-defect, zero-failure quality standard. These are the same fasteners trusted by professional engine builders across all forms of motorsports.

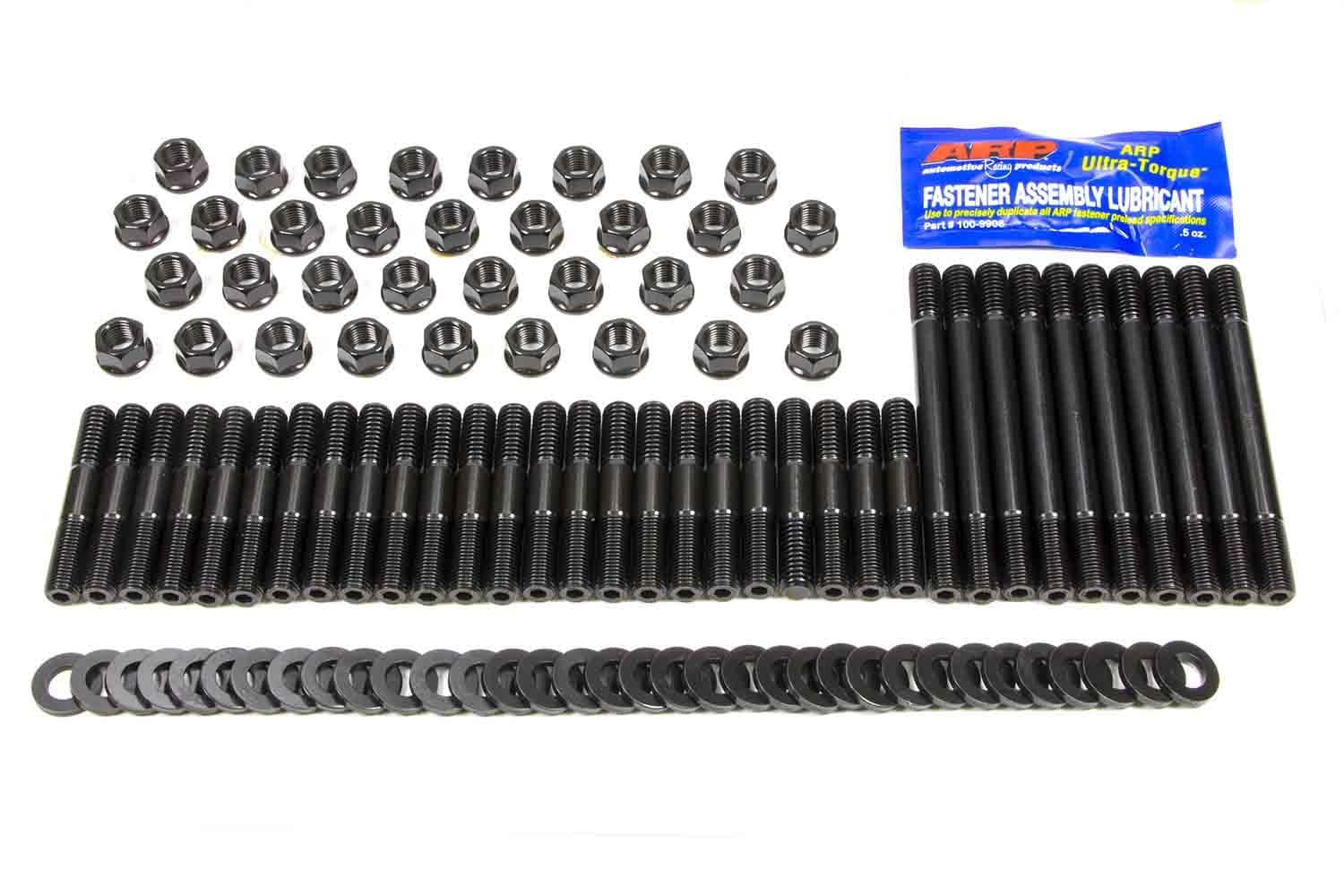

Complete kit includes all necessary studs, nuts, and hardened washers. Always retorque fasteners after initial engine break-in to compensate for head gasket compression.
