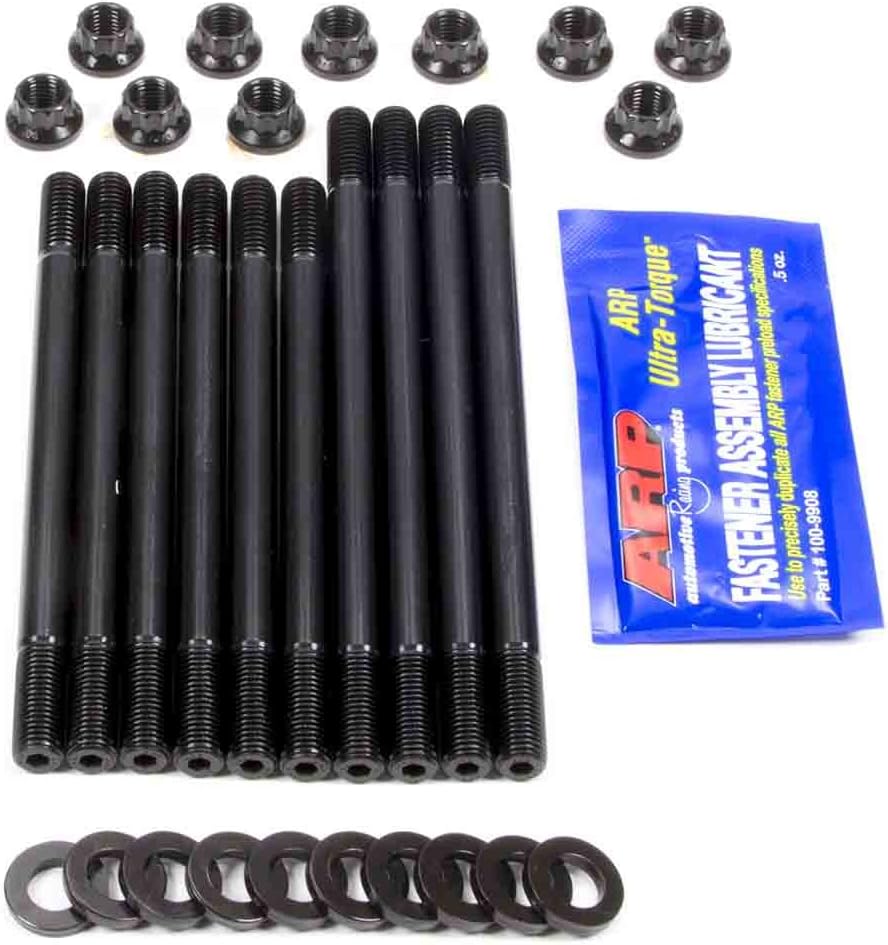

ARP 202-4201 Cylinder Head Stud Kit Chrome Moly - 8740 12-Point

The ARP 202-4201 is a high-performance cylinder head stud kit manufactured from premium grade 8740 chrome moly steel and rated at 200,000 psi tensile strength. This Pro Series head stud kit represents the gold standard in engine fastening technology, trusted by professional engine builders in competitive racing applications.

Advanced Manufacturing Process:

• Precision heat-treated to 200,000 psi using vertical rack placement for complete, uniform heat penetration
• Centerless ground after heat-treat to ensure exceptional concentricity and straightness
• Thread rolled after heat-treat for approximately 1000% better fatigue strength compared to pre-heat-treat threading
• Cold-forged construction maintains molecular integrity throughout the fastener
• Undercut shorter studs equalize stretch for more consistent clamping force

Key Features:

• 12-point head design with reduced wrenching profile
• Wide area flanged head eliminates need for valve train removal during retorquing
• Includes hardened, parallel-ground washers for even load distribution and accurate torque readings
• Permits use of larger diameter valve springs
• Superior concentricity allows gaskets and cylinder heads to align perfectly during assembly

Performance Advantages:

Head studs provide significant benefits over traditional bolts. Unlike bolts, which experience both torsional and tensile stress during installation, studs stretch only along the vertical axis when torque is applied to the nut. This results in more accurate and consistent clamping force. The undercut design on shorter studs compensates for head gasket compression, helping prevent gasket failures and ensuring optimal engine sealing. Studs also simplify engine assembly, particularly important for racing engines requiring frequent servicing.

Installation Note: Studs should be installed finger-tight in a relaxed mode—never cranked in using a jammed nut. After initial torquing and engine run-in, fasteners should be re-torqued to compensate for head gasket compression.

Each ARP stud is marked with the ARP stamp as assurance of quality and adherence to ARP's zero-defect, zero-failure quality standard.
