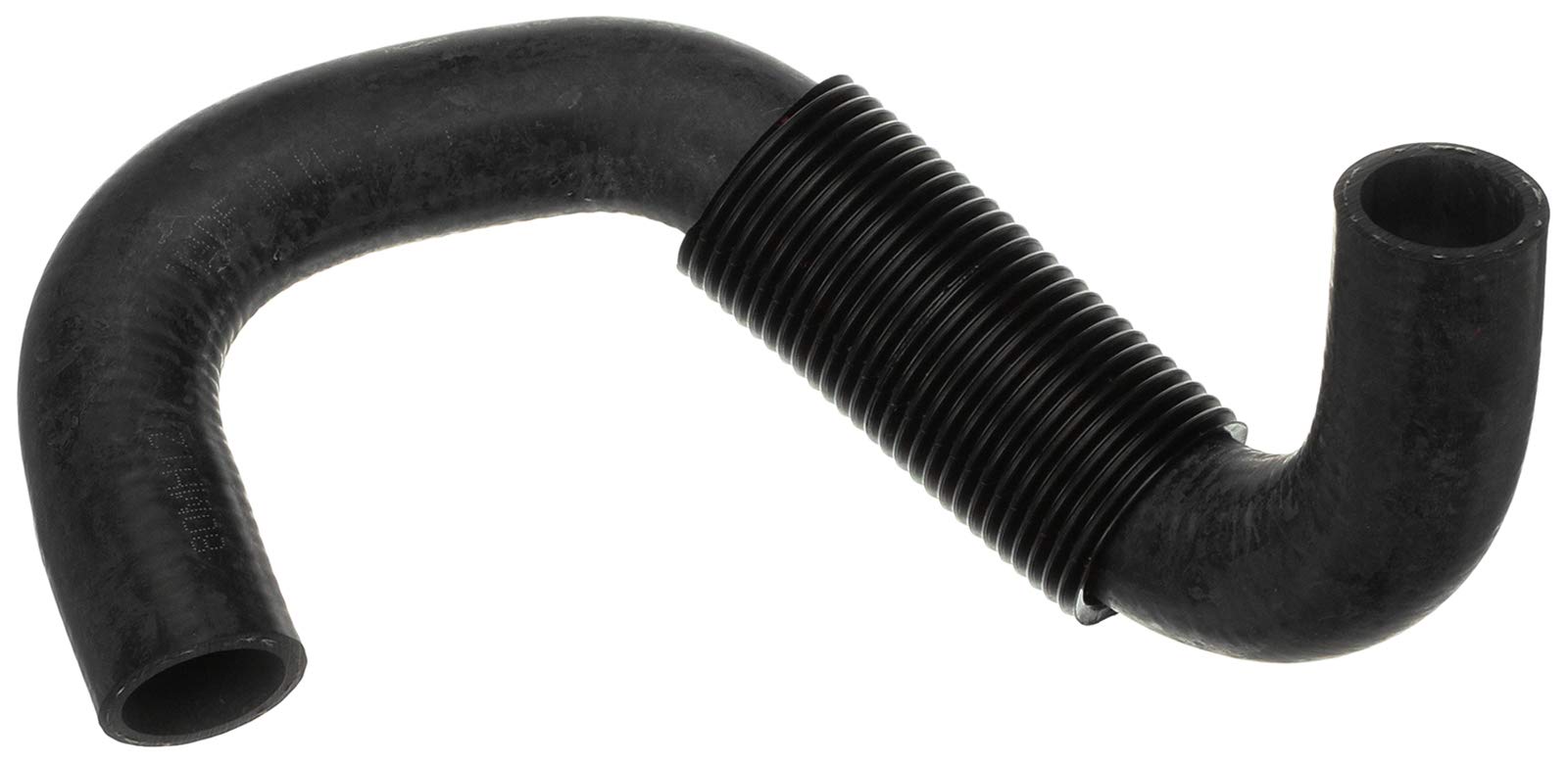

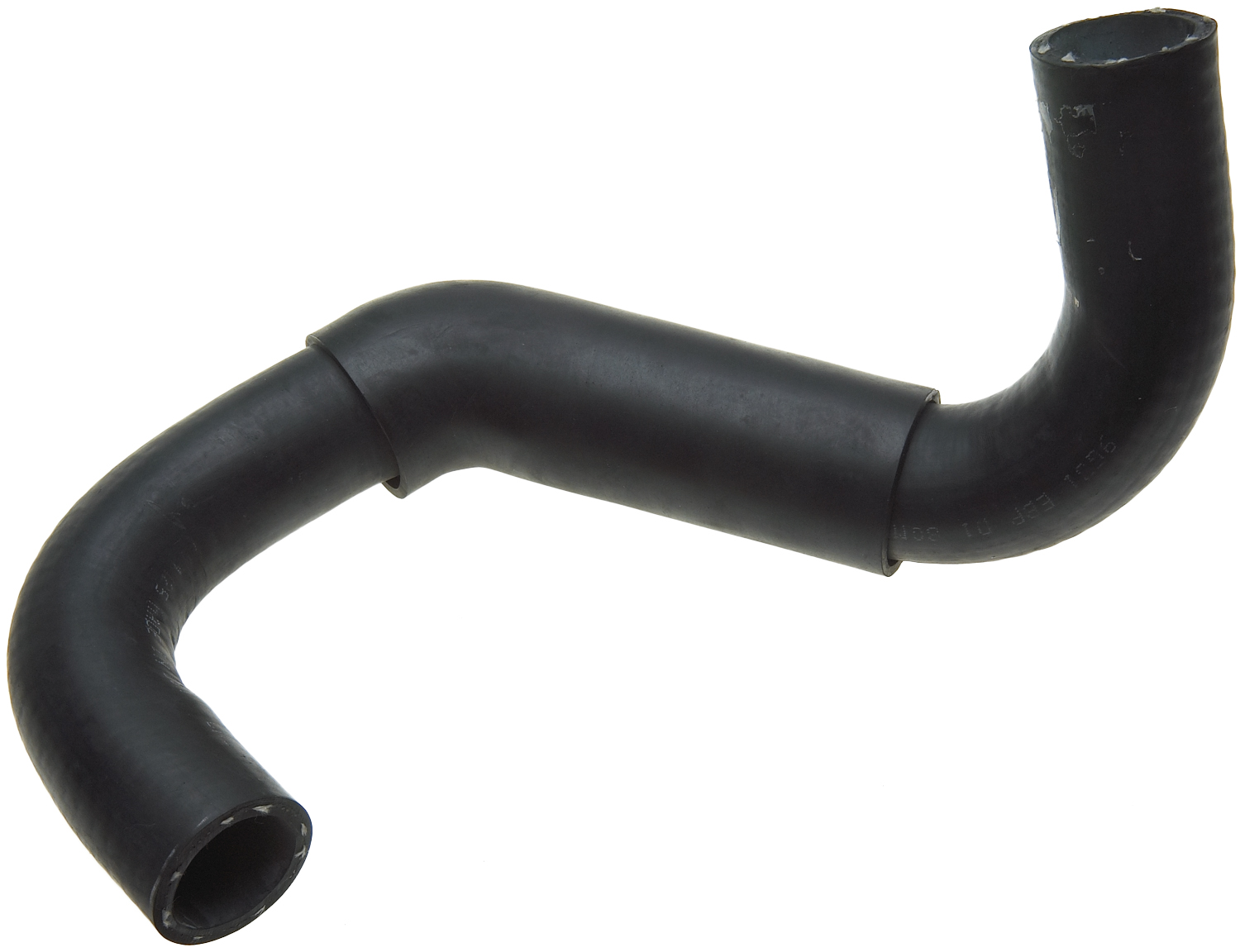

Gates 22461 Lower Radiator Coolant Hose Curved Molded EPDM OE Replacement

The Gates 22461 is a premium molded lower radiator coolant hose engineered as a direct OE replacement. Pre-shaped to match the original routing of your cooling system, this curved hose installs quickly and seals reliably without modification.

Constructed with an EPDM tube and heat-, ozone-, and chemical coolant-resistant EPDM cover reinforced with synthetic fiber knit, this hose is specifically engineered to resist electrochemical degradation (ECD) — the leading cause of coolant hose failure. Its materials also resist vacuum collapse, eliminating the need for an internal spring in most applications.

Key Features:

• Lower radiator hose position
• Centerline length: 18.1 in.
• Inside diameter: 1.14 in. x 1.24 in. (dual-end sizing)
• EPDM tube with synthetic fiber knit reinforcement
• Heat-, ozone-, and chemical coolant-resistant EPDM cover
• Resists vacuum collapse — no internal spring required in most applications
• Engineered to resist electrochemical degradation (ECD)
• Pre-shaped for precise OE fit and perfectly sealed conditions
• Meets SAE 20R4, Class D2 and DIN 73411, Class A requirements
• Temperature range: -40°F to +275°F (-40°C to +135°C)
• Lifetime Gates limited warranty
• Sold individually

Note: Gates recommends replacing hose clamps each time a new coolant hose is installed. Not intended for fuel or oil transfer applications.
