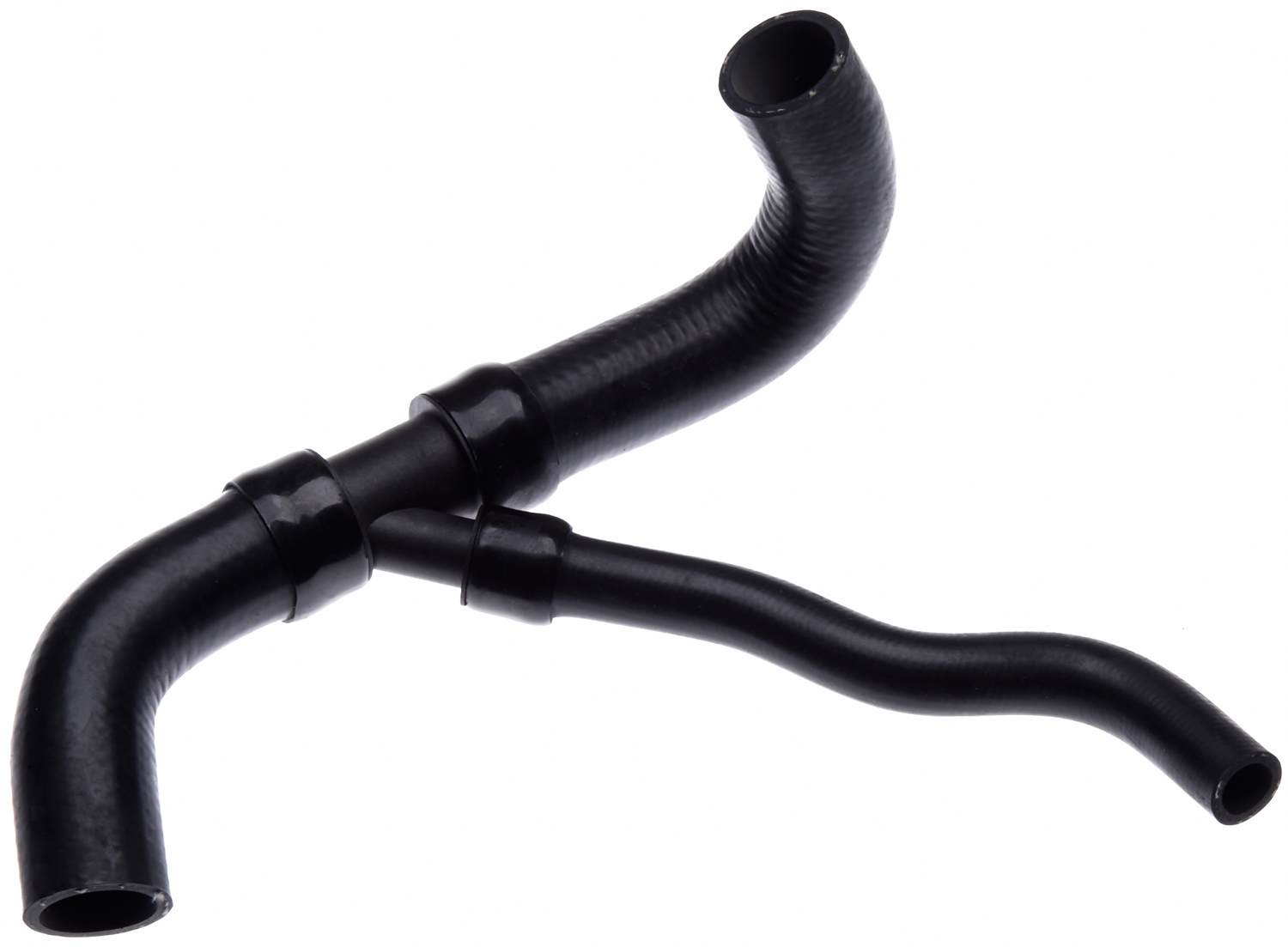

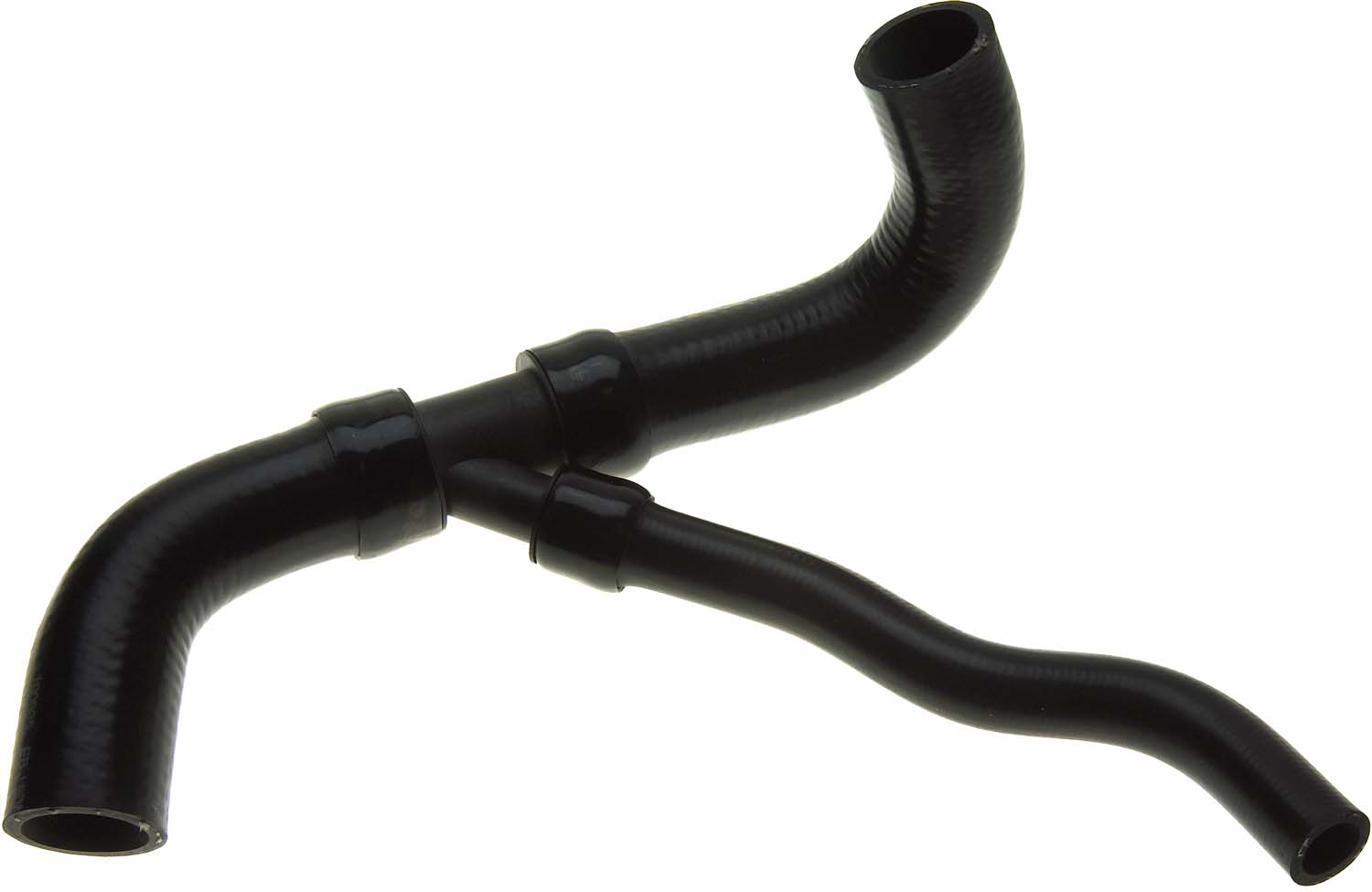

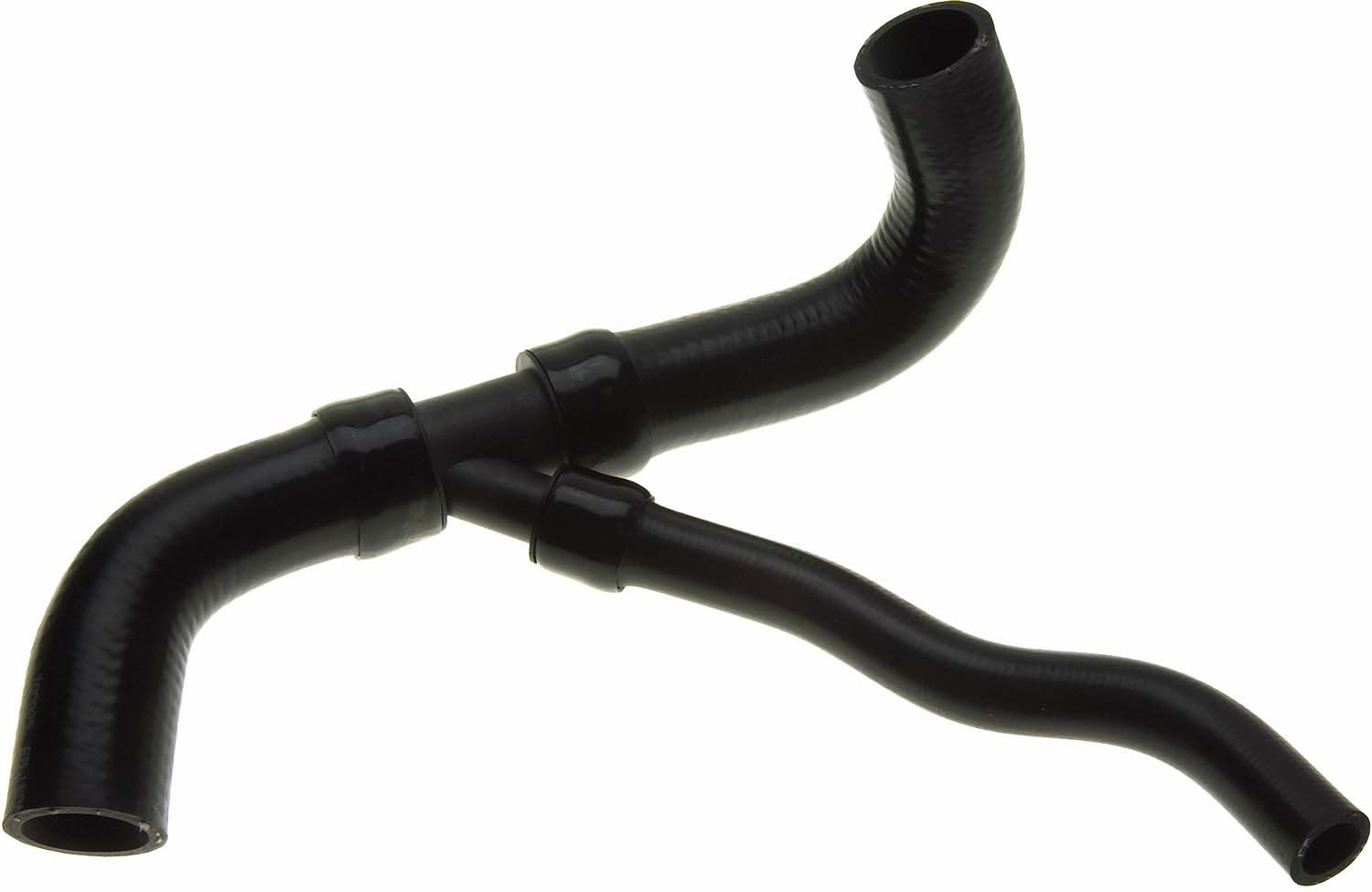

Gates 22095 Premium Modular Lower Radiator Coolant Hose

The Gates 22095 is a premium modular lower radiator coolant hose engineered as a direct OE replacement for select Chevrolet vehicles. Designed to restore proper coolant flow between the radiator and engine, this hose helps regulate operating temperature and protect against overheating.

As part of Gates' modular coolant hose lineup, the 22095 is application-specific and built to match OEM geometry and integrated components — including hose branches and connectors — for a precise, leak-free fit right out of the box.

Key Features:

• Construction: EPDM tube with synthetic fiber knit reinforcement and heat-, ozone-, and chemical coolant-resistant EPDM cover
• Modular Design: Includes OEM-matched integrated components such as branch connectors for a factory-correct installation
• Electrochemical Degradation Resistance: Engineered with compounds that resist ECD — the leading cause of coolant hose failure
• Vacuum Collapse Resistance: Re-engineered materials maintain hose shape and flow under operating vacuum
• Temperature Range: -40°F to +257°F (-40°C to +125°C)
• SAE Compliance: Meets SAE 20R3 EC Class D1 (under 1 in. ID) and SAE 20R4 EC Class D1 (1 in. ID and over)
• Location: Lower radiator hose
• Color/Finish: Black
• Centerline Length: 16.82 in.
• End 1 Inside Diameter: 1.25 in.
• End 2 Inside Diameter: 1.31 in.
• End 3 Inside Diameter: 0.72 in.
• Sold: Individually
• Warranty: Lifetime Gates limited warranty

Cross Reference Numbers: C71581, 22568673, 8775, 10145729, 71581, 947, 22296M, 61763

Gates recommends replacing hose clamps each time a new coolant hose is installed. Not for use in fuel or oil transfer applications.
