Gates 19188 Premium Molded Heater Hose Small I.D. OE Replacement

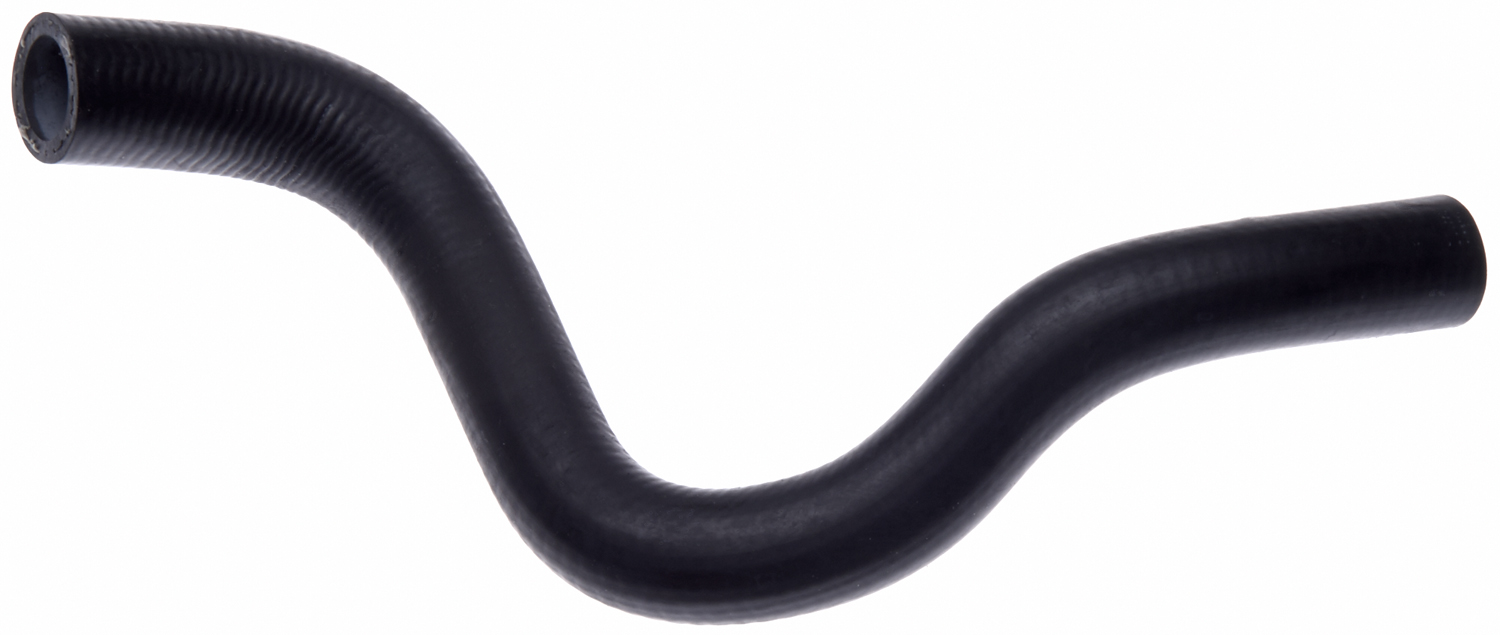

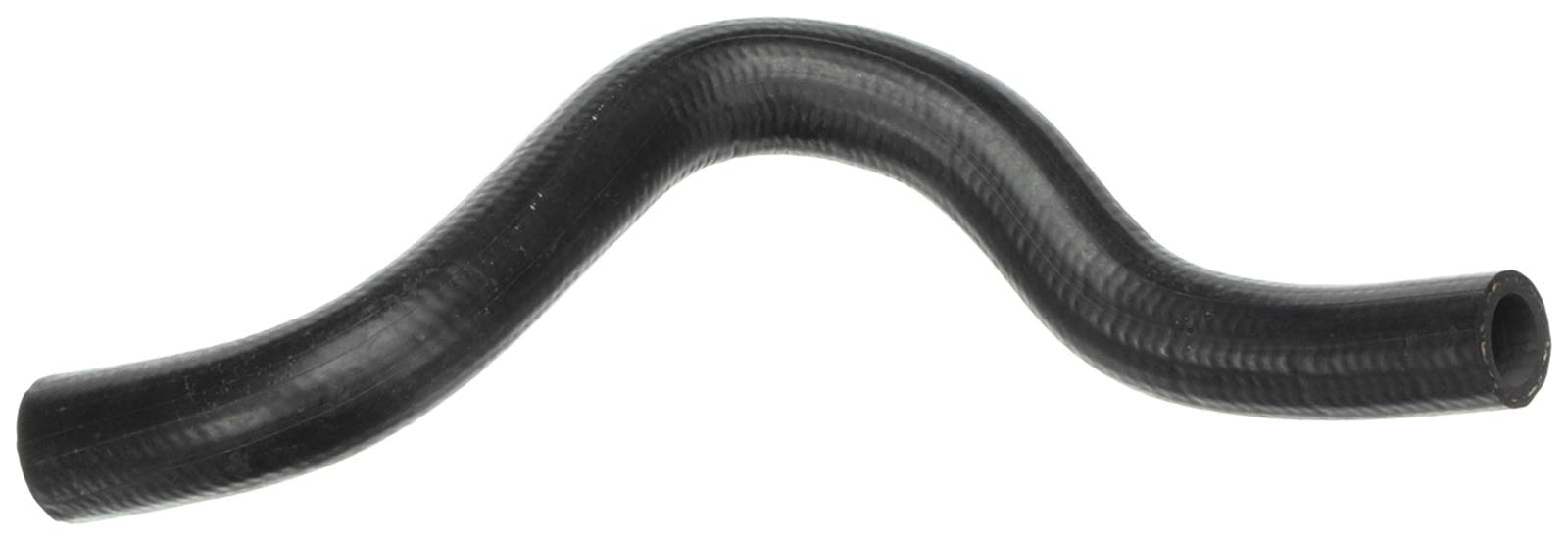

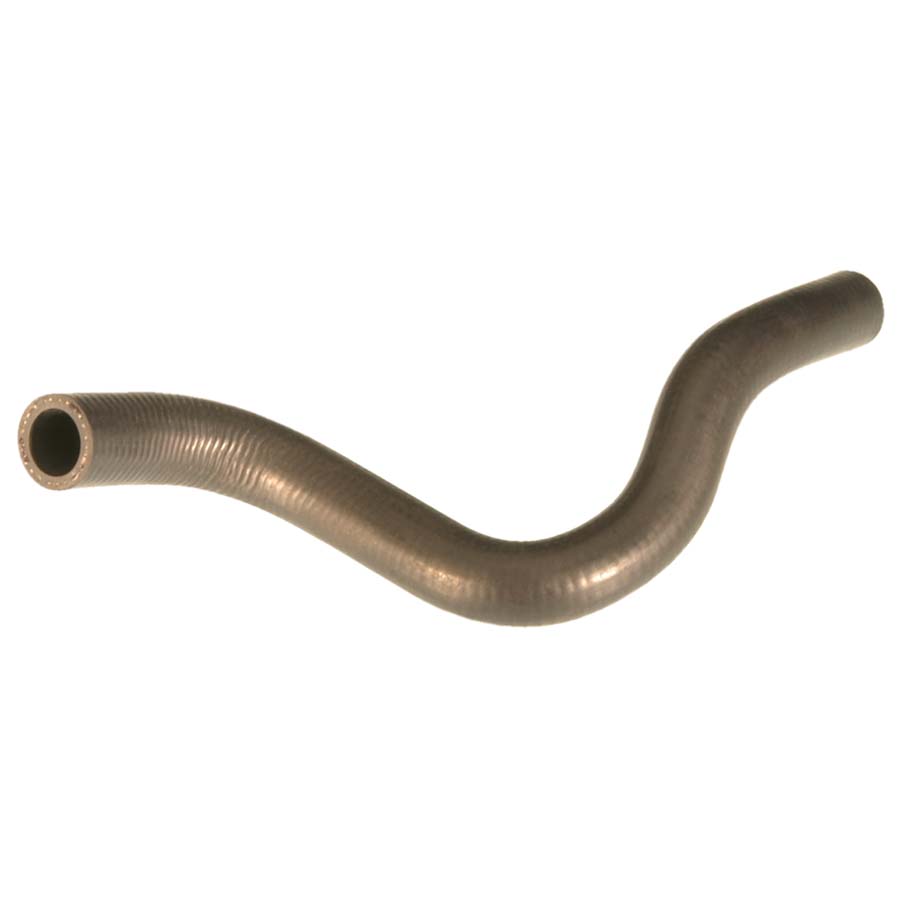

The Gates 19188 is a factory-molded, small I.D. coolant hose engineered as a direct OE replacement for today's tighter, more compact engine compartments. With a centerline length of 12-11/16 inches (322mm) and stepped inside diameters of 5/8 in. (16mm) on one end and 3/4 in. (19mm) on the other, this hose connects the heater core to the heater pipe with a precise, leak-free fit.

Constructed with an EPDM tube, synthetic fiber knit reinforcement, and an EPDM outer cover, this hose resists heat, ozone, and electrochemical degradation — the leading cause of premature hose failure. It is suitable for coolant, water, and air applications, and is also approved for marine use.

Key Features:

• Factory-molded OE-style design for precise fitment in tight engine compartments
• EPDM tube and cover with synthetic fiber knit reinforcement
• Engineered to resist electrochemical degradation
• Meets SAE 20R3 Type EC Class D-1 and D-2 specifications
• Temperature range: -40°F to 275°F (-40°C to 135°C)
• Approved for coolant, water, air, and marine applications
• Centerline length: 12-11/16 in. (322mm)
• Inside diameter: 5/8 in. (16mm) x 3/4 in. (19mm)
• Sold individually
• Gates limited lifetime warranty

Installation Note: Gates recommends replacing hose clamps each time a new coolant hose is installed. Not intended for use in fuel or oil transfer applications.

Cross Reference: NAPA 11188
