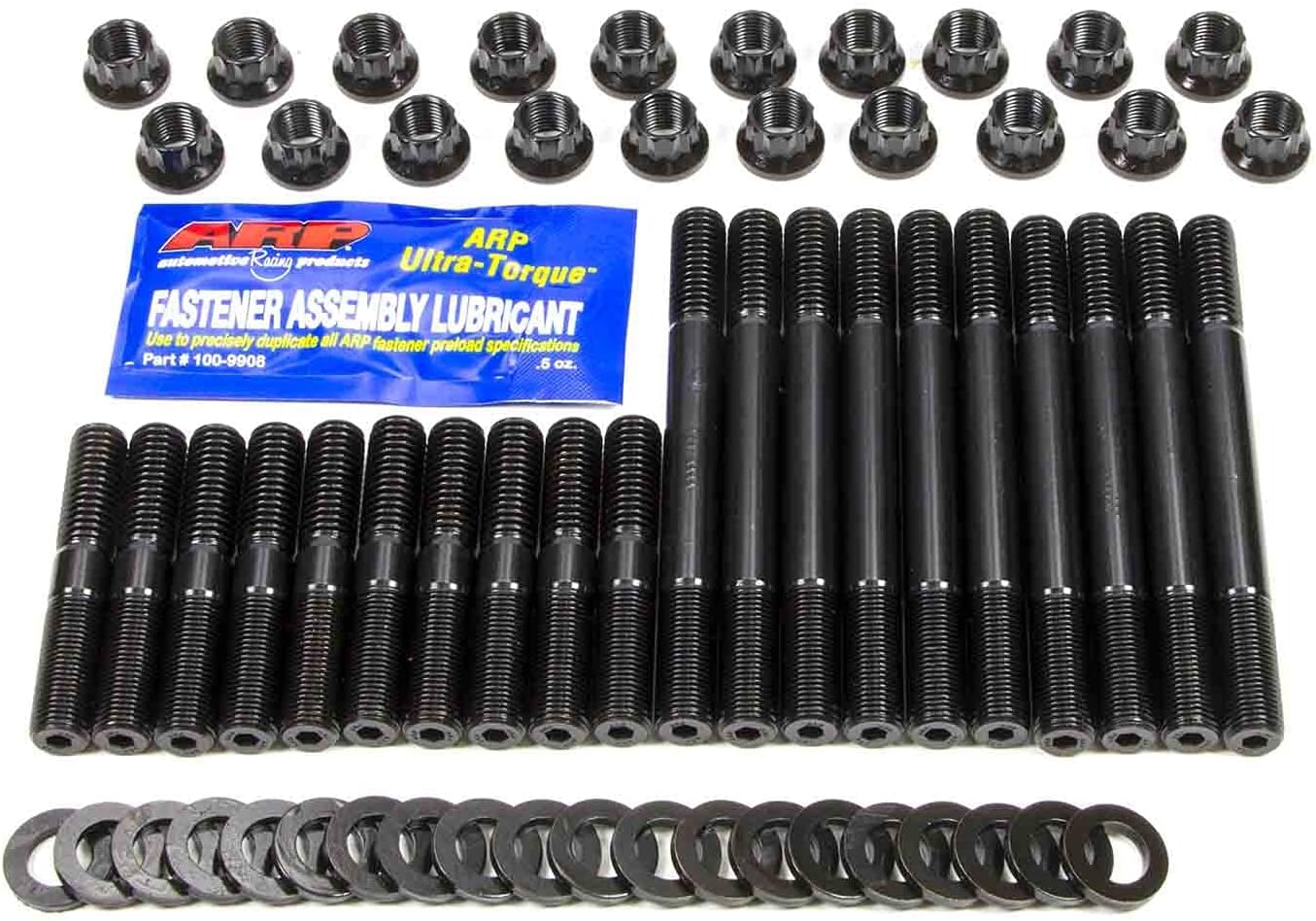

ARP 144-4204 Cylinder Head Stud Kit Chrome Moly - 8740 12-Point

The ARP 144-4204 is a high-performance cylinder head stud kit engineered for professional engine builders and serious enthusiasts who demand maximum clamping force and reliability. Built from premium 8740 chrome moly steel and heat-treated to 200,000 psi, these head studs deliver superior strength and durability compared to standard head bolts.

Key Features:

• Premium 8740 chrome moly alloy rated at 200,000 psi tensile strength
• 12-point head design for precise torque application
• Vertically rack heat-treated for complete and consistent heat penetration
• Centerless ground after heat-treat for exceptional concentricity and straightness
• Thread rolled after heat-treat for 10x better fatigue strength
• Includes hardened parallel-ground washers for even load distribution
• Specially undercut short studs (where applicable) to equalize stretch and clamping force

Why Choose Studs Over Bolts:

Head studs offer significant advantages over conventional head bolts for performance applications. Studs provide more accurate and consistent torque loading because they stretch only on the vertical axis when the nut is torqued, unlike bolts which experience both torsional and tensile stress simultaneously. This results in more uniform clamping force across the cylinder head surface. Studs also simplify engine assembly by ensuring perfect alignment of the cylinder head and gasket during installation.

Manufacturing Excellence:

Each ARP stud undergoes precision manufacturing processes that set the industry standard. The vertical rack heat-treatment ensures uniform properties throughout each fastener, while the post-heat-treat centerless grinding process involves multiple precision cuts to achieve near-perfect concentricity. This attention to detail means cylinder heads and gaskets slide into position effortlessly with perfect alignment.

Installation Notes:

Install studs finger-tight in a relaxed mode—never force them in using a jammed nut. Apply torque only to the nut, allowing the stud to stretch uniformly along its vertical axis. Re-torque all fasteners after initial engine run-in to compensate for head gasket compression and ensure optimal sealing.

ARP Pro Series fasteners meet the zero-defect, zero-failure quality standard demanded by top professional engine builders across all forms of motorsports. Each stud is stamped with the ARP logo as your assurance of quality and authenticity.
