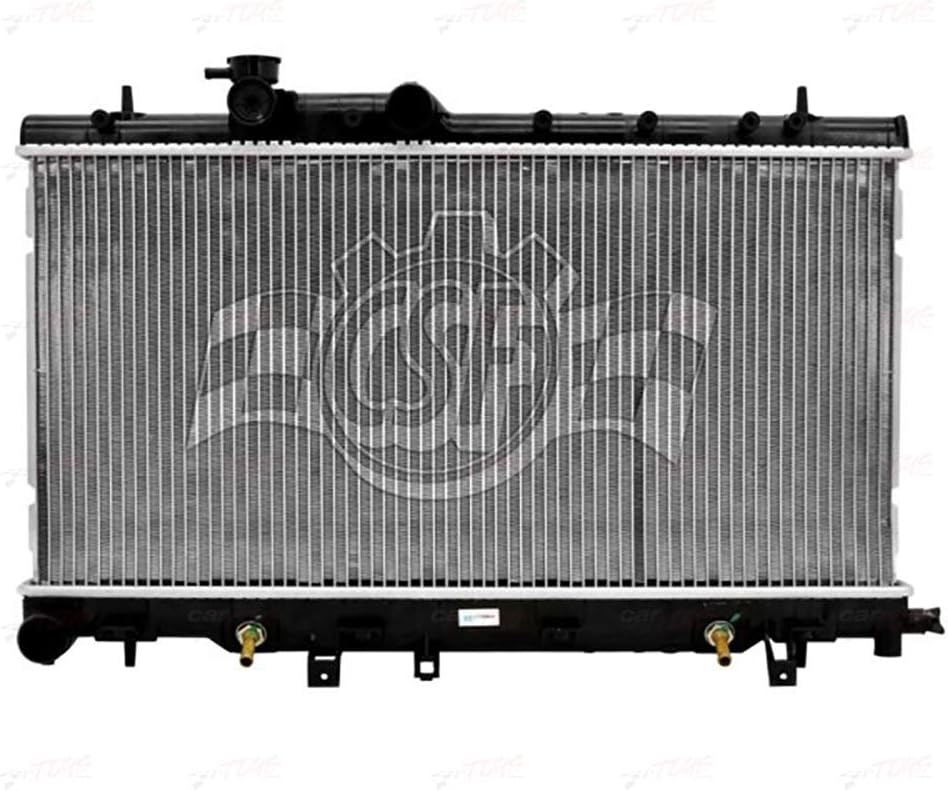

CSF 3003 Aluminum Radiator with Plastic Tanks 1-Row OE Replacement

The CSF 3003 is a direct-fit OE replacement radiator engineered to the highest specifications for seamless installation. This single-row radiator features a durable aluminum core with plastic end tanks, designed to match the exact materials and dimensions of the original equipment radiator.

Key Specifications:

• Core dimensions: 13.75 x 27.25 x 0.62 inches
• 1-row aluminum core construction
• Plastic end tanks with natural finish
• Inlet tank size: 27.19 x 1.56 inches
• Outlet tank size: 27.19 x 1.94 inches
• Top center hose fitting: 1.5 inches
• Bottom left hose fitting: 1.5 inches
• Integrated transmission oil cooler (14.75 inches)

Features & Benefits:

• Direct bolt-in replacement requiring no modifications
• No need to relocate fittings, drill holes, or stretch hoses
• Built-in automatic transmission cooler for enhanced cooling performance
• Precision-engineered to OEM specifications
• Backed by a 2-year CSF limited warranty

This radiator replaces OEM part numbers 45111FE050, 45111FE051, 45111FE080, and 45111FE081. Each unit is sold individually and ships ready to install.
