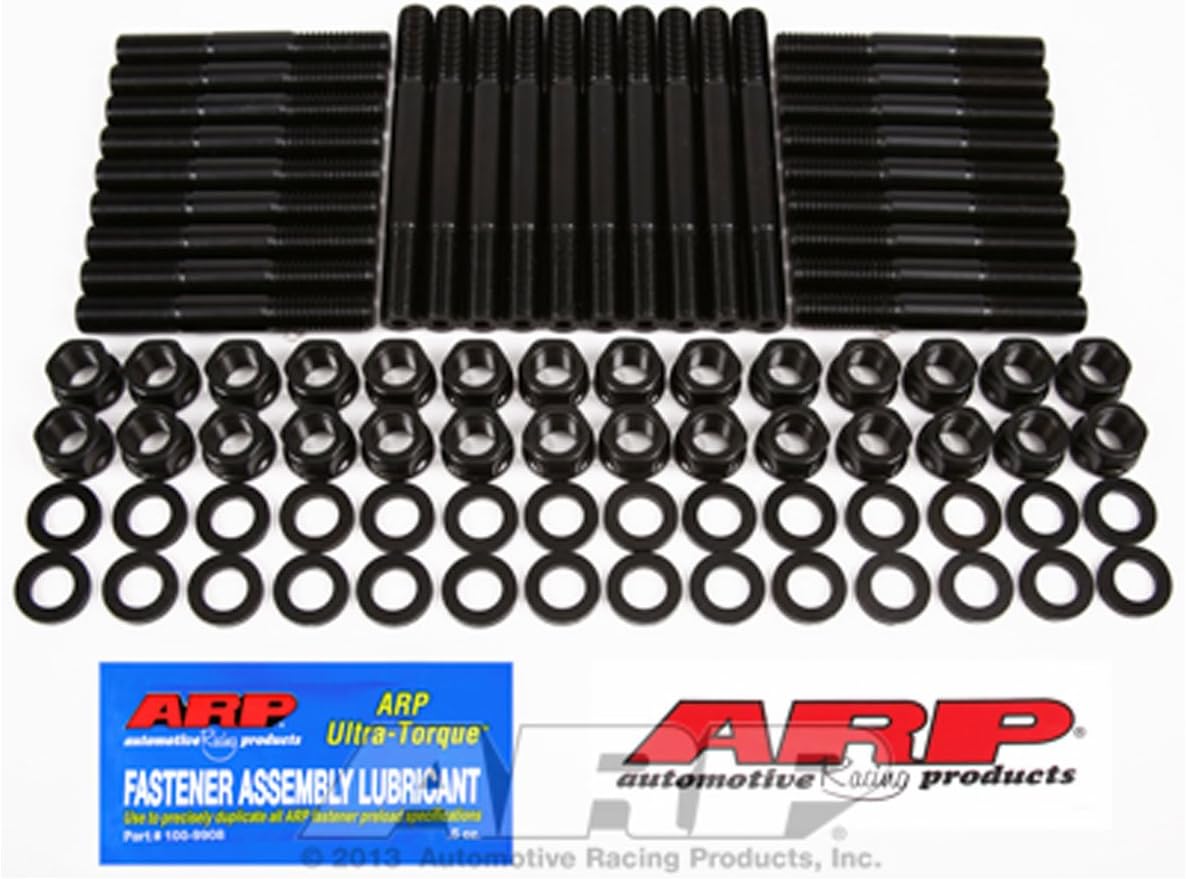

ARP 114-4002 High Performance Cylinder Head Stud Kit Chrome Moly - 8740

(1968-1974 American Motors Javelin; 1968-1974 American Motors AMX; 1968-1974 American Motors Ambassador; 1969-1970 American Motors Rebel + 1 more model)

Manufacturer

Part Number

114-4002
Black Friday Price

$223.98

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ARP 114-4002 is a high-performance cylinder head stud kit engineered for serious engine builds. Manufactured from premium 8740 chrome moly steel, these studs are heat-treated to 200,000 psi tensile strength, providing superior clamping force and reliability under extreme conditions.

Key Features:

  • Premium 8740 chrome moly steel alloy rated at 200,000 psi tensile strength
  • Vertical rack heat-treatment ensures complete and uniform heat penetration
  • Centerless ground for exceptional concentricity and straightness
  • Threads rolled after heat-treat for 10x better fatigue strength
  • Hex head design with hardened parallel-ground washers included
  • Undercut shorter studs equalize stretch for consistent clamping force
  • Helps prevent head gasket failure through optimized load distribution

Manufacturing Excellence:

Each stud undergoes precision centerless grinding with multiple passes to achieve near-perfect concentricity. This exacting process ensures cylinder heads and gaskets align effortlessly during assembly. The thread rolling process occurs after heat-treatment, which significantly increases fatigue resistance compared to pre-heat-treat threading used by competitors.

Why Studs Over Bolts:

Studs provide more accurate and consistent torque loading because they stretch only along the vertical axis when torqued, unlike bolts which experience both torsional and tensile forces simultaneously. This results in more uniform clamping pressure across the head gasket. Studs also simplify engine assembly by ensuring proper alignment of cylinder heads and gaskets.

Installation:

Install studs finger-tight in a relaxed mode—never force them in with a jammed nut. Apply torque to the nut according to manufacturer specifications. Always re-torque after initial engine operation to compensate for head gasket compression.

Trusted by professional engine builders across all forms of racing, ARP head studs represent the highest quality fasteners available for critical engine applications.

Products specifications

Fits

1968-1974 American Motors Javelin; 1968-1974 American Motors AMX; 1968-1974 American Motors Ambassador; 1969-1970 American Motors Rebel; 1971-1976 American Motors Matador

Cut to Fit

No

Fastener Finish

Black oxide

Fastener Material

8740 chromemoly

Fastener Style

Stud

Head Style

Hex

Quantity

Sold as a kit.

Washers Included

Yes
