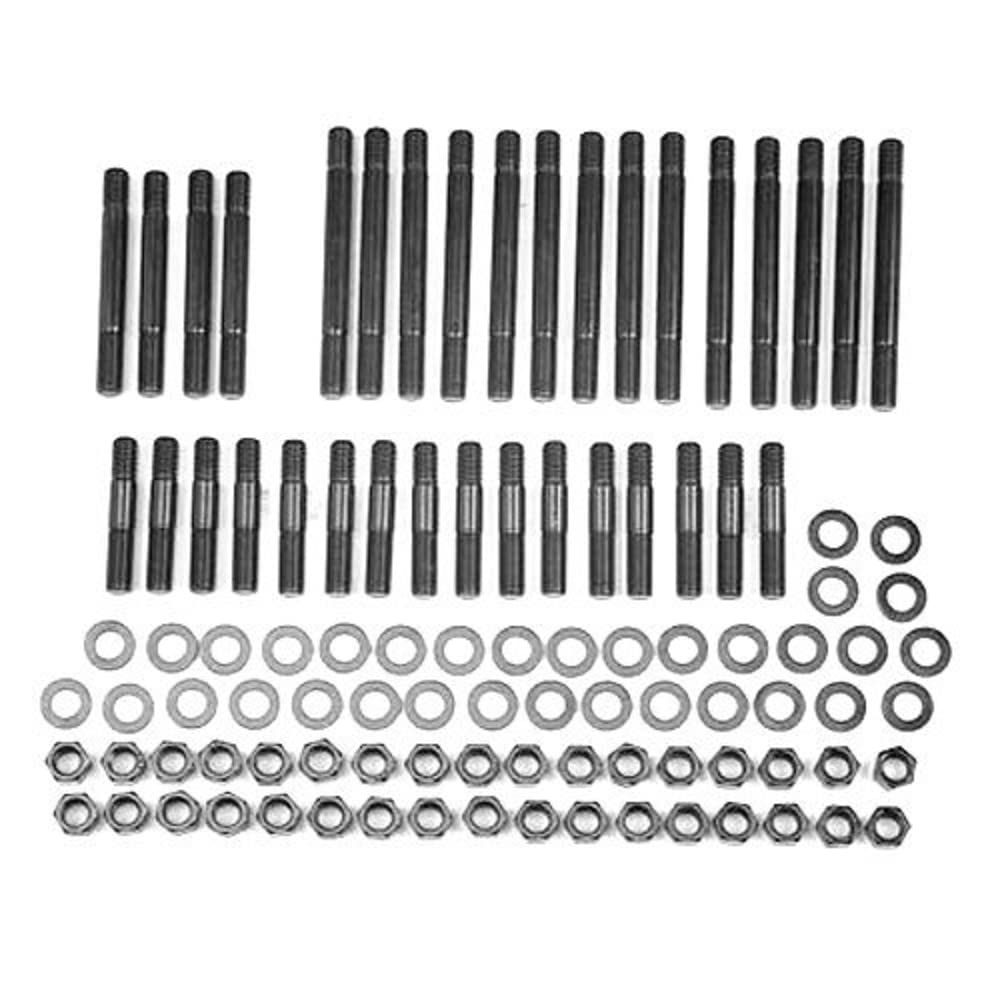

ARP 234-4333 Cylinder Head Stud Kit Chrome Moly - 8740 12-Point

The ARP 234-4333 is a professional-grade cylinder head stud kit engineered for high-performance and racing applications. Manufactured from premium 8740 chrome moly steel, these studs are precision heat-treated to 200,000 psi using a vertical rack process that ensures complete and uniform heat penetration throughout each fastener.

Key Features:

• Premium 8740 chrome moly alloy rated at 200,000 psi tensile strength
• 12-point head design with wide-area flange for easy installation and retorquing
• Centerless ground after heat-treat for exceptional concentricity and straightness
• Thread rolled after heat-treat for 10x better fatigue strength than pre-threaded fasteners
• Includes hardened parallel-ground washers for even load distribution
• Specially undercut shorter studs equalize stretch and clamping force

Why Choose Studs Over Bolts:

Head studs provide superior clamping accuracy because they stretch only along the vertical axis during torquing, unlike bolts which experience both torsional and tensile loads simultaneously. This results in more consistent torque readings and better head gasket sealing. Studs also simplify engine assembly by ensuring perfect alignment of the cylinder head and gasket during installation.

Installation Notes:

Install studs finger-tight in a relaxed state—never use a jammed nut to force them in. The 12-point head design and wide flange eliminate the need for valve train removal when retorquing cylinder heads. Always retorque fasteners after initial engine run-in to compensate for head gasket compression.

ARP's exacting manufacturing tolerances ensure that cylinder heads and gaskets glide smoothly into position with perfect alignment. Each fastener is individually marked with the ARP stamp as your assurance of zero-defect quality and proven performance in professional racing applications.
