June Sale: $184.21
In Stock
May ship from manufacturer
Free Shipping
Part number: 26915-16
Product Details

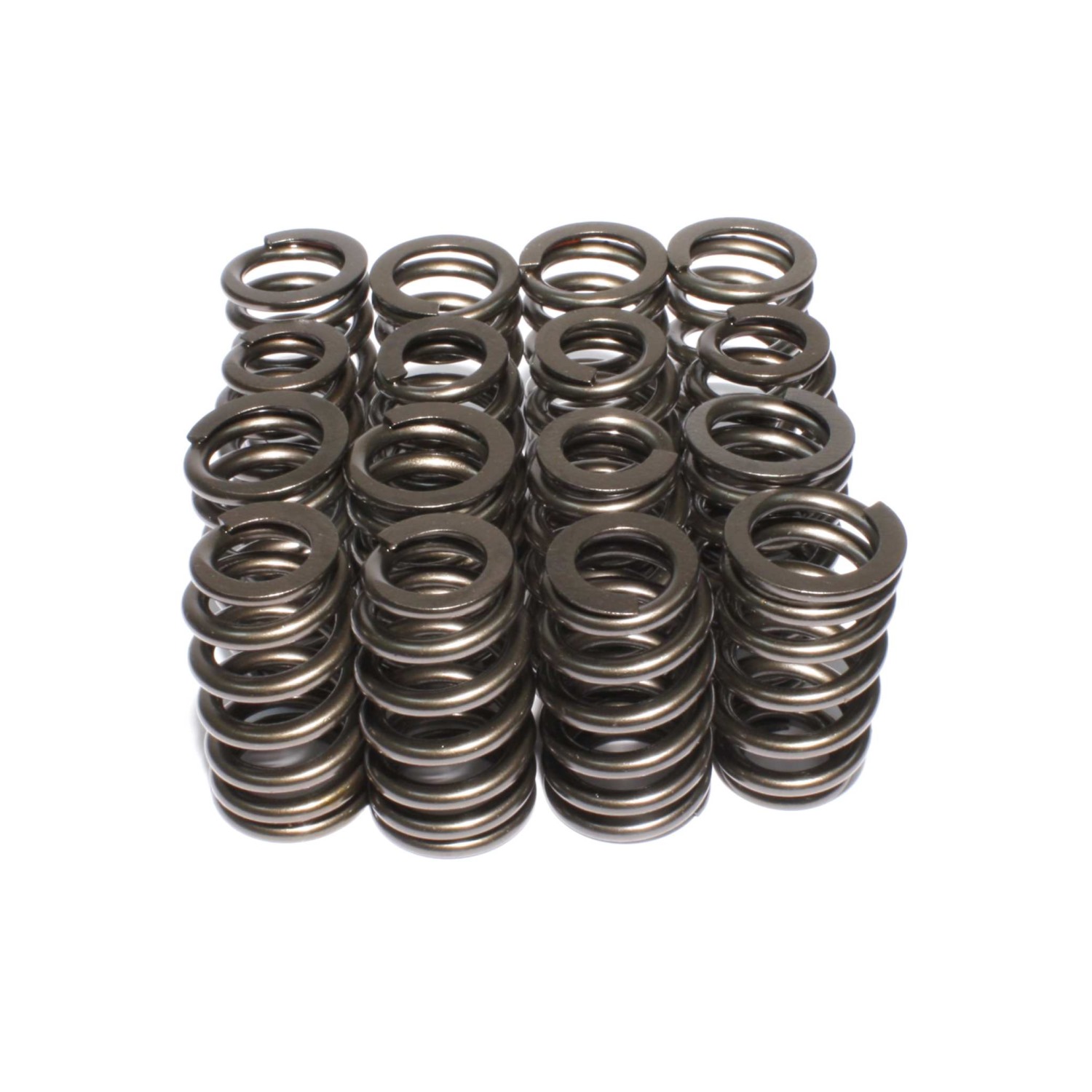

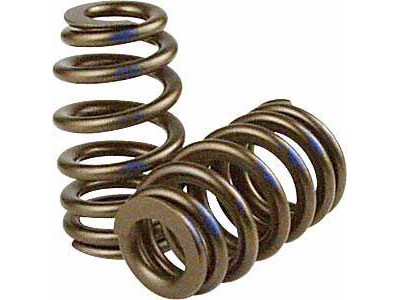

Comp Cams 26915-16 Beehive Performance Street Valve Springs
Products specifications
Coated No
Coil Bind Height (in) 1.140 in.
Damper Spring Included No
Inside Diameter of Outer Spring (in) 0.650 in.
Notes O.D. at top of spring is 1.055 in. and I.D. at top is 0.650 in.
Number of Springs Per Valve Single
Outside Diameter of Outer Spring (in) 1.290 in.
Quantity Sold as a set of 16.
Spring Rate (lbs/in) 313 lbs./in.
Valve Spring Style Beehive
Title 26915-16 Valve Springs, Performance GM LS1
Position N/A
Spring Type OEM
Camshaft Type OEM
Coil Bind Height (in.) 1.14
Inside Diameter (in.) 0.660/0.885
Installed Height (in.) 1.8
Installed Pressure (lbs.) 105
Open Height (in.) 1.2
Open Pressure (lbs.) 293
Outside Diameter (in.) 1.055/1.29
Spring Rate (lbs./in.) 313

With a .600 inch maximum lift, these BeehiveValve Springs were designed for hydraulic roller cams. COMP Cams BeehiveValve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehiveshape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehivedesign, the valve train can handle more RPM and more aggressive cam profiles.

  • Originally designed for LS engine applications but will work in 5.7L Hemi engines and many others
  • .600 inch maximum lift, 1.290 inch O.D.
  • Designed for hydraulic roller cams
  • O.D.: 1.055 inch (Top) 1.290 inch (Bottom), I.D.: .650 inch (Top) .885 inch (Bottom)
  • Seat pressure: 105 lbs. @ 1.800 inch, Open Pressure: 293 lbs. @ 1.200 inch
Reviews
Add your review
T
Great Price on products and Shipping
M
Fast shipping, Good communication, Highly recommended.!!!
A
Great Prices
P
Nice and quick and good price.....
Fitment
Buick Allure
2009 Buick Allure ALL
2008 Buick Allure ALL
2007 Buick Allure ALL
2006 Buick Allure ALL
2005 Buick Allure ALL
Buick Commercial Chassis
1996 Buick Commercial Chassis ALL
1995 Buick Commercial Chassis ALL
Buick LaCrosse
2009 Buick LaCrosse ALL
2008 Buick LaCrosse ALL
2007 Buick LaCrosse ALL
2006 Buick LaCrosse ALL
2005 Buick LaCrosse ALL
Buick LeSabre
2005 Buick LeSabre ALL
2004 Buick LeSabre ALL
2003 Buick LeSabre ALL
2002 Buick LeSabre ALL
2001 Buick LeSabre ALL
2000 Buick LeSabre ALL
1999 Buick LeSabre ALL
1998 Buick LeSabre ALL
1997 Buick LeSabre ALL
1996 Buick LeSabre ALL
Buick Lucerne
2008 Buick Lucerne ALL
2007 Buick Lucerne ALL
2006 Buick Lucerne ALL
Buick Park Avenue
2005 Buick Park Avenue ALL
2004 Buick Park Avenue ALL
2003 Buick Park Avenue ALL
2002 Buick Park Avenue ALL
2001 Buick Park Avenue ALL
2000 Buick Park Avenue ALL
1999 Buick Park Avenue ALL
1998 Buick Park Avenue ALL
1997 Buick Park Avenue ALL
1996 Buick Park Avenue ALL
Buick Regal
2004 Buick Regal ALL
2003 Buick Regal ALL
2002 Buick Regal ALL
2001 Buick Regal ALL
2000 Buick Regal ALL
1999 Buick Regal ALL
1998 Buick Regal ALL
1997 Buick Regal ALL
1996 Buick Regal ALL
1987 Buick Regal ALL
1986 Buick Regal ALL
1985 Buick Regal ALL
1984 Buick Regal ALL
Show All Vehicle Fitments
