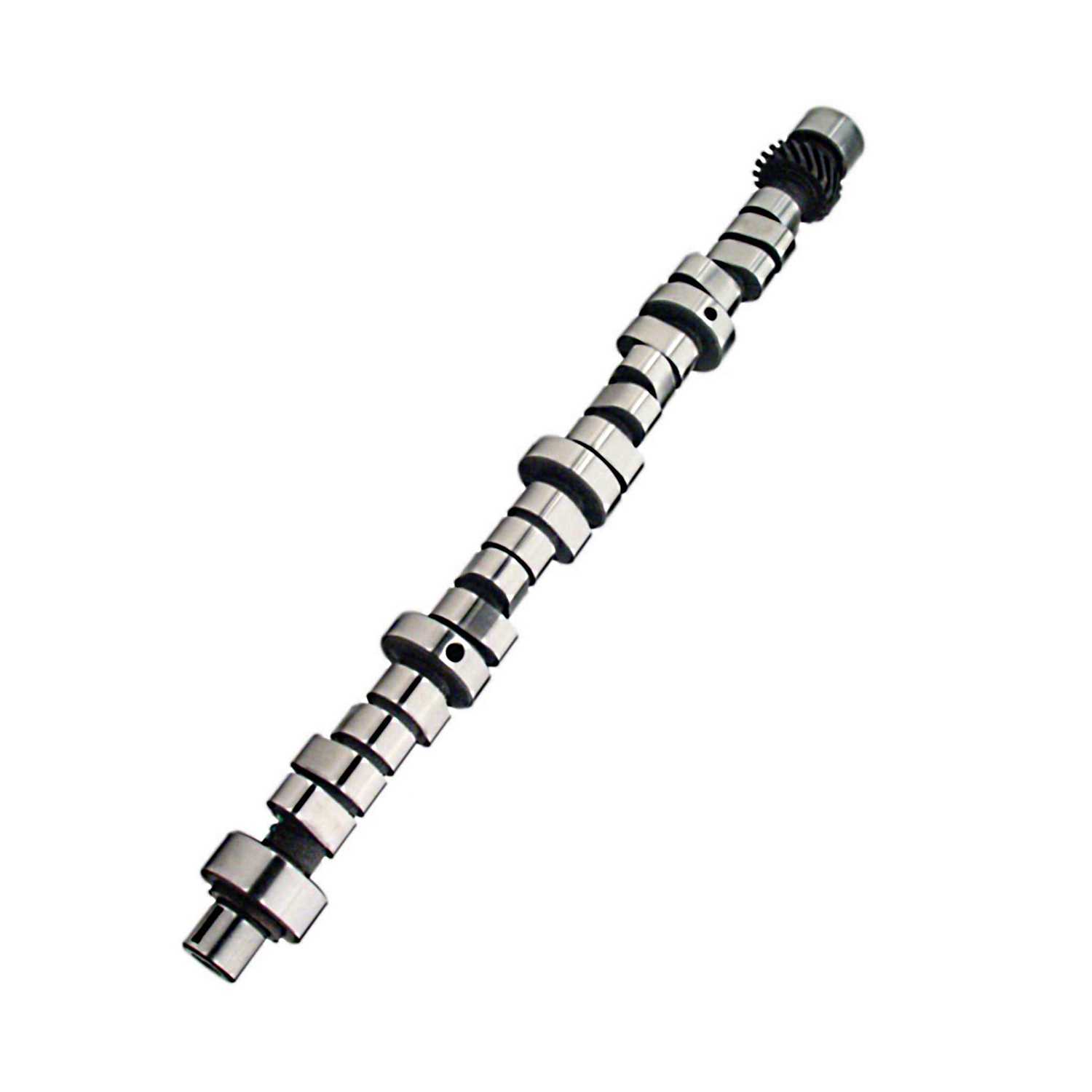

COMP Cams 20-746-9 XE Computer Controlled Hydraulic Roller Camshaft Chrysler Magnum - 216/224

(Jeep Grand Cherokee 1993-98, Grand Wagoneer 1993; Dodge Durango 1998-2002, Ram 2500 1994-2002, Ram 1500 1994-2003, Dakota 1989-2002 + 125 more models)

Part of: COMP Cams XE Computer Controlled Hydraulic Roller Camshaft Chrysler Magnum

Other options in this family: COMP Cams 20-745-9 COMP Cams 20-744-9

Manufacturer

Picture for manufacturer COMP Cams

Part Number

20-746-9
7 reviews
Sale Price

$558.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 20-746-9 XE series hydraulic roller camshaft is specifically engineered for Chrysler Magnum V8 engines with computer-controlled systems. This performance camshaft delivers a significant power increase while maintaining compatibility with factory fuel injection and emissions equipment.

Camshaft Specifications:

  • Advertised Duration: 276°/284° intake/exhaust
  • Duration at .050": 216°/224° intake/exhaust
  • Valve Lift: .477"/.480" intake/exhaust (with 1.6:1 rocker ratio)
  • Lobe Separation Angle: 110°
  • Hydraulic roller design for reduced friction and increased durability
  • Computer-controlled compatible - works with factory ECU

Performance Characteristics:

  • Power range: 1,500-5,500 RPM
  • Smooth idle quality with mild lope
  • Excellent low-end and mid-range torque
  • Designed for stock to mildly modified engines
  • Works with factory torque converters and rear gears

This camshaft is an excellent choice for street-driven Dodge Ram trucks and Durango SUVs equipped with 5.2L or 5.9L Magnum engines. The XE designation indicates COMP Cams' Xtreme Energy profile, which provides maximum performance within the given duration range. Compatible with factory valve springs in most applications, though spring upgrade is recommended for sustained high-RPM use.

Application Note: Designed for 1992-2003 Chrysler Magnum 5.2L (318ci) and 5.9L (360ci) engines. Requires compatible hydraulic roller lifters (not included). Professional installation and ECU tuning recommended for optimal performance.

Products specifications

Fits

Jeep Grand Cherokee 1993-98, Grand Wagoneer 1993; Dodge Durango 1998-2002, Ram 2500 1994-2002, Ram 1500 1994-2003, Dakota 1989-2002, Charger 1966-78, Challenger 1970-74, Ram 3500 1994-2002, Dart 1964-77, 1980-82 + 121 more models

Grind Number

XR265HR-14

Engine Family

Chrysler 273-360 c.i. 8 Cylinder (1964-2002)

Exhaust Valve Lift

0.506

Intake Valve Lift

0.506

Camshaft Series

Xtreme Energy Computer Controlled

AMAZON ASIN

B000P5B8HO

Usage

Street/Performance

Assembly Lubricant Included

No

Camshaft Gear Attachment

1-Bolt

Lifters Included

No

Valve Springs Required

Yes

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Advertised Intake Duration

265

LOBE SEPARATION

114

Lifter Type

Hydraulic Roller

Cam Type

Hydraulic Roller

Camshaft Material

Billet Steel

Advertised Exhaust Duration

273

Basic Operating RPM Range

1,200-5,400

Exhaust Duration at .050 inch Lift

224

Intake Duration at .050 Inch Lift

216
