Derale Performance 13614 Series 9000 17-Row Plate and Fin Transmission Cooler Kit

(Ford F-150 1975-77, F-250 1953-77, Bronco 1966-72, 1974-77, F-350 1953-77, F-100 1953-77, Ranchero 1957-71, 1975-77, E-350 Econoline 1975-77 + 73 more models)

Manufacturer

Part Number

13614
Black Friday Price

$128.46

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Derale Performance 13614 Series 9000 transmission cooler kit delivers efficient cooling protection for light to medium-duty applications and occasional towing. This 17-row plate and fin cooler features furnace-brazed aluminum construction for exceptional durability and heat dissipation performance.

Key Features:

  • 17-row plate and fin design with 1-1/4 inch wide turbulator plates that maximize heat transfer while minimizing pressure drop
  • Sturdy furnace-brazed aluminum construction rated at 250 PSI working pressure and 300 PSI burst strength
  • 12 oz. fluid capacity with 23,500 BTU cooling rating
  • 1/2 inch NPT female cooler ports with included 1/2 inch NPT x 3/8 inch hose barb adapters
  • Complete hardware kit includes mounting brackets, OEM-spec hose with stainless steel clamps, and Insta-dapt radiator adapter for 5/16 inch transmission lines
  • Compact dimensions: 10.125 inches wide x 11.875 inches tall x 1.25 inches deep

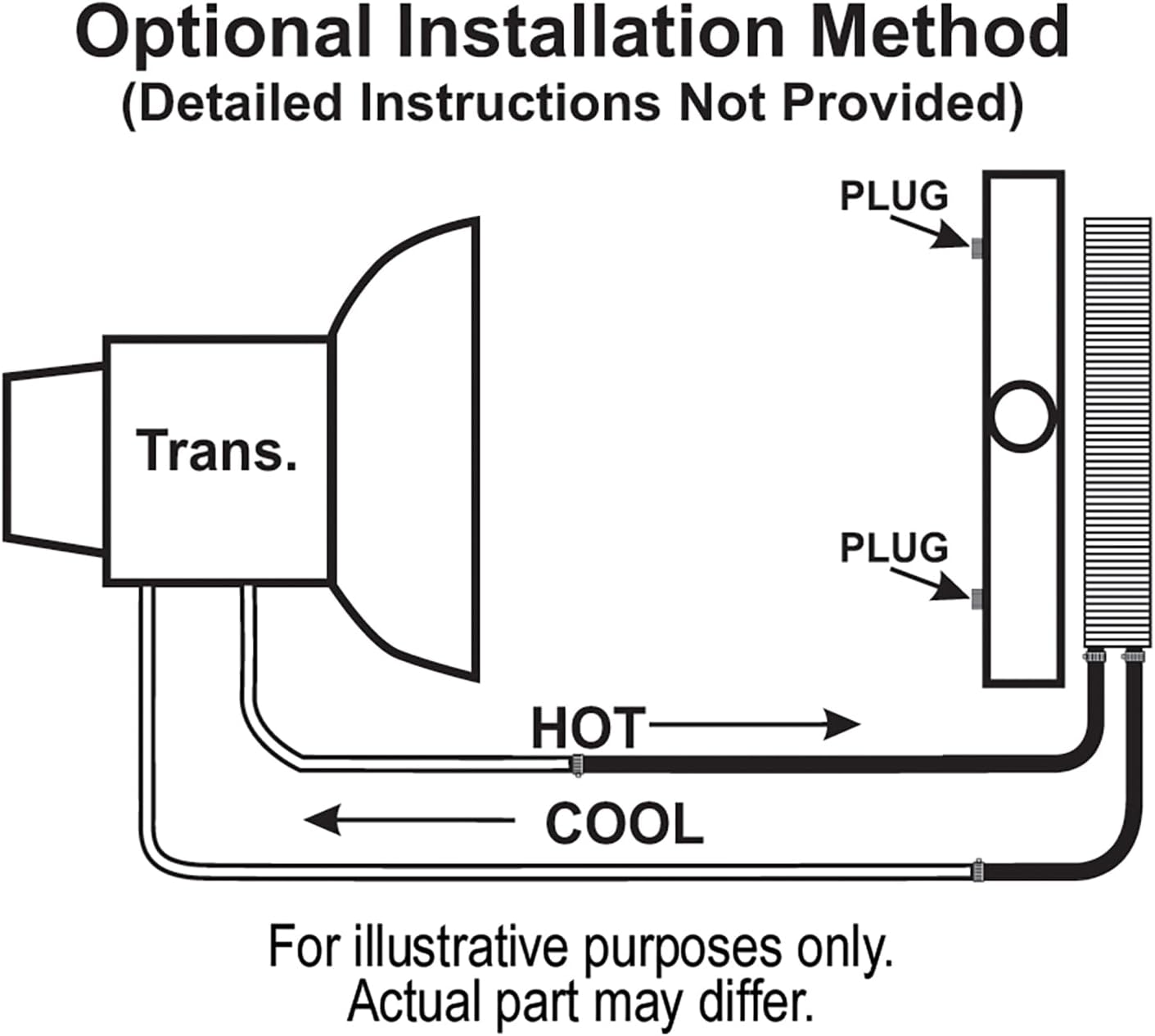

This cooler kit prevents heat-related transmission failures, extends transmission life, and improves shifting performance. Popular with OEM manufacturers for towing applications, the Series 9000 cooler can be installed as a standalone unit or in series with your factory cooler for enhanced cooling capacity.

Products specifications

Fits

Ford F-150 1975-77, F-250 1953-77, Bronco 1966-72, 1974-77, F-350 1953-77, F-100 1953-77, Ranchero 1957-71, 1975-77, E-350 Econoline 1975-77, E-150 Econoline 1975-77, E-250 Econoline 1975-77, E-350 Econoline Club Wagon 1977 + 70 more models

Cooler Construction

Tube and fin

Cooler Finish

Black painted

Cooler Material

Aluminum

Core Thickness (in)

1.250 in.

Core Width (in)

10.125 in.

Inlet Attachment

Female threads

Inlet Size

1/2 in. NPT

Notes

22500 GVW rated.

Number of Cooling Rows

17

Outlet Attachment

Female threads

Outlet Size

1/2 in. NPT

Overall Height (in)

11.875 in.

Overall Thickness (in)

1.250 in.

Overall Width (in)

10.125 in.

Quantity

Sold as a kit.

GVW

24000

Inlet Size

1/2 NPT female

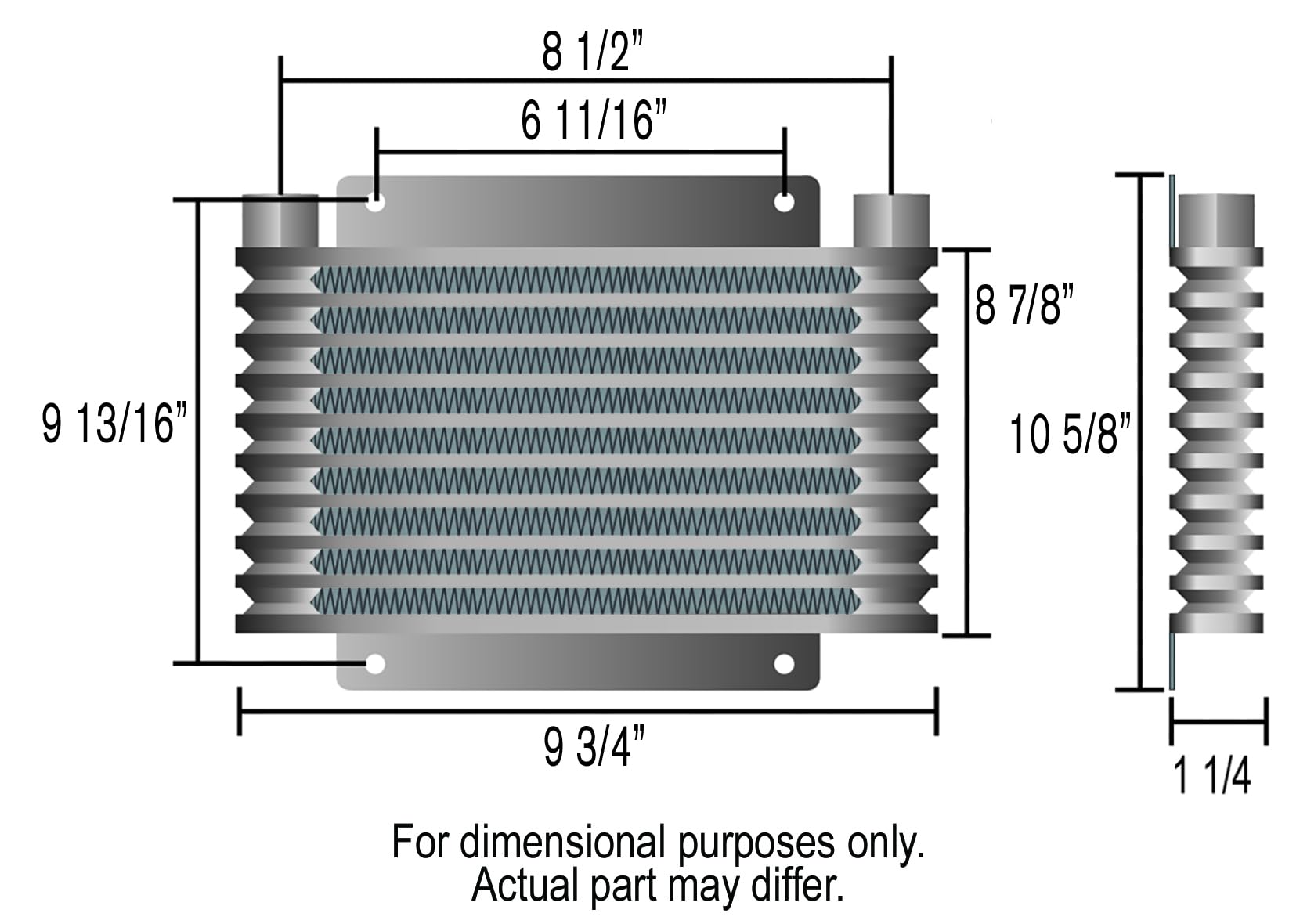

Mounting

6-11/16 x 9-13/16

Height

10-5/8

Material

Aluminum

Fitting Size

3/8 barb

Width

9-3/4

Color

Black

Depth

1-1/4

Inlet dim

8-1/2

Hose Size

3/8

Hose Length

4

Cooler style

Plate & Fin

BTU

23500

Prop 65

Yes
