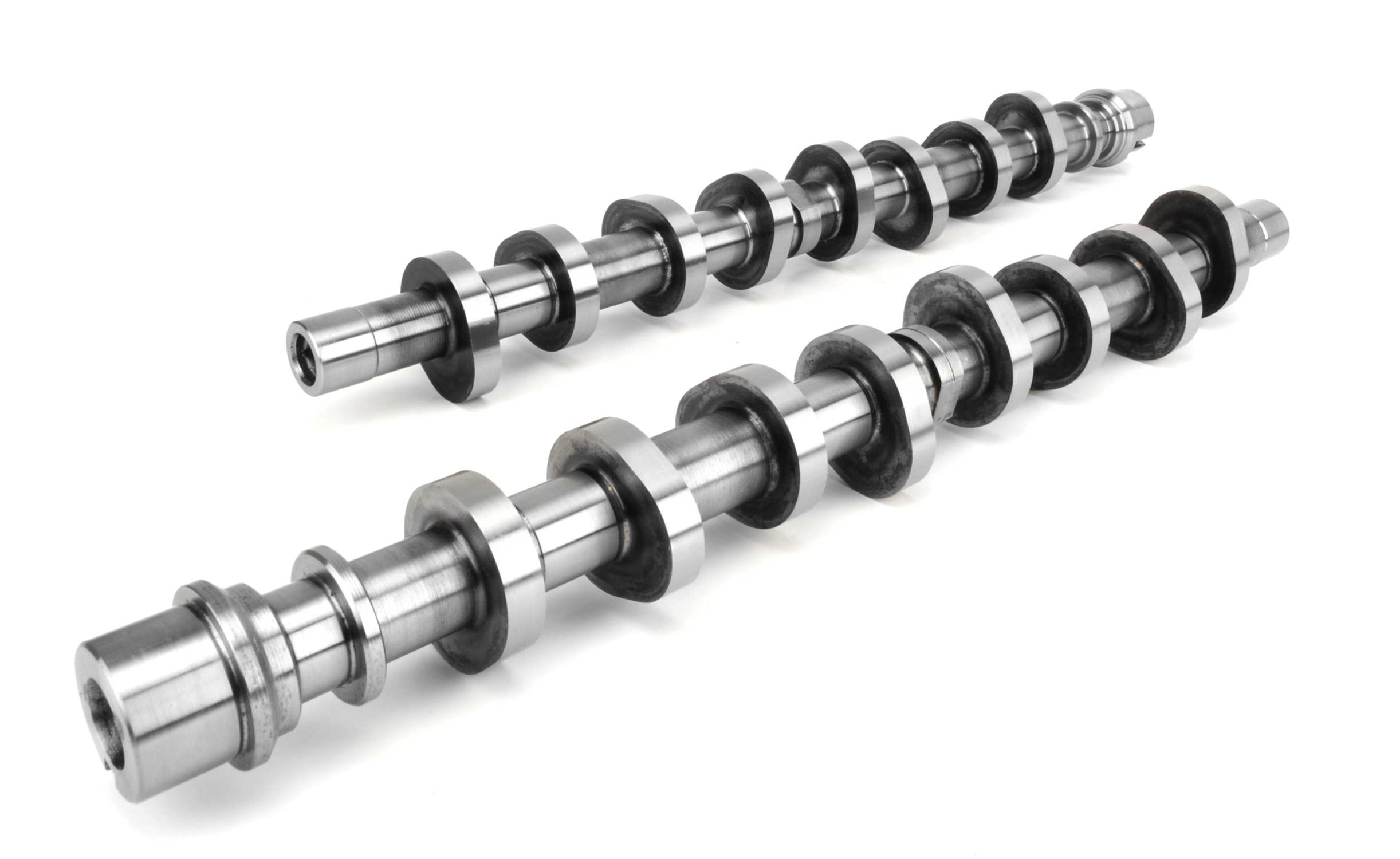

COMP Cams 102100 Xtreme Energy Hydraulic Roller Camshaft Ford - 224/232 4.6L 5.4L 2V

(Ford Grand Marquis 1991-94, F-150 1997-2010, Mustang 1996-2004, F-250 Super Duty 1999-2007, Explorer 2002-08, F-350 Super Duty 1999-2009 + 40 more models)

Part of: COMP Cams Xtreme Energy Hydraulic Roller Camshaft GM

Other options in this family: COMP Cams 08-500-8 COMP Cams 20-811-9 COMP Cams 20-810-9 COMP Cams 07-503-8 COMP Cams 12-408-8

Manufacturer

Picture for manufacturer COMP Cams

Part Number

102100
12 reviews
Sale Price

$880.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 102100 Xtreme Energy camshaft is engineered specifically for Ford 4.6L and 5.4L Modular 2-valve engines, delivering aggressive performance gains for street and street/strip applications. This hydraulic roller camshaft features a 224/232 duration split that provides excellent mid-range to top-end power while maintaining acceptable idle quality and drivability.

Key Specifications:

  • Advertised Duration: 270°/278° intake/exhaust
  • Duration at .050": 224°/232° intake/exhaust
  • Valve Lift (with factory 1.7 rockers): .525"/.540" intake/exhaust
  • Lobe Separation Angle: 112°
  • Idle Quality: Choppy, performance-oriented idle
  • RPM Range: 1,800-6,200 RPM

Performance Benefits:

  • Significant power gains in the 3,000-6,000 RPM range
  • Improved throttle response and acceleration
  • Enhanced top-end horsepower without sacrificing too much low-end torque
  • Compatible with stock valve springs and factory fuel injection

This camshaft is ideal for modified street vehicles, bracket racing applications, and enthusiasts seeking a noticeable performance upgrade. The Xtreme Energy series utilizes COMP Cams' proven hydraulic roller technology for reduced friction and improved durability. Professional installation recommended, along with proper tuning to maximize performance gains.

Products specifications

Fits

Ford Grand Marquis 1991-94, F-150 1997-2010, Mustang 1996-2004, F-250 Super Duty 1999-2007, Explorer 2002-08, F-350 Super Duty 1999-2009, Expedition 1997-2008, 2010, F-250 1997-2001, Crown Victoria 1992-2011, Excursion 2000-05 + 36 more models

Assembly Lubricant Included

No

Camshaft Gear Attachment

1-Bolt

Lifters Included

No

Valve Springs Required

Yes

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Advertised Intake Duration

262

Exhaust Valve Lift

0.5

LOBE SEPARATION

114

Exhaust Duration at .050 inch Lift

232

Advertised Exhaust Duration

270

Cam Type

Hydraulic Roller Finger Follower

Grind Number

XE262H

AMAZON ASIN

B000VU24EO

Camshaft Material

Billet Steel

Engine Family

Ford 4.6L and 5.4L SOHC Modular 2 Valve 8 Cylinder (1991+)

Basic Operating RPM Range

1,200-5,200

Intake Valve Lift

0.5

Intake Duration at .050 Inch Lift

224

Lifter Type

Hydraulic Roller Finger Follower

Camshaft Series

Xtreme Energy
