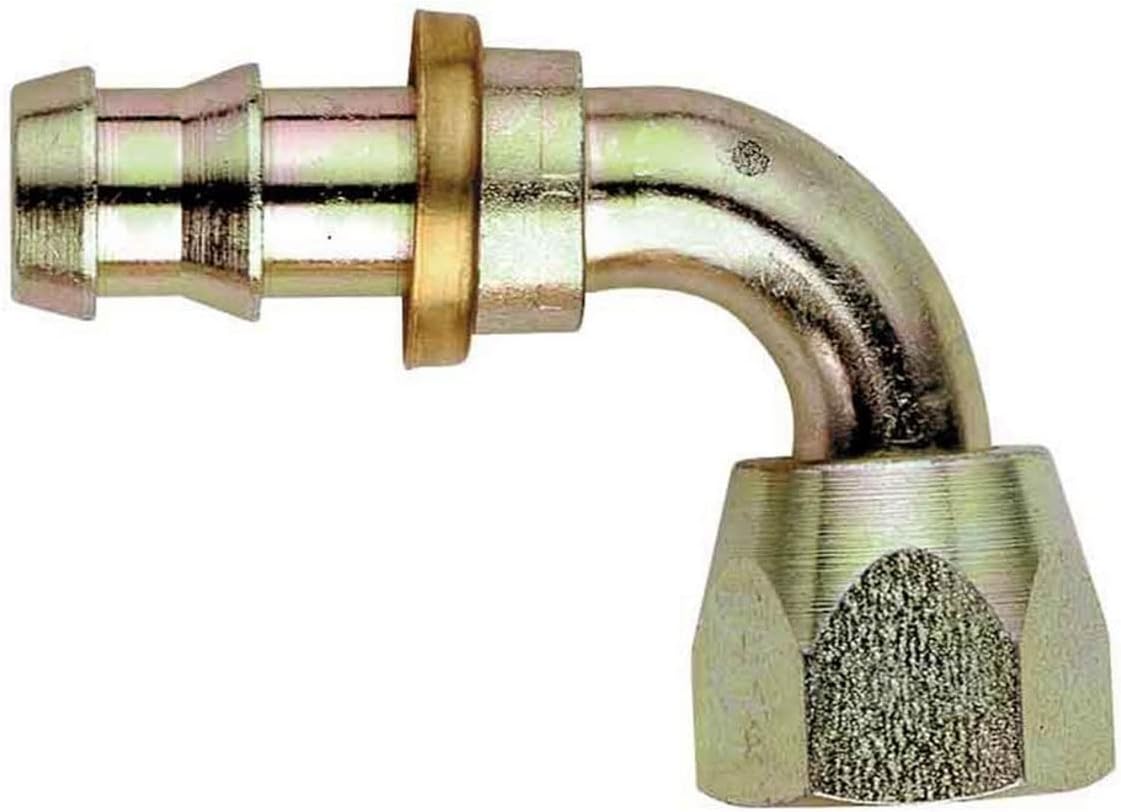

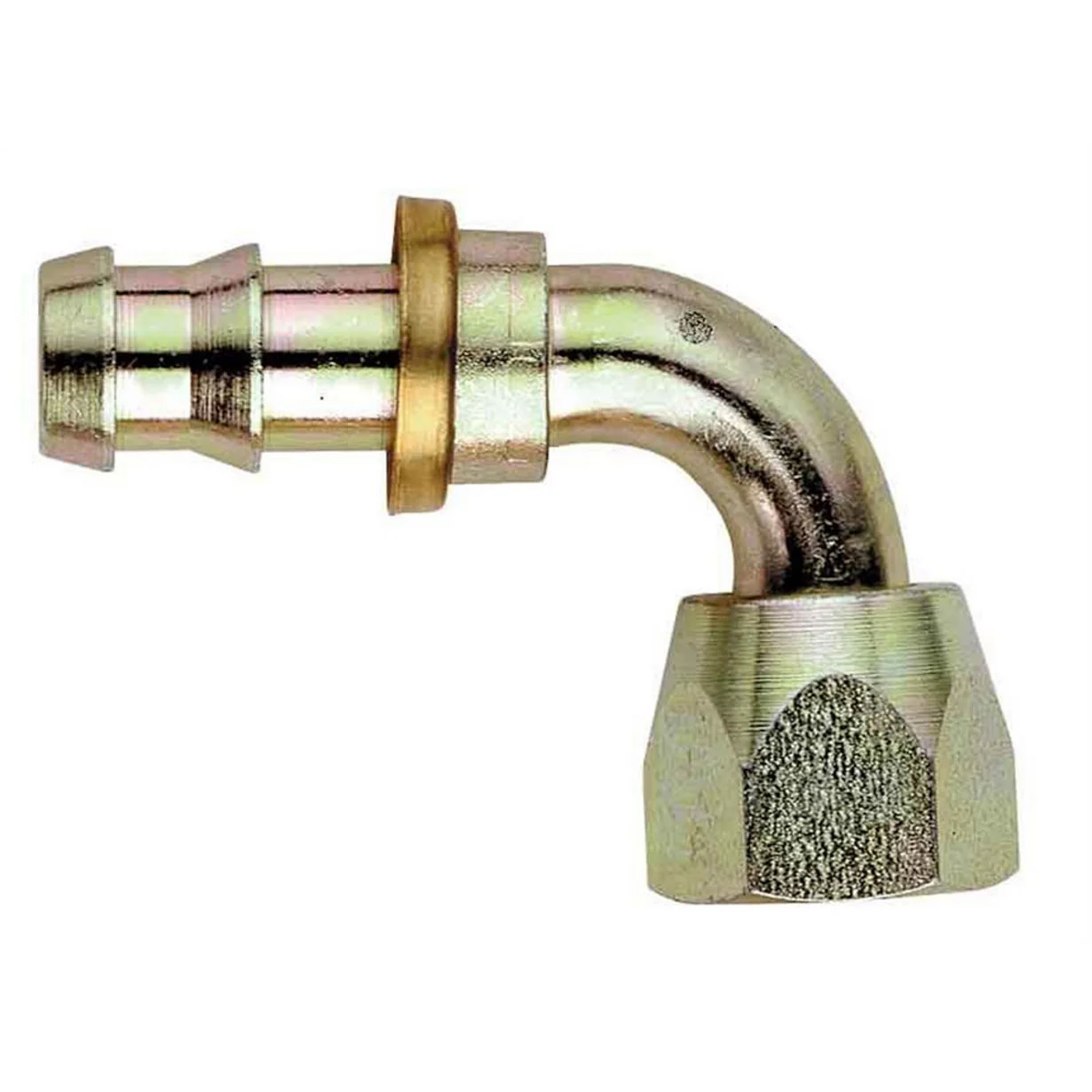

Aeroquip FBM1443 AQP Socketless 90 Degree Hose End Fitting -8 AN

The Aeroquip FBM1443 is a socketless hose end fitting designed for use with Aeroquip AQP socketless racing hose. This 90-degree elbow fitting features an 8 AN hose barb connection to an 8 AN female swivel, providing versatile routing options for tight installations.

Key Features:

• One-piece steel construction with natural zinc finish for corrosion resistance
• 90-degree angle design for flexible hose routing in confined spaces
• 8 AN hose barb to 8 AN female swivel connection
• Push-on installation requires no wrenches or special tools
• Maximum operating pressure up to 350 PSI
• Reusable design without damage to the fitting
• Eliminates potential leak points found in brazed joint designs

Installation is extremely simple—just slip the AQP socketless hose onto the barbed fitting. Under pressure, the hose contracts to create a tight, leak-proof seal. Suitable for a wide variety of automotive fluid conveying applications including air, water, gasoline, fuel, and lubricating oils. The socketless design eliminates the need for band clamps while maintaining excellent seal integrity.
