Part number: C5814-051
Product Details

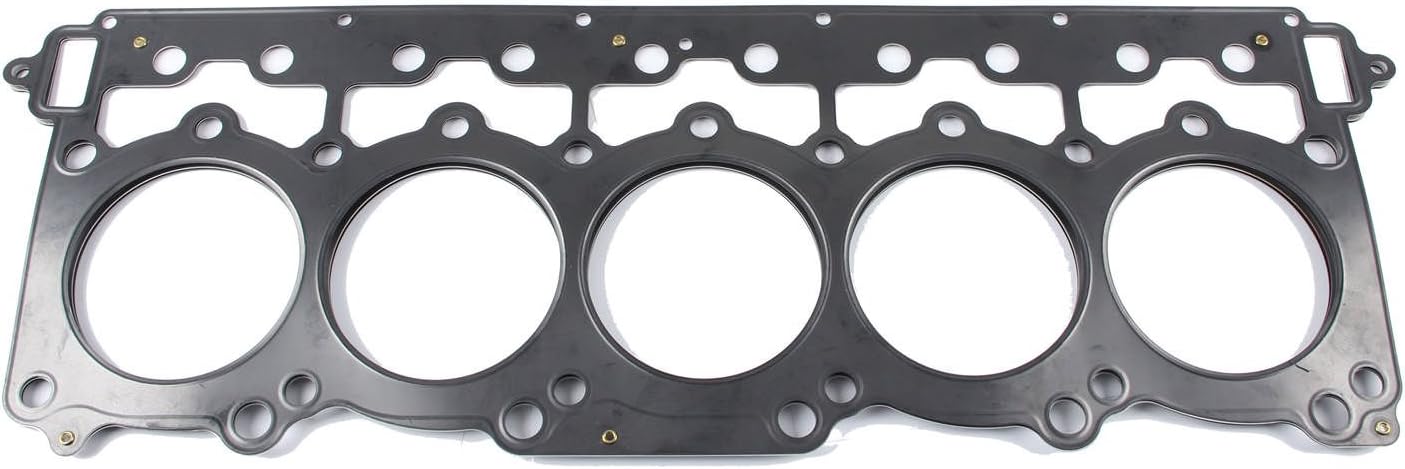

Cometic C5814-051 in our Head Gaskets Deptartment
Products specifications
Bore 4.060in
Bore (in) 4.060 in.
Bore (mm) 103.124mm
Calculator Compression Calculator
Compressed Thickness (in) 0.051 in.
Compressed Volume (cc) 10.820cc
Gasket Material Multi-layer steel
Lock Wire No
Material MLS
Quantity Sold individually.
Thickness .051in
Bore Diameter 4.060"
Engine Dodge 1996-2007 8.0L & 8.3L V10
Head Gasket

Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.

The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, its ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.

The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.

The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.

A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.


Add your review
Fast shipping and great prices will do business again (actually really soon)
good seller, fast delivery. They sent me a email telling me that they had sent the product and gave me the tracking number so i would know when it would arrive. The wheel lock product was listed accuately and fit nicely on my truck.
Quick and direct to my part
They had what I needed, No hassle ordering. and it shipped fast.
Show All Reviews
Dodge Ram 1500
2006 Dodge Ram 1500 SRT-10
2005 Dodge Ram 1500 SRT-10
2004 Dodge Ram 1500 SRT-10
Dodge Ram 2500
2003 Dodge Ram 2500 Base
2002 Dodge Ram 2500 Base
2001 Dodge Ram 2500 Base
2000 Dodge Ram 2500 Base
1999 Dodge Ram 2500 Base
1998 Dodge Ram 2500 Base
1997 Dodge Ram 2500 Base
1996 Dodge Ram 2500 Base
Dodge Ram 3500
2003 Dodge Ram 3500 Base
2002 Dodge Ram 3500 Base
2001 Dodge Ram 3500 Base
2000 Dodge Ram 3500 Base
1999 Dodge Ram 3500 Base
1998 Dodge Ram 3500 Base
1997 Dodge Ram 3500 Base
1996 Dodge Ram 3500 Base
Dodge Viper
2006 Dodge Viper SRT-10
2005 Dodge Viper SRT-10
2004 Dodge Viper SRT-10
2003 Dodge Viper SRT-10
2002 Dodge Viper ACR / GTS / R/T-10
2001 Dodge Viper ACR / GTS / R/T-10
2000 Dodge Viper ACR / GTS / R/T-10
1999 Dodge Viper ACR / GTS / R/T-10
1998 Dodge Viper GT2 / GTS / R/T-10
1997 Dodge Viper Base / GTS
1996 Dodge Viper Base / GTS
