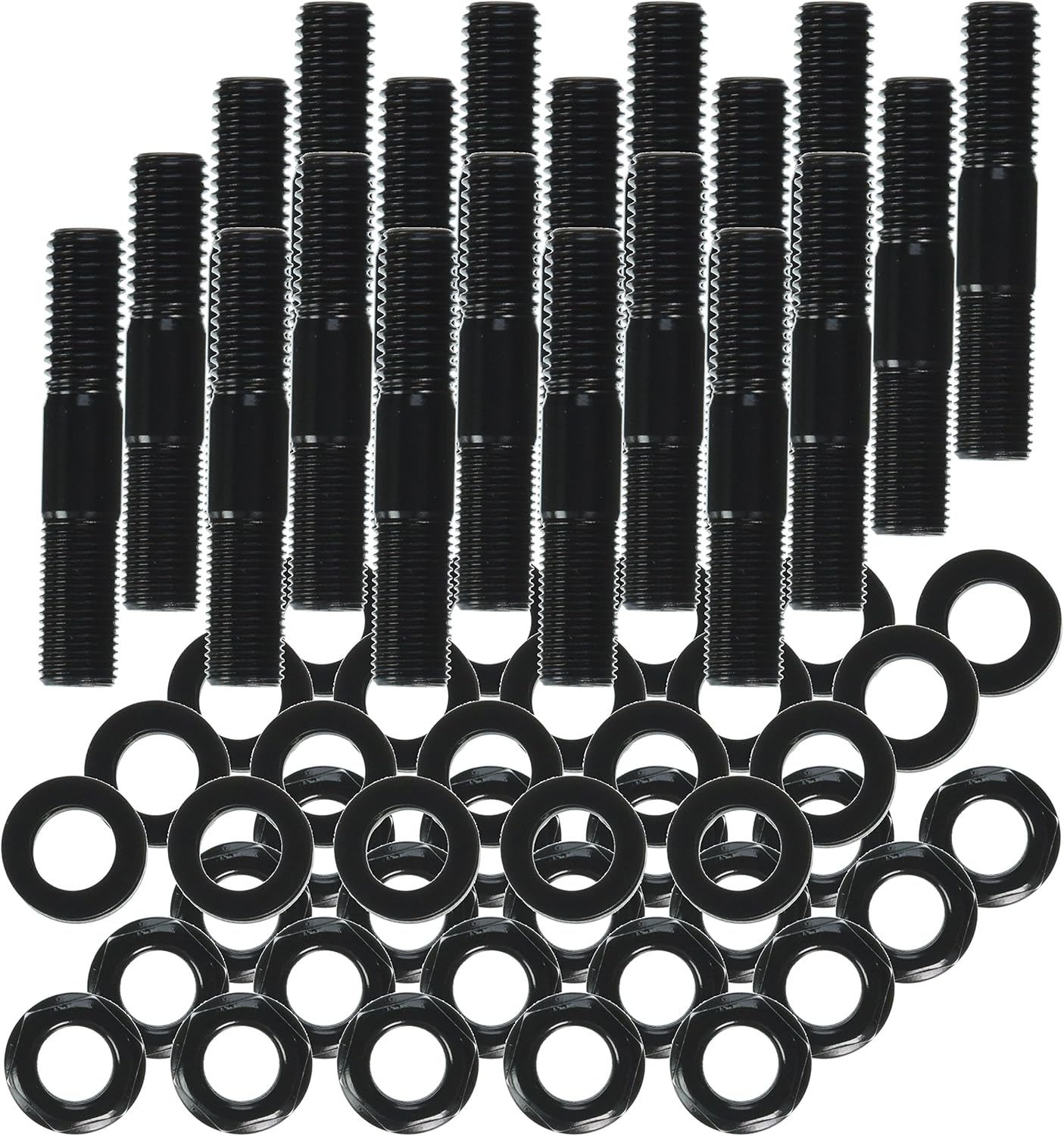

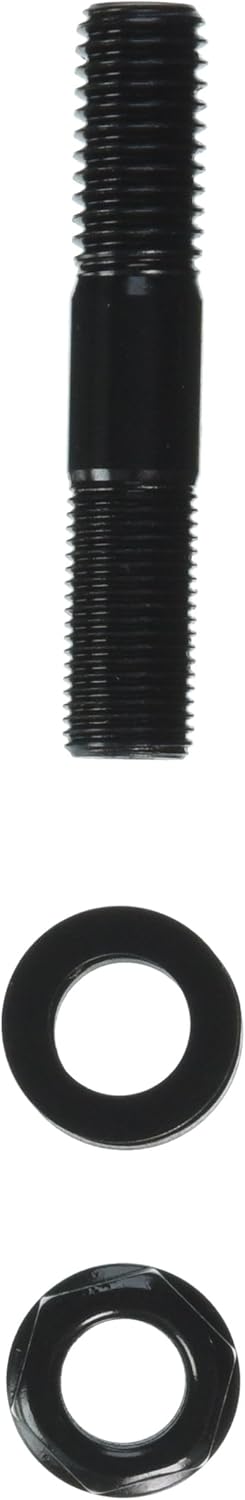

ARP 144-4001 Cylinder Head Stud Kit Chrome Moly Steel - 8740

The ARP 144-4001 is a premium cylinder head stud kit engineered for high-performance and competition applications. Manufactured from high-grade 8740 chrome moly steel, these studs are rated at 200,000 psi—far exceeding aircraft quality standards and providing exceptional strength and reliability under extreme cylinder pressures.

Superior Manufacturing Process:

• Precision heat-treated to 200,000 psi using vertical rack positioning for complete and consistent heat penetration
• Centerless ground after heat-treat for near-perfect concentricity and straightness
• Thread rolled after heat-treat for approximately 1000% better fatigue strength compared to pre-heat-treat threading
• Specially undercut shorter studs equalize stretch for more consistent clamping force

Key Features:

• 8740 chrome moly steel alloy construction for maximum durability
• Hex head design with reduced wrenching profile
• Wide area flanged head eliminates need for valve train removal during retorquing
• Includes hardened parallel-ground washers for even load distribution and accurate torque readings
• Precision manufacturing ensures cylinder heads and gaskets glide into perfect alignment

Advantages of Studs Over Bolts:

Head studs provide superior clamping accuracy compared to bolts because they stretch only on the vertical axis during torquing, rather than being subjected to both torsional and tensile forces simultaneously. This results in more consistent and accurate torque loading. Studs should be installed finger-tight in a relaxed mode, with torque applied only to the nut. The undercut design on shorter studs provides stretch rates similar to longer studs, creating more even clamping force across the cylinder head and helping prevent head gasket failure.

Professional Grade Quality:

ARP Pro Series head studs are the choice of professional engine builders across all forms of motorsports. Each stud is stamped with the ARP logo as assurance of quality and is manufactured to meet ARP's zero-defect, zero-failure quality standard. The exacting tolerances and superior materials make these studs ideal for competition engines that require frequent disassembly and reassembly.

Important Installation Note: Always re-torque studs after initial engine run, as head gaskets will compress during the break-in process.
