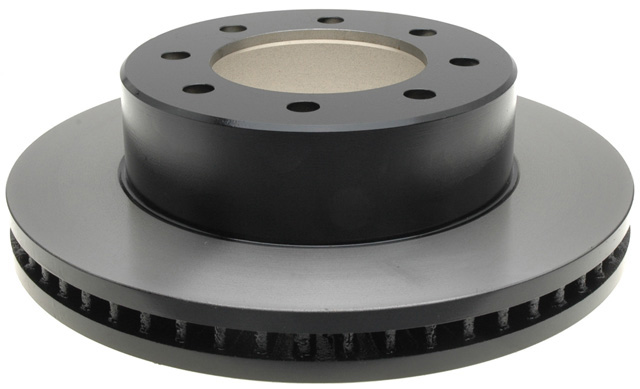

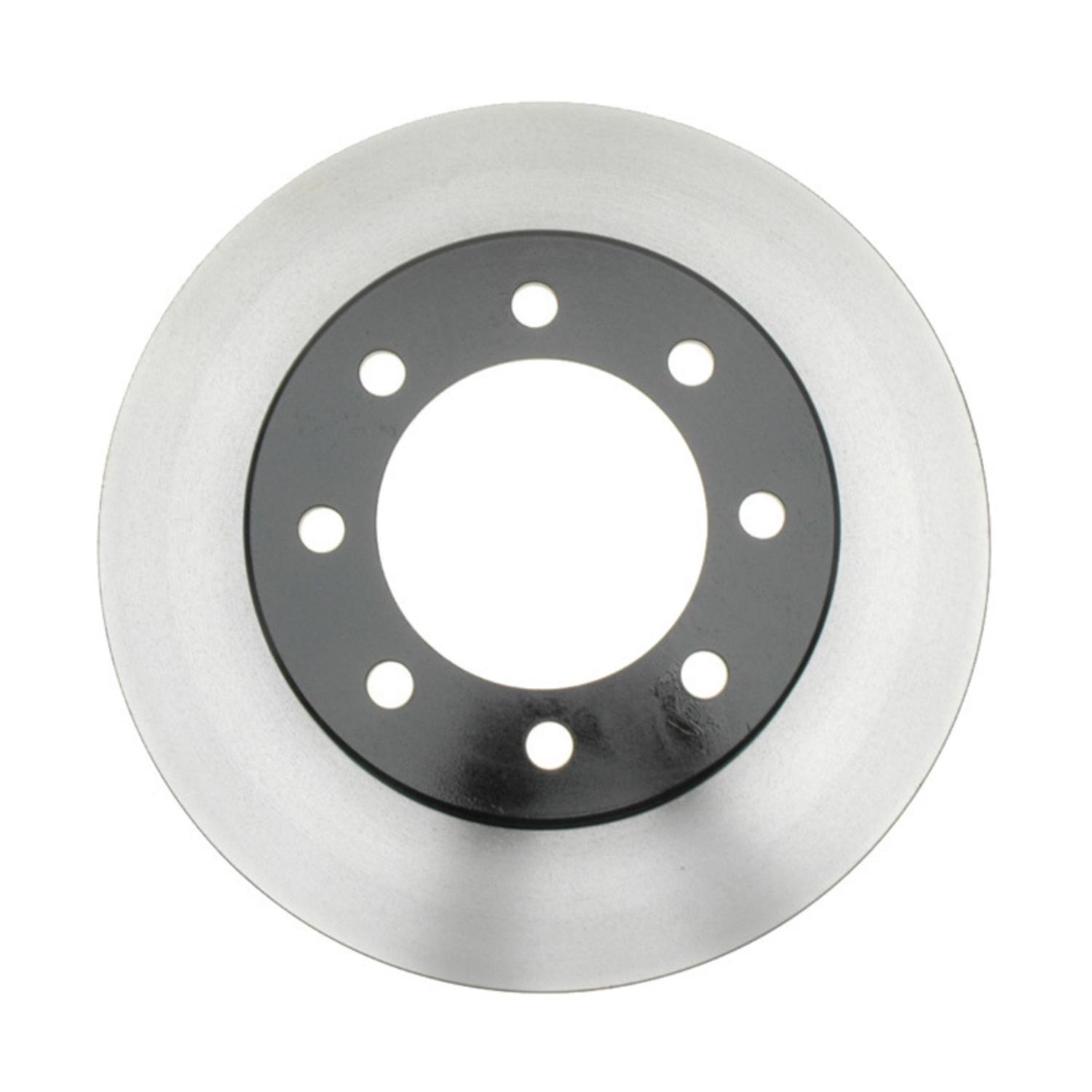

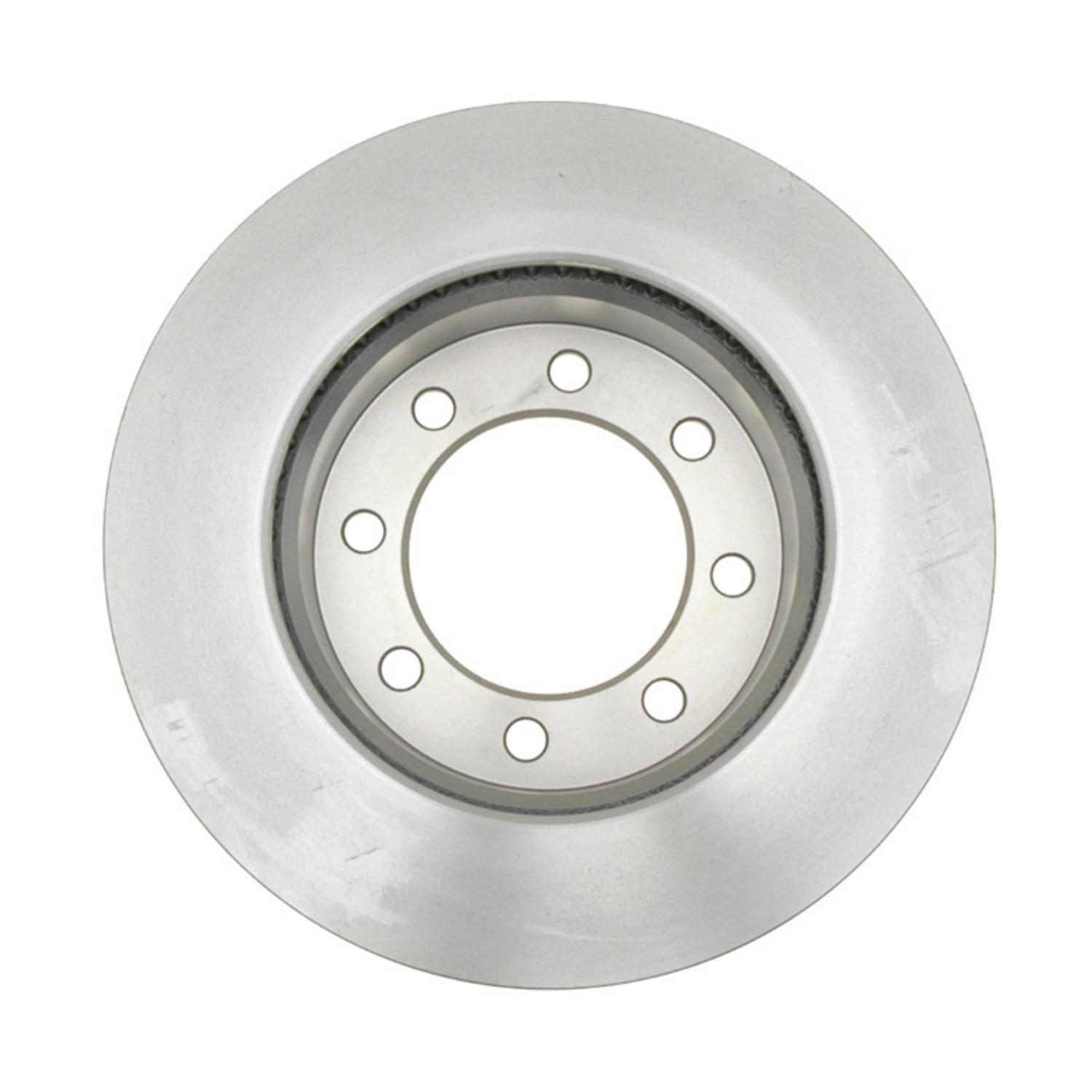

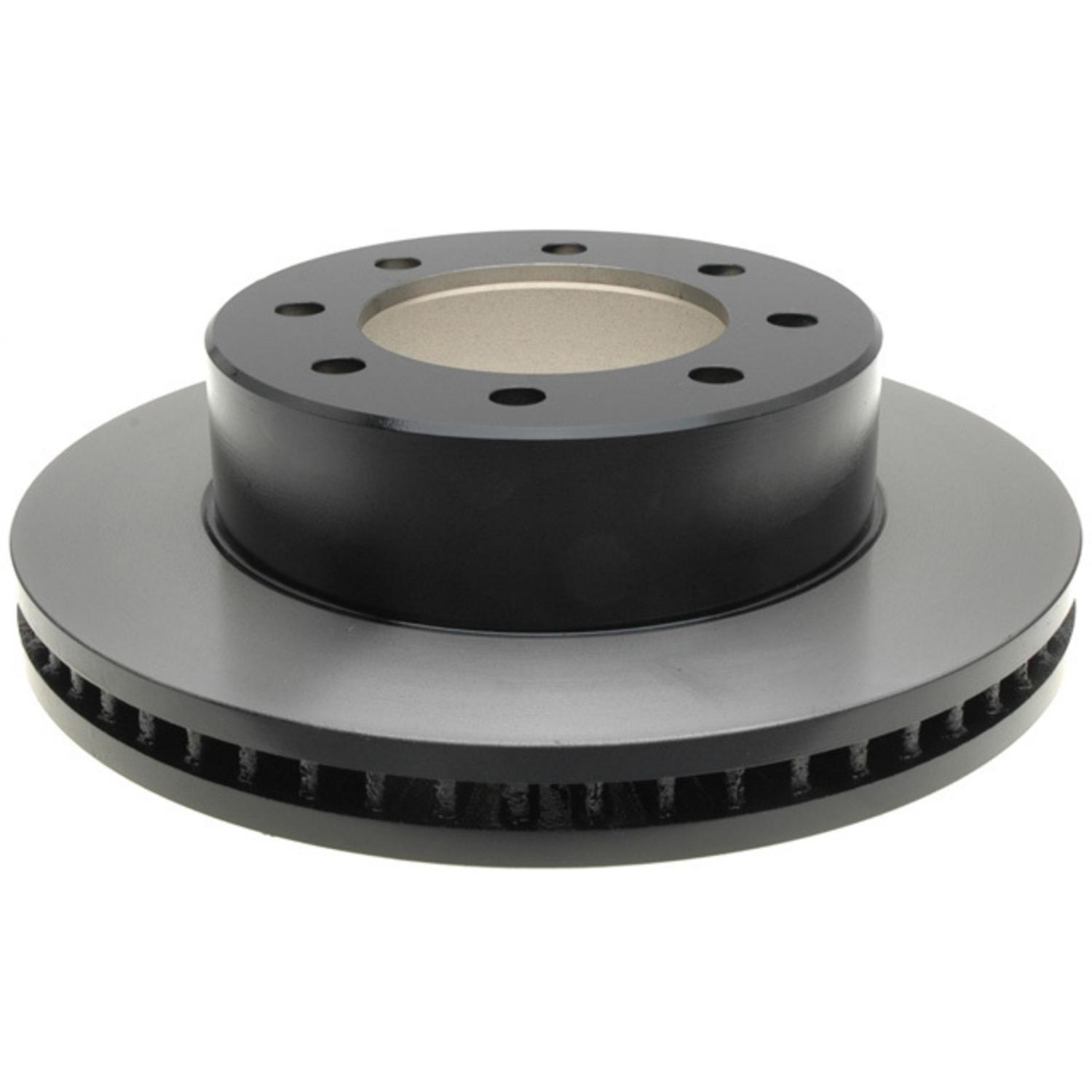

Raybestos 780736 Vented Disc Brake Rotor

The Raybestos 780736 is a heavy-duty vented disc brake rotor engineered specifically for truck applications. This rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade under heavy loads and demanding conditions.

Key Specifications:

• Overall diameter: 14.175 inches (360.05 mm)
• Nominal thickness: 1.541 inches (39.15 mm)
• Discard thickness: 1.472 inches (37.4 mm)
• 8-bolt mounting pattern with 6.496-inch bolt circle diameter
• Center hole diameter: 4.843 inches (123 mm)
• Overall height: 4.021 inches (102.15 mm)
• Smooth, non-directional surface finish

Quality Features:

• Cast from G3000-qualified material for structural integrity and maximum service life
• Meets SAE standards for tensile strength
• Tight lateral runout specifications (0.004 inch or less) for reduced pedal pulsation
• Minimal thickness variation (less than 0.0005 inch) ensures consistent braking
• Non-directional ground finish ready to install right out of the box
• Precision-machined to meet or exceed OE form, fit, and function

This Raybestos Specialty-Truck rotor is designed to provide reliable braking performance for heavy-duty truck applications, offering consistent braking characteristics and extended service life in both commercial and personal use scenarios. The smooth surface finish promotes even pad wear and delivers quiet, vibration-free stopping power.
