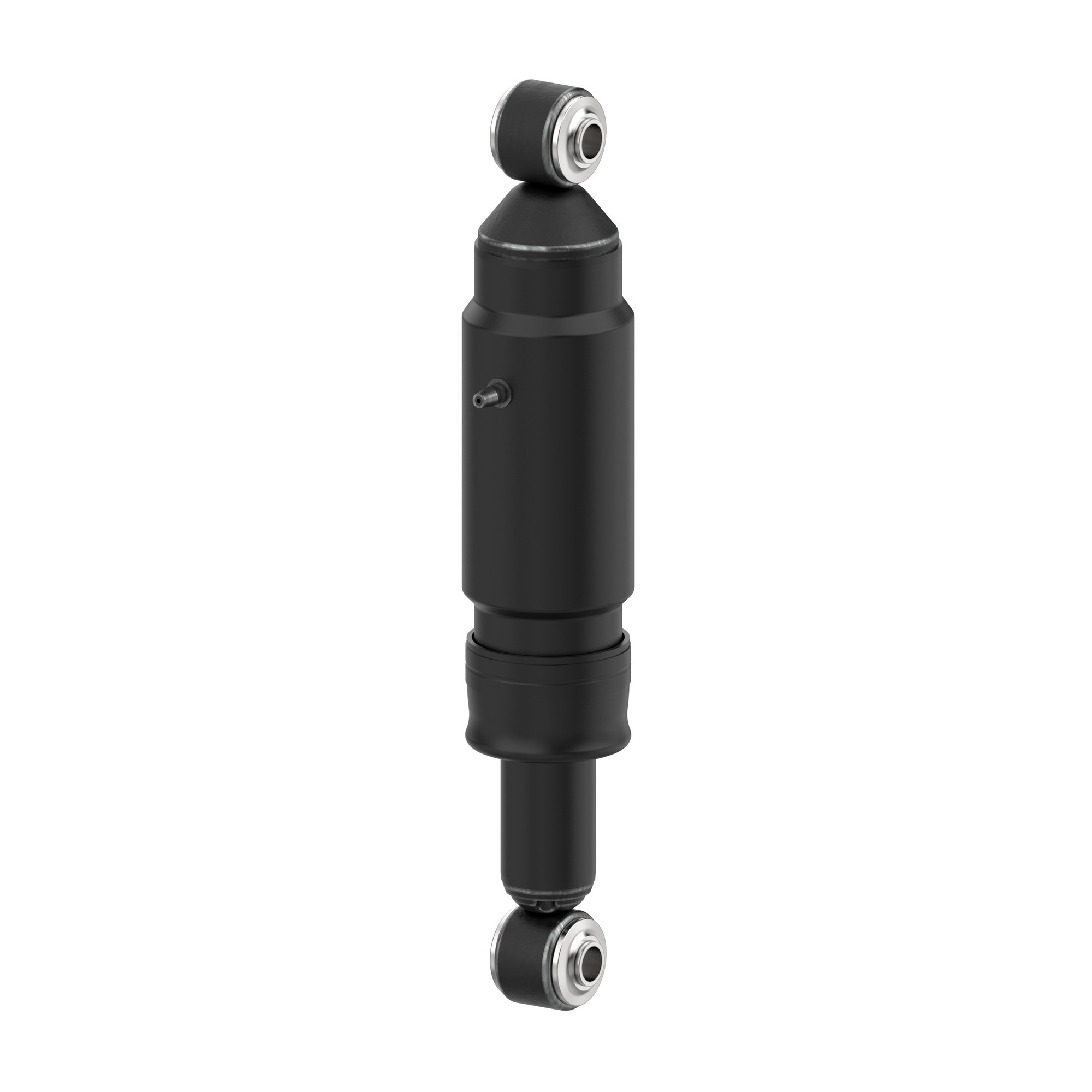

Monroe MA830 Max-Air Adjustable Air Shock Absorber Set of 2

The Monroe MA830 Max-Air shock absorbers are engineered specifically for vehicles that regularly haul heavy loads or tow trailers. These adjustable air shocks maintain level vehicle height even under demanding conditions, ensuring safe handling and ride comfort when you need it most.

Adjustable Air Pressure System:

The MA830 features a large-volume air chamber that can be inflated or deflated from 20 PSI to 150 PSI to accommodate changing load requirements. This adjustability allows the shocks to support up to 1,200 lbs of additional weight while maintaining proper ride height. The special air fitting resists leakage and can tie into factory air leveling systems where applicable, or be manually inflated with a standard air compressor.

Key Features:

• Twin-tube design with full-displaced valving on compression and extension cycles for smooth ride quality
• Hardened and precision-ground 1/2-inch piston rod for consistent performance
• Sintered iron piston enhances durability for extended service life
• Lubricated air sleeve reduces friction during suspension movement
• OE all-weather fluid with special modifiers handles extreme temperatures
• Loop bushing and sleeve mount design (14mm sleeve ID)
• Compressed length: 14.625 inches; Extended length: 23.938 inches

What's Included:

Sold as a pair (set of 2) with necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused during installation. Vehicles without factory air leveling systems may require adapter kit AK29 (sold separately).

Important Note:

Load capacity is limited by vehicle suspension, tires, and transmission specifications. Always consult your vehicle owner's manual for specific weight limits and installation requirements.

OEM Cross-References: 22811847, 25979396, 19300074, 25979393, 5801091
