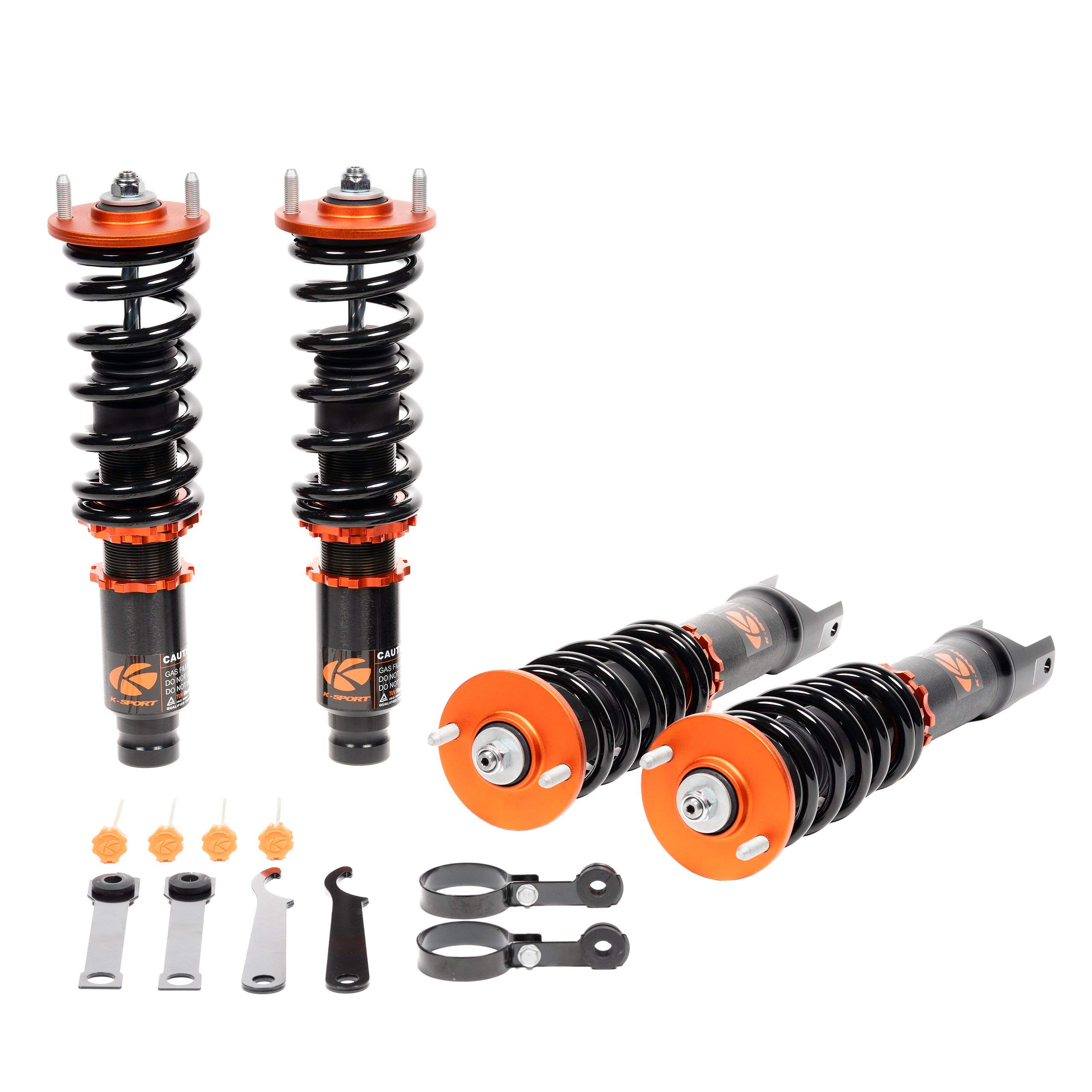

Ksport CHD100-KP Kontrol Pro Fully Adjustable Coilover Kit with Damping Top Mounts - 36-Way

The Ksport Kontrol Pro CHD100-KP is a fully adjustable coilover kit engineered to deliver professional-grade suspension performance on the street or at the track. Built around a high-pressure monotube design and packed with adjustability features, the Kontrol Pro is an ideal upgrade for enthusiasts who demand precision handling without sacrificing daily drivability.

36-Way Adjustable Damping

At the core of this system is a 36-level damping adjustment that lets you fine-tune the damper to perfectly balance handling response and ride comfort. The damping adjustment alters compression and rebound simultaneously, making setup changes fast, intuitive, and effective — no separate compression and rebound knobs to manage.

Adjustable Lower Mounts for True Ride Height Adjustment

This kit uses adjustable lower mounts for ride height adjustment, meaning you can achieve your desired stance without sacrificing suspension travel — a common drawback found in many competing coilover designs. This preserves proper shock stroke throughout the full range of height adjustment.

Pillowball Top Mounts Included

Pillowball upper mounts are included with this kit. Ksport's patented pillowball design maintains the required compliance for demanding strut applications while delivering a more direct, responsive feel. On applicable configurations, the pillowball upper mounts also provide camber adjustment, eliminating the need for a separate camber kit. Select applications support advanced mounts with independent camber and caster adjustment capability.

Key Features:

• 36-way adjustable damping — simultaneous compression and rebound adjustment
• Monotube high-pressure design — oil and gas separated within the cylinder for consistent performance
• Faster, more even heat dissipation compared to twin-tube designs, reducing aeration and cavitation
• Adjustable lower mounts — height adjustment without loss of suspension travel
• Pillowball top mounts included — camber adjustable on applicable configurations
• 6061 billet aluminum construction for spring perches, locking collars, and top mounts — lightweight, strong, and corrosion resistant
• Zinc electroplated steel shock bodies for rust and corrosion protection
• Valving matched to spring rate for optimized ride quality and long-term reliability
• Spring rates: Front 14 kg/mm | Rear 7.2 kg/mm

The Ksport Kontrol Pro coilover system was developed with professional road racing as its benchmark, resulting in a kit that provides exceptional value and performance across a wide range of driving demands.
