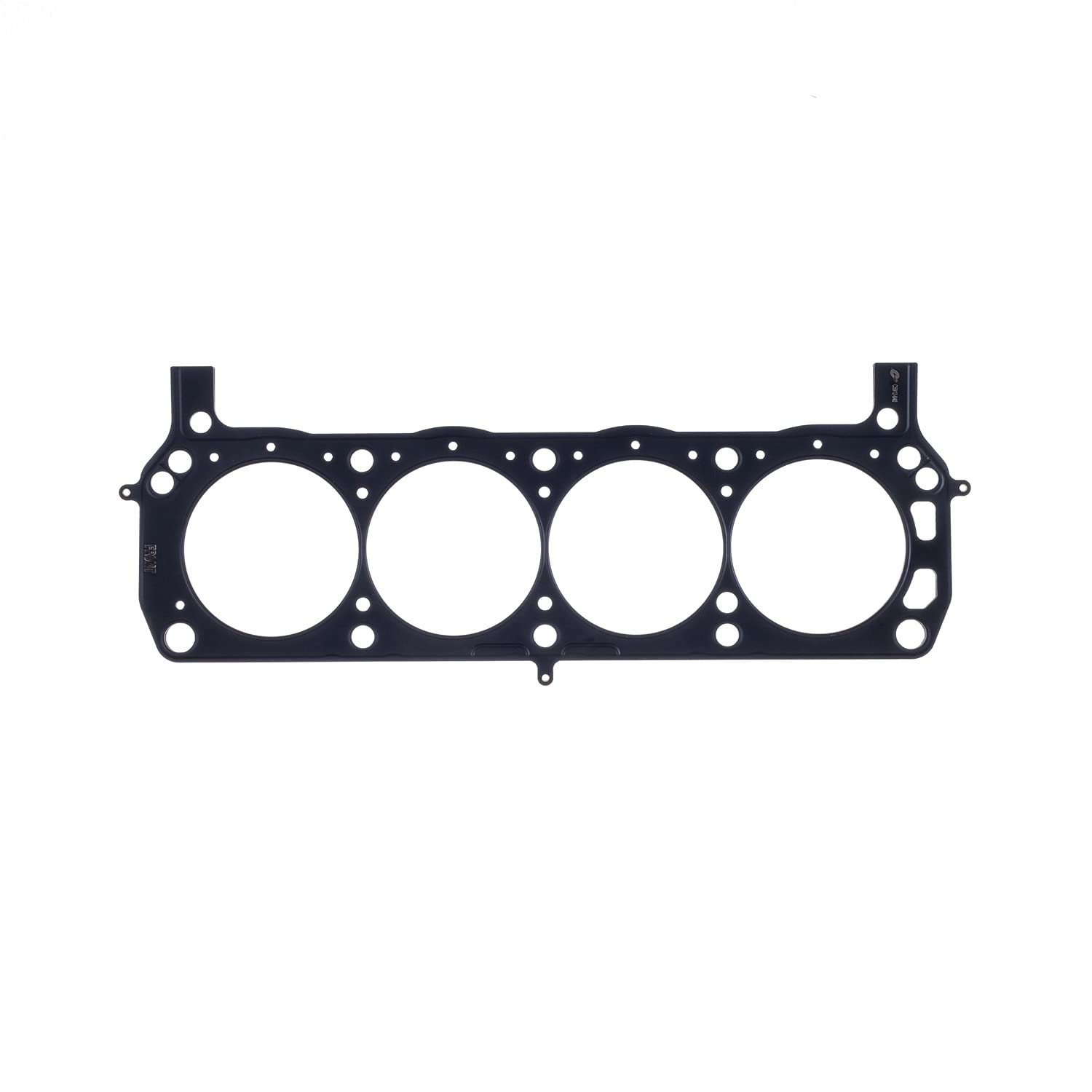

Cometic C5912-080 MLS Cylinder Head Gasket Ford Windsor Bore Thick - V8 4.155 080

The Cometic C5912-080 is a premium Multi-Layer Steel (MLS) cylinder head gasket engineered specifically for Ford Windsor V8 engines equipped with AFR cylinder heads. This high-performance gasket features a 4.155-inch bore diameter and a compressed thickness of .080 inches, making it ideal for street performance and racing applications.

Key Features:

• Multi-Layer Steel (MLS) construction provides superior sealing and durability under extreme cylinder pressures
• 4.155-inch bore diameter accommodates stroker and overbored engine builds
• .080-inch compressed thickness allows for precise compression ratio tuning
• Specifically designed to work with AFR (Air Flow Research) aftermarket cylinder heads
• Embossed stainless steel layers with Viton rubber coating ensure maximum combustion sealing
• Eliminates the need for re-torquing, providing consistent clamping force
• Accommodates slight deck surface imperfections while maintaining excellent sealing properties

Cometic MLS gaskets are the preferred choice for high-performance engine builders due to their ability to withstand extreme temperatures and pressures while maintaining a reliable seal. The gasket's layered construction allows it to conform to minor surface irregularities while the embossed beads focus pressure around critical sealing areas including combustion chambers, coolant passages, and oil return holes.

This gasket is sold individually and is designed for use with Ford Windsor small block V8 engines including 289, 302, and 347 stroker variants running AFR cylinder heads. Proper surface preparation and torque specifications are essential for optimal performance.
