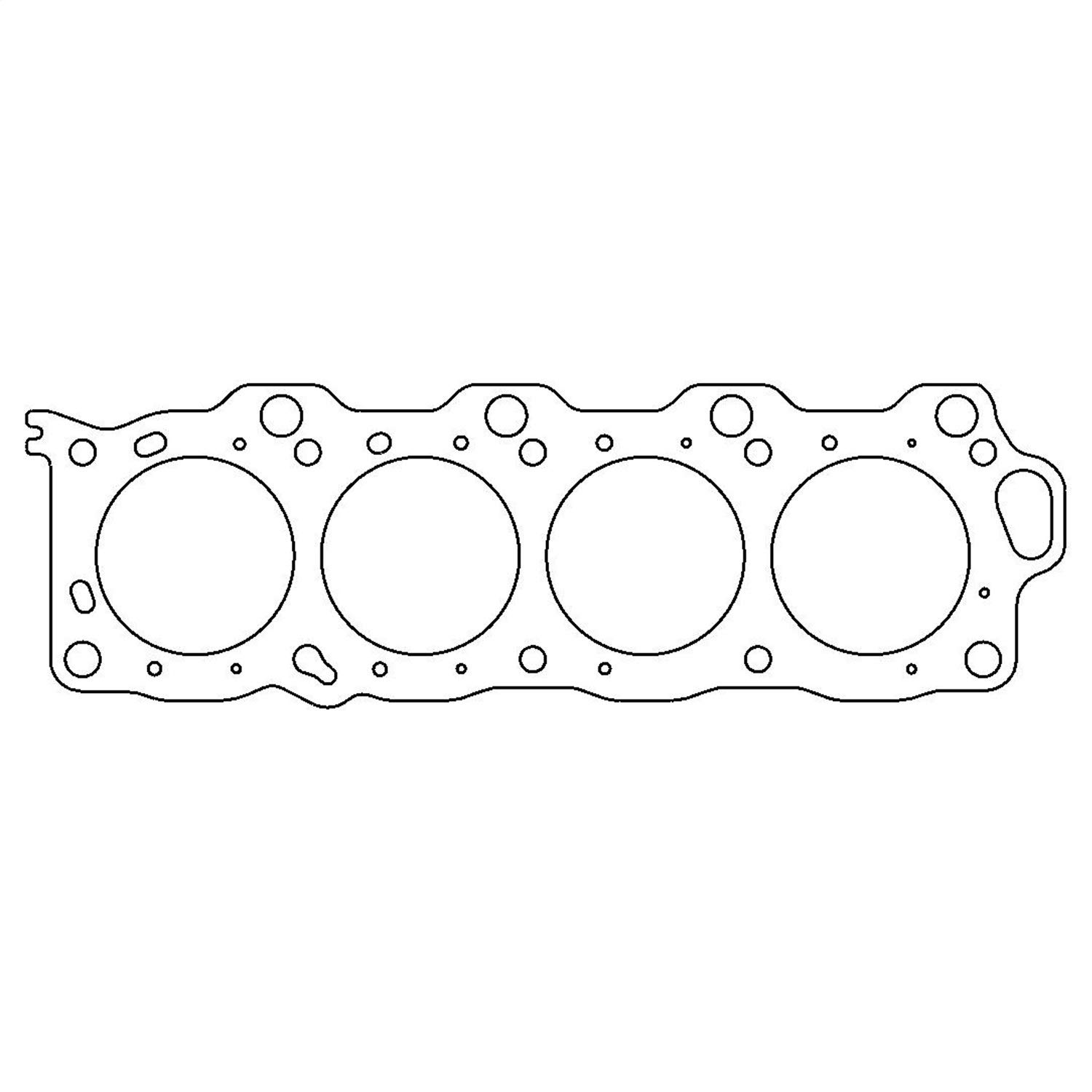

Cometic C4136-040 Toyota MLS Cylinder Head Gasket Bore - 1UZ-FE 92.5mm

The Cometic C4136-040 is a precision-engineered Multi-Layer Steel (MLS) cylinder head gasket designed specifically for Toyota 1UZ-FE engines without VVT-i. This high-performance gasket features a .040" compressed thickness and a 92.5mm bore diameter, making it ideal for both stock rebuilds and performance applications.

Key Features:

• Multi-Layer Steel (MLS) construction for superior sealing and durability
• .040" (1.02mm) compressed thickness for precise combustion chamber volume control
• 92.5mm bore diameter engineered for Toyota 1UZ-FE specifications
• Designed for non-VVT-i 1UZ-FE engines (1990-1997)
• Right-hand side (RHS) configuration
• Embossed stainless steel layers with viton rubber coating resist corrosion and extreme temperatures
• Increased clamping force tolerance compared to composite gaskets

Cometic MLS gaskets feature multiple layers of stainless steel with specialized coatings that provide exceptional resistance to combustion pressures, coolant, and oil. The material conforms to surface imperfections while maintaining consistent clamping loads across the entire sealing surface. This gasket is compatible with stock and mildly modified 1UZ-FE engines found in Lexus LS400, SC400, and Toyota applications. Note: Two gaskets required per engine.
