Part number: 204-4702
Product Details

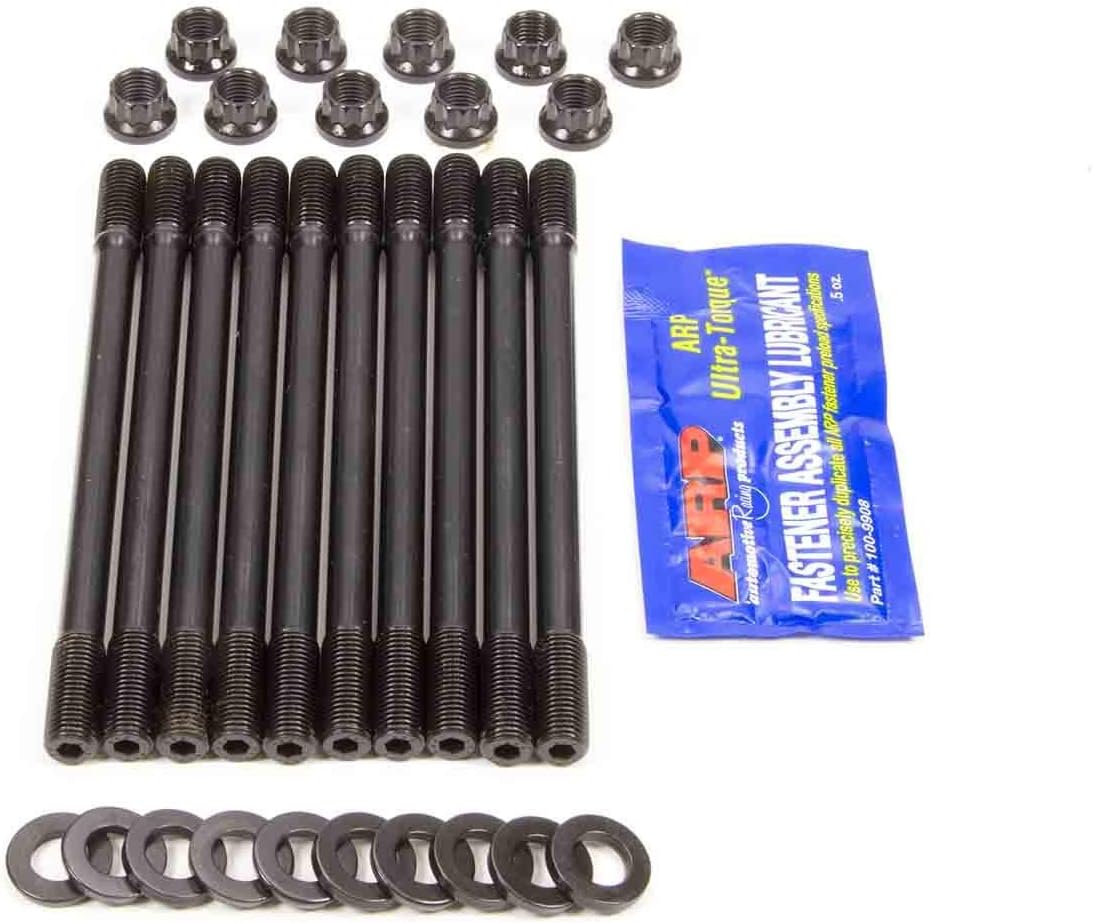

ARP 204-4702 Cylinder Head Fasteners
Products specifications
Cut to Fit No
Fastener Finish Black oxide
Fastener Material 8740 chromemoly
Fastener Style Stud
Head Style 12-point
Notes Fits 16-valve engines only.
Quantity Sold as a kit.
Washers Included Yes
Head Stud Kit
High Performance 8740 Series
Undercut Studs
12Point Head

It is for good reason that virtually every top professional engine builder relies on ARP Pro Series head studs for their all-out competition powerplants. Simply stated, theres not a better stud setup on the market today.

For openers, ARP uses a premium grade 8740 alloy that is rated far superior to aircraft quality. Each stud is placed vertically in special racks and precisely heat-treated to 200,000 psi. This procedure ensures complete heat penetration and the results are far superior to those lesser quality studs from other manufacturers who just dump pieces in a basket and hope for the best.

Following heat-treat, each stud is centerless ground to make it as close to perfectly concentric as possible. This procedure involves about ten very slight cuts and results in an exceptionally straight part. Its important to note that lesser quality studs are not even centerless ground the material is thread rolled in bar stock form (mostly before heat-treat, when the material is easier to machine). Because ARP studs are manufactured to such exacting tolerances, you will note that gaskets and cylinder heads literally glide into position and are perfectly aligned something that wont happen with inferior quality head studs.

ARP studs are thread rolled after heat-treat, which gives them about 1000% (thats ten times) better fatigue strength than those studs that are threaded prior to heat-treat (a very common industry practice). It costs a lot more to do it this way, because its tough on tooling, but the results are well worth the extra effort.

You will also note that ARP offers specially undercut studs for several engines. This procedure (done only to the shorter studs) more equalizes the stretch of both studs, which makes for a more consistent clamping force and one that compensates for head gasket compression when the cylinder heads are installed. This helps prevent blown head gaskets, and assures optimum engine sealing!

Premium quality heat-treated 8740 chrome moly steel head stud kits are available for most every domestic and import applications.

You wont find a better quality stud on the market from any other source. Look for ARP stamped on each stud as your assurance of quality.

Clearly, ARP Head Stud/Bolt Kits are the best on the market today, and the favorite of leading professional engine builders in all forms of racing.

HIGH PERFORMANCE SERIES
High Performance head bolts are available with a reduced wrenching hex or 12-point and wide area flanged head that eliminates the need for valve train removal to facilitate cylinder head retorquing. All High Performance Series bolts are 180,000 psi (which is 15% stronger than Grade 8) and kits come complete with hardened parallel-ground washers.

PRO SERIES
All Pro Series bolts are cold-forged to ensure molecular integrity, heat-treated prior to thread rolling and machining, and are rated nominally at 200,000 psi. ARP Pro Series head bolt kits are application specific designed for use with typically competition only components. These fasteners deliver superior strength and meet the ARP ZERO defect ZERO failure quality standard. Hardened and parallel-ground washers are included with each kit to ensure even load distribution and accurate torque readings. All Pro Series head bolts have a reduced wrenching hex or 12-point head and wide area flange to eliminate the need for valve train removal for cylinder head retorquing and permits the use of larger diameter valve springs. Most applications have undercut short bolts that can help eliminate head gasket failures through providing more stretch to compensate for the additional compression of gaskets.

Head Studs vs Bolts
On many street-driven vehicles, where master cylinders and other items protrude into the engine compartment, its probably necessary to use head bolts so that the cylinder heads can be removed with the engine in the car.

For most applications, however, studs are recommended. And for good reason. Using studs will make it much easier to assemble an engine (especially a racing powerplant which must be serviced frequently and quickly!) with the cylinder head and gasket assured of proper alignment.

Studs also provide more accurate and consistent torque loading. Heres why. When you use bolts to secure the head, the fastener is actually being twisted while its being torqued to the proper reading. Accordingly, the bolt is reacting to two different forces simultaneously. A stud should be installed in a relaxed mode never crank it in tightly using a jammed nut.

If everything is right, the stud should be installed finger tight. Then, when applying torque to the nut, the stud will stretch only on the vertical axis. Remember, an undercut shorter stud will have a rate similar to a longer, standard shank stud. This provides a more even clamping force on the head. Because the head gasket will compress upon initial torquing, make sure studs and bolts are re-torqued after the engine has been run.

Reviews
Add your review
S
Good
B
Great Job Guys! The customer service was very professional and I loved that they took paypal!

Thank you would recommend to a friend!
P
The price was best on internet shipping was resonable, follow up emails were helpful.
N
fast shipping. shipped the correct item. thanks autoplicity. hope to be buying again soon
Show All Reviews
Fitment
Volkswagen Golf
2007 Volkswagen Golf ALL
2006 Volkswagen Golf ALL
2005 Volkswagen Golf ALL
2004 Volkswagen Golf ALL
2003 Volkswagen Golf ALL
2002 Volkswagen Golf ALL
2001 Volkswagen Golf ALL
2000 Volkswagen Golf ALL
1999 Volkswagen Golf ALL
1998 Volkswagen Golf ALL
1997 Volkswagen Golf ALL
1996 Volkswagen Golf ALL
1995 Volkswagen Golf ALL
1994 Volkswagen Golf ALL
1993 Volkswagen Golf ALL
1992 Volkswagen Golf ALL
1991 Volkswagen Golf ALL
1990 Volkswagen Golf ALL
1989 Volkswagen Golf ALL
1988 Volkswagen Golf ALL
1987 Volkswagen Golf ALL
1986 Volkswagen Golf ALL
1985 Volkswagen Golf ALL
1984 Volkswagen Golf ALL
1983 Volkswagen Golf ALL
Volkswagen Jetta
2007 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
2006 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
2005 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
2004 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
2003 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
2002 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
2001 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
2000 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1999 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1998 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1997 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1996 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1995 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1994 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1993 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1992 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1991 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1990 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1989 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1988 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1987 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1986 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1985 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1984 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
1983 Volkswagen Jetta 2.0T / Base / Carat / Celebration Edition / City / CL / Deluxe / GL / GLI / GLI 16-Valve / GLS / GT / GTX 16-V / Jazz / K2 / Trek / Wolfsburg Edition
