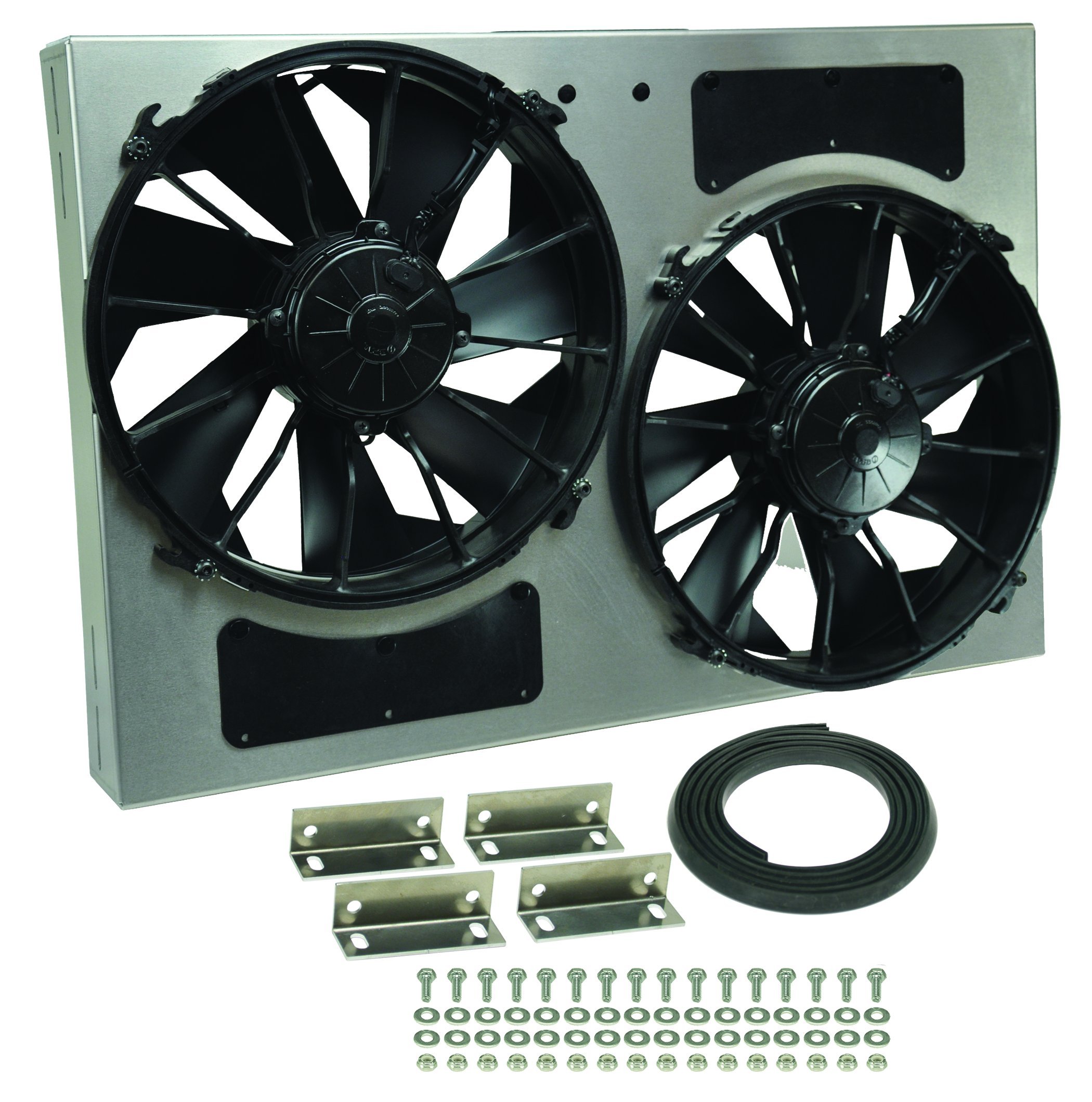

Derale Performance 16826 High Output Dual 12" Electric RAD Fan and Aluminum Shroud Kit 4000 CFM

Manufacturer

Part Number

16826
Black Friday Price

$615.60

In Stock (9)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Derale Performance 16826 High Output Dual RAD Fan and Shroud Kit delivers powerful primary cooling performance designed to eliminate the need for power-robbing belt-driven fans. This complete assembly combines dual 12-inch high output electric fans with a raw aluminum shroud, generating an impressive 4000 CFM of real-world airflow in a compact, efficient package.

Key Features:

  • Dual 12-inch high output electric fans with 300-watt motors for maximum cooling performance
  • Combined 4000 CFM airflow rating ideal for high-performance and demanding cooling applications
  • Raw aluminum shroud construction (25-5/8" W x 17-1/8" H x 4" D) fits most common radiator core sizes
  • Ultra-quiet patented skewed blade design with 7 curved blades per fan
  • Stator flow directors built into shroud optimize airflow efficiency
  • Natural non-finished aluminum can be polished, painted, or anodized for custom appearance
  • Puller configuration mounts on engine side of radiator
  • Adjustable mounting system provides precision fit with multiple mounting options
  • Complete kit includes mounting hardware and illustrated installation instructions

This dual fan assembly draws 49.6 amps total (24.8 amps per fan) at 12V operation. Each fan must be switched individually due to high amperage requirements. The compact 4-inch overall depth and adjustable design accommodate tight engine bay clearances while providing professional-grade cooling performance for street rods, muscle cars, and high-performance applications.

Products specifications

Air Conditioning Relay Included

No

Amp Draw

24.80 amps

Blade Color

Black

Blade Material

Plastic

Fan Diameter (in)

14.000 in.

Fan Quantity

Dual

Height (in)

17.125 in.

Maximum Fan CFM

4,000 cfm

Mounting Brackets Included

Yes

Number of Blades

11 blades

Quantity

Sold as a kit.

Shroud Color

Natural

Shroud Material

Aluminum

Thickness (in)

3.500 in.

Width (in)

25.625 in.

Width

25-5/8

Color

Gray/Black

Overall Depth

4

Height

17-1/8

CFM fan 1/2

2000/2000

Mounting

Adjustable

Shroud depth

2-3/4

Amp draw fan 1/2

24.8/24.8

Prop 65

Yes
