Part number: C5751-051
Competitor Pricing
Product Details

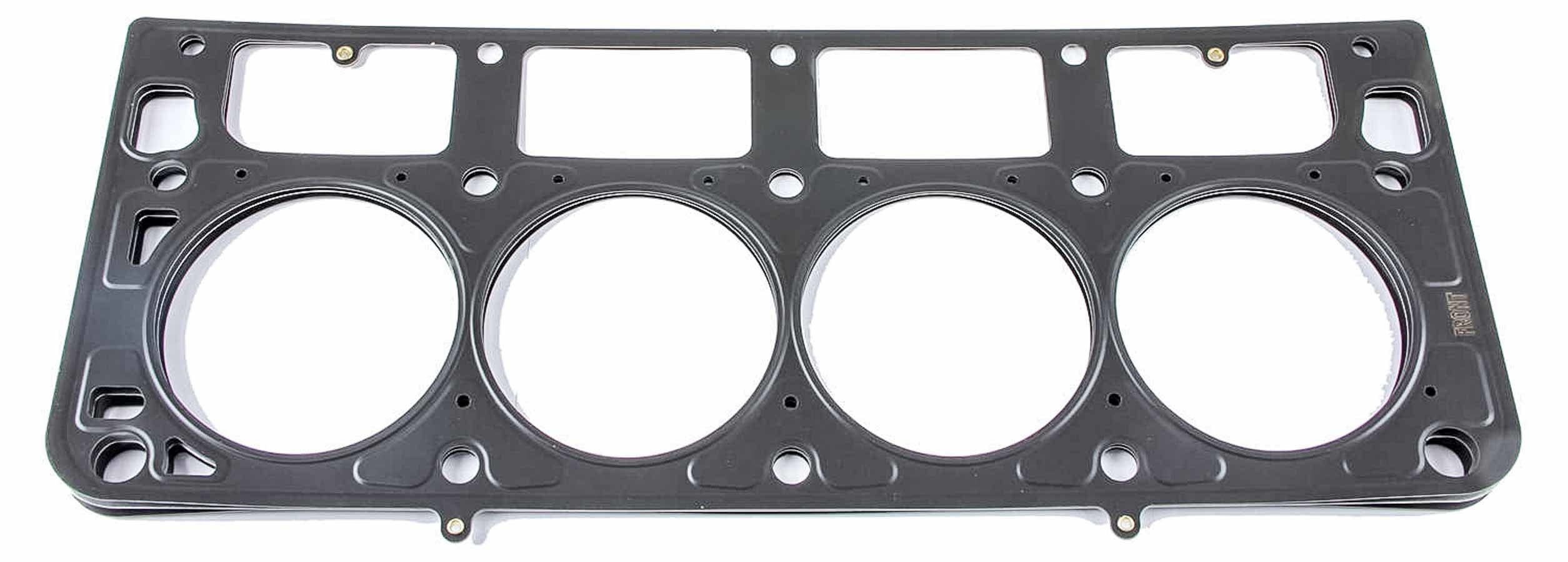

Cometic C5751-051 in our Head Gaskets Deptartment
Products specifications
Bore 4.060in
Bore (in) 4.060 in.
Bore (mm) 103.124mm
Calculator Compression Calculator
Compressed Thickness (in) 0.051 in.
Compressed Volume (cc) 8.486cc
Gasket Material Multi-layer steel
Lock Wire No
Material MLS
Quantity Sold individually.
Thickness .051in
Bore Diameter 4.060"
Engine GM Gen III/IV Small Block V8 LS Series
Head Gasket
3-Layer

Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.

MLS
The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, its ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.

The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.

The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.

CFM-20
A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.

COPPER

Reviews
Add your review
L
Lowest price I could find in the net. It was easy to order. Delivered on time. I'll buy again.
Q
Great pricing, fast shipping, A+++
S
So far so good.
T
Extremely fast shipping - shipped the next business day and I was notified via email about everything.  Also, VERY good pricing on the products AND shipping.  Thanks!
Fitment
Avanti II
2004 Avanti II Base
2003 Avanti II Base
2002 Avanti II Base
2001 Avanti II Base
Cadillac Escalade
2013 Cadillac Escalade Hybrid / Hybrid Platinum
2012 Cadillac Escalade Hybrid / Hybrid Platinum
2011 Cadillac Escalade Hybrid / Hybrid Platinum
2010 Cadillac Escalade Hybrid / Hybrid Platinum
2009 Cadillac Escalade Hybrid
2006 Cadillac Escalade Base
2005 Cadillac Escalade Base
Cadillac Escalade ESV
2006 Cadillac Escalade ESV Base
2005 Cadillac Escalade ESV Base
Cadillac Escalade EXT
2006 Cadillac Escalade EXT Base
2005 Cadillac Escalade EXT Base
Chevrolet Avalanche
2013 Chevrolet Avalanche ALL / Base / Black Diamond LS / Black Diamond LT / Black Diamond LTZ
2012 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2011 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2010 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2009 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2008 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
2007 Chevrolet Avalanche ALL / Base / LS / LT / LTZ
Chevrolet Avalanche 1500
2006 Chevrolet Avalanche 1500 Base / LS / LT / Z66 / Z71
2005 Chevrolet Avalanche 1500 Base / LS / LT / Z66 / Z71
2004 Chevrolet Avalanche 1500 Base / LS / LT / Z66 / Z71
2003 Chevrolet Avalanche 1500 Base / LS / LT / North Face / On Road Edition / WBH / WHB / Z71
2002 Chevrolet Avalanche 1500 Base / LS / LT / On Road Edition / Z71
Chevrolet Camaro
2002 Chevrolet Camaro Base / Z28 / Z28 SS
2001 Chevrolet Camaro Base / Z28 / Z28 SS
2000 Chevrolet Camaro Base / Z28 / Z28 SS
1999 Chevrolet Camaro Base / Z28 / Z28 SS
1998 Chevrolet Camaro Base / Lujo / Z28 / Z28 SS
1997 Chevrolet Camaro Base / Lujo / RS / Z28 / Z28 30th Anniversary Edition / Z28 SS 30th Anniversary Edition
Show All Vehicle Fitments
