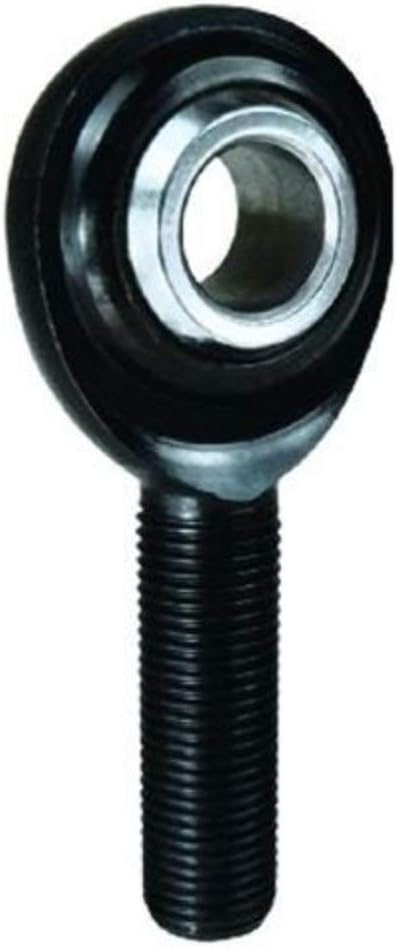

QA1 PCML10 Chromoly Steel Male Rod End 5/8" Bore

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

PCML10
6 reviews
Sale Price

$11.30

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 PCML10 is a high-performance male rod end from the PCM Series, featuring chromoly steel construction for superior strength and durability in demanding applications. This 2-piece design rod end delivers exceptional load capacity compared to traditional carbon steel alternatives, making it ideal for suspension linkages, steering systems, and chassis components.

Key Features:

  • 52100 Bearing Steel Ball: Heat treated and hard chrome plated for maximum wear resistance and precision ground for smooth operation
  • Chromoly Steel Body: Heat treated and black oxide coated for enhanced strength and corrosion protection
  • 2-Piece Economy Design: Simplified construction with ball swaged into body for reliable performance in light to medium duty applications
  • 5/8" Bore Size: Standard sizing for easy integration into existing systems
  • Male Thread Configuration: Available in right or left hand threads for versatile installation options

This rod end utilizes a traditional metal-to-metal bearing surface and is designed for applications where durability and load capacity are priorities. The black oxide coating provides corrosion resistance while maintaining a professional appearance. QA1 Precision Products manufactures these rod ends to exacting standards, ensuring consistent quality and reliable performance in racing, off-road, and high-performance street applications.

Products specifications

A (+/-0.015)

2.625

Approx Bearing Weight

0.36

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.625

D Ref

1.5

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

26

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.750 in.

Rod End Centerline Length

2.625 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.500 in.

Rod End Head Width

0.750 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

26 degrees

Rod End Static Load Capacity

18,000 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

5/8-18 LH in.

Thread Length

1.625 in.

Thread Type

Left Hand

Thread UNF-3A

5/8 -18

UTL Radical Static

18000

W (+/-0.005)

0.75

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
