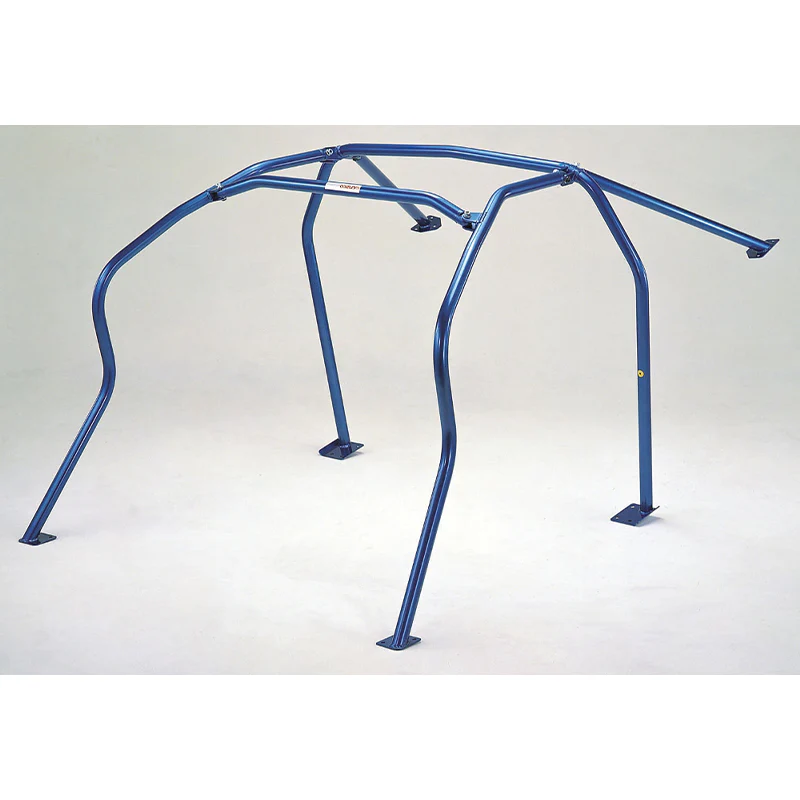

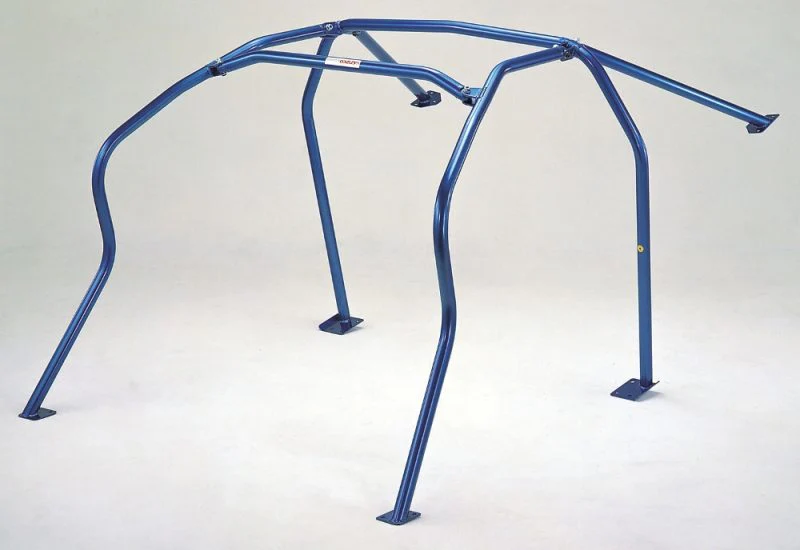

Cusco 232 261 E D1 Series 6-Point Chromoly Roll Cage with Dash Escape

The Cusco 232 261 E is a D1 Series full roll cage constructed from 40mm diameter, t=1.6 chromoly steel tubing — approximately 33% lighter than comparable all-steel Safety 21 cages. Designed as a 6-point, 2-passenger configuration with an escape dash (around-dash) front bar design, this cage delivers a meaningful balance of driver protection and chassis rigidity for sport and performance use.

Key Features:

• Chromoly Construction: 40mm OD, t=1.6 wall chromoly steel pipe throughout

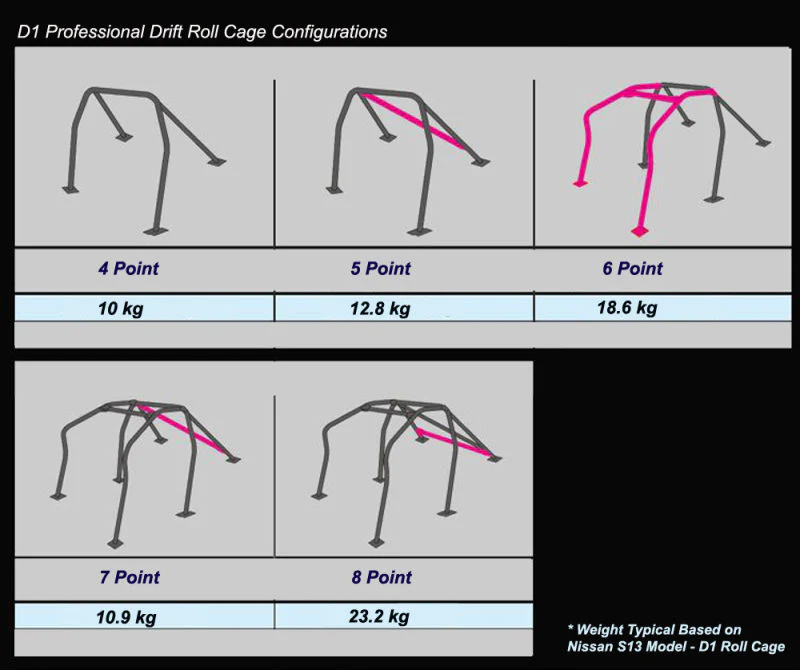

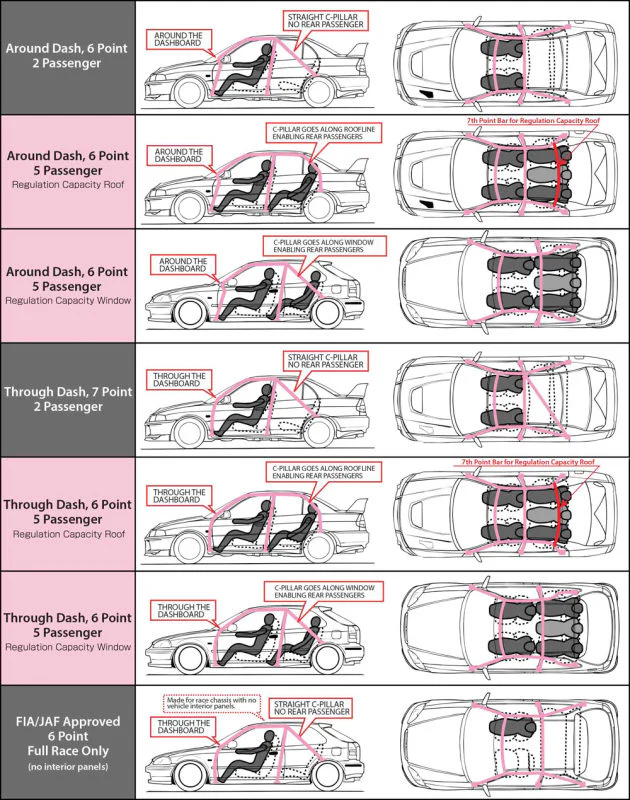

• 6-Point Architecture: Full front and rear coverage with around-dash (escape dash) front bar routing
• Lightweight Design: Approximately 33% lighter than traditional all-steel roll cage options
• High-Strength Joints: Ultra-lightweight, high-strength connection hardware to minimize added mass
• Chassis Rigidity: Improves monocoque stiffness for sharper cornering response and improved feedback
• CUSCO Blue Finish: Finished in signature Cusco blue powder coat
• 2-Passenger Configuration: Designed for driver and one passenger; rear seat use is not compatible
• Engineered for Specific Application: Designed and validated using vehicle-specific body measurement data

Important Notes:

• D1 Series chromoly roll cages may not satisfy all FIA or sanctioning body regulations — verify with your series rulebook before purchase
• 6-point and higher configurations may require minor interior modifications such as switch relocation or glove box alterations
• This is a special-order item and is non-cancellable once placed

Cusco's D1 Series roll cages are developed directly from motorsport competition experience across rally, time attack, and circuit racing disciplines, and are engineered to Cusco's strict in-house manufacturing standards.
